Control Panel ..............17 Getting Started ............. 21 Start Heating ..............24 Using Extra Functions ..........27 SMART FUNCTIONS ............31 LG ThinQ Application ........... 31 Smart Diagnosis ............33 MAINTENANCE ..............35 Maintaining the Appliance ..........35 Cleaning the Appliance ..........36 Maintaining the Filter ............
SAFETY INSTRUCTIONS READ AND SAVE THESE INSTRUCTIONS The following safety guidelines are intended to prevent unforeseen risks or damage from unsafe or incorrect operation of the appliance. The guidelines are separated into ‘WARNING’ and ‘CAUTION’ as described below. This symbol is displayed to indicate matters and operations that can cause risk.
Page 5
Children in the Household • This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
Page 6
• If you detect any abnormal noise, odor or smoke, unplug the product immediately and contact an LG Electronics Customer Information Center. • User Servicing Instructions - Only an authorized repair person from an LG Electronics service center should disassemble, repair, or modify the product.
Page 7
• This product uses UVnano LED. Do not disconnect or replace the UVnano LED arbitrarily. LEDs must be replaced only by LG-approved service providers. • Harmful UVnano radiation may leak if the device is used in an unintended way or if the wires are damaged. UVnano radiation, even in very small amounts, can harm the eyes and skin.
Page 8
• Do not replace the UV Lamp while it is plugged in. - Skin or eye damage may result from directly viewing the light produced by the lamp in this apparatus. Always disconnect power before relamping or servicing. Replace Lamp With Lamp CUD7GF1B, Manufactured by Seoul Viosys Co., LTD.
Page 9
• Do not place the appliance near a TV or stereo equipment. • Do not place the appliance under bright light. • The appliance must be installed in accordance with national wiring regulations. • When moving or storing the appliance, wrap the power cord around the base of the appliance to prevent personal injury, damage to the cord or damage to floors.
Page 10
• Do not use detergents, cosmetics, chemicals, air fresheners, or disinfectants in the appliance. • Do not touch any internal parts while the unit is operating or immediately after operation. • Use the filter only for its intended purpose. • The Deodorizing Care filter and V filter are assembled together.
INSTALLATION • The appearance or functions of the appliance may differ depending on the model. Parts Instruction Front Rear...
Page 12
Control Panel Product Center Line • Sets the product functions. • It is the center line of the product. Vane UVnano LED (Only models with UVnano applied) • Moves depending on the operating mode • Remove the harmful bacteria at (Wide Mode/ Direct Mode / internal fan of the air purifier.
Page 13
Filter System Ultra Fine Filter Deodorizing Care Filter Minimizes odors from the bathroom, cigarettes, food and other common sources. V Filter Minimizes PM1.0 and cigarette smoke from the air. Filter Handle Use it to remove the filter from the product. Ultra Fine Filter Minimizes large particles floating in the air.
Page 14
• If the surrounding odor is absorbed by the filter and the product smells while operating, it is time to replace the filter. Filter replacement costs are not covered under warranty. To purchase new filters, contact an LG Electronics Customer Information Center or visit the website at www.lg.com.
Grab the cover and gently pull to separate it from the appliances. Insert the tabs at the bottom of the • The direction with the LG logo on cover into the slots in the base of the the product display is the front of appliance and close the cover.
Removing vane vinyl The performance of the product may differ depending on the operating environment Use the product after removing the vane (such as temperature and humidity). vinyl. • Product performance may be slightly degraded when used outside of a Operating product.
OPERATION • The appearance or accessories of the product may differ depending on the model. Status Display PM10 PM10 ㎍/㎥ ㎍/㎥ 25° [Fan Mode] [Heating Mode] Add-on Display Status display • Air quality, PM10/PM2.5/ • Up to three icons are displayed PM1.0 dust concentration, odor, •...
Control Panel Standby On/Off Button NOTE Can start or stop operation. • You can use extra functions by pressing the button on the control panel Speed Button for longer than 3 seconds. (Example : Mode button and the Press the Allows you to adjust the fan speed Heating button at the same time for 3 of the product.
Page 19
Remote Controller Heating On(2 s) Heating Off(2 s) Standby On/Off button Rotation button Can start or stop operation. Sets the rotation of the product. (45°, 60°, 90°, 140°, Stop) Speed button Sleep Timer button Allows you to adjust the fan speed Sets the sleep schedule.
Page 20
Preparing to Use the Remote Insert the battery tray back into the Controller remote controller. With the front side of the remote controller facing up, remove the battery tray by pushing in the direction of number 2 while pressing part 1 with a simple tool (cotton swab, etc.).
Page 21
WARNING • The remote controller uses button/coin type batteries (CR2025). • Swallowing batteries may cause serious injury or death. Go to hospital emergency room immediately to seek medical attention. • Keep the battery out of reach of children. • If the battery tray is not secured firmly, stop using the appliance immediately and keep it away from children.
Getting Started Using the Mode Sets the operation mode of the air purifier. Press the Standby On/Off button to start operation. • Each time the Mode button is pressed during operation, the sequence of Wide Mode – Direct Mode – Diffusion Mode is NOTE repeated.
Page 23
Adjusting the Fan Speed Adjusts the fan speed of the air purifier. • Each time the Speed button is pressed during operation, it changes in the order of steps Auto ↔ 1 ~ 10 ↔ Turbo. • Press and hold the Speed button to change the fan speed in a row.
Page 24
Using Rotation • Do not forcefully rotate the product by holding it. Sets the rotation of the air purifier. • If you hold the product and force it to rotate, you will need to re-center the product. • To center the product, turn off the product, unplug the power cord, wait for a while, and then plug in the power cord again.
Start Heating NOTE Press the Standby On/Off button to start operating, and then press the Heating button to start Heating. 25° Target Temperature. 18° Current Temperature. Heating • Press the Increase Target Heating on(2 s) Temperature or Decrease Target Temperature buttons to change the Heating off(2 s) target temperature from 16 °C to 30 °C.
Page 26
• Heating auto-block function: Heating can work continuously for up to 8 hours, but it turns off automatically after 8 hours of operation. If you want to restart it, press the Heating button to restart heating. If you want to set the duration of heating to less than 8 hours, you can use the ThinQ app to set the duration from 1 to 8 hours.
Page 27
Adjusting the Fan Speed Using Rotation (Heating) (Heating) Sets the rotation of the air purifier. Adjusts the fan speed of the purifier. • Each time the Rotation button is • Each time the Speed button is pressed pressed warming, the sequence of 45°- during heating, it changes in order of 60°- 90°- 140°...
Using Extra Functions Setting standby display Displays air quality, air quality circulation, odor, temperature, humidity and operation information. • Press and hold the Heating button in the control panel. • Press the show Show Info button on the remote controller. •...
Page 29
Checking air condition on the • Temperature and humidity may appear differently depending on air Status Display circulation in the same room. Also, the temperature and humidity may You can check the overall air quality and be different from other products and dust/odor(gas) concentration on the Status thermo-hygrometers.
Page 30
Setting a Sleep Timer Setting Display Brightness It is set to automatically stop operation Adjusts display brightness. after operation for a set period of time. • Press the Sleep Timer button for more • Press the Sleep Timer button while the than 2 seconds to enter the display brightness setting screen.
Page 31
3 seconds. • The remote controller can be used even when locked. NOTE • You can use the LG ThinQ application • To disable UVnano, press the Speed to change modes even when the device down and Rotation buttons button on is locked.
SMART FUNCTIONS LG ThinQ Application Before using LG ThinQ Application The LG ThinQ application allows you to communicate with the appliance using a This feature is only available on models smartphone. with Wi-Fi function. LG ThinQ Application Features Check the distance between the appliance and the wireless router (Wi-Fi network).
Page 33
Internet service provider or refer to your wireless router manual. • LG ThinQ is not responsible for any network connection problems or any faults, malfunctions, or errors caused by network connection. • If the appliance is having trouble connecting to the Wi-Fi network, it may be too far from the router.
Wi-Fi, disconnection of Wi-Fi, app relevant documents, please visit https:// store policy, app unavailability, etc.) opensource.lge.com. that are not due to the negligence of LG LG Electronics will also provide open Electronics. source code to you on CD-ROM for a •...
Page 35
3 seconds. Place your phone near the product. • Make sure the phone’s microphone is facing the front of the product. The results of Smart Diagnosis will be displayed in the LG ThinQ application.
• The filter must be replaced at the end of its lifespan, and the cost of replacement filters is not covered under the warranty. To purchase new filters, contact an LG Electronics Customer Information Center or visit the website at www.lg.com •...
Cleaning the Appliance CAUTION • Do not clean the product with alkaline detergent. Cleaning the Exterior of the • Do not wipe the product surface using Product sulfuric acid, hydrochloric acid, or an organic solvent (thinner, kerosene, Use a vacuum cleaner to remove acetone, etc.) or attach stickers to the dust from the air inlet.
Grab both sides of the top of the remove the filter. air inlet (cover) from the front of the product and pull gently to separate it. • The direction with the LG logo on Handle the product display is the front of the product.
Page 39
Storing the Product Storing the Remote Controller If the product will not be used for a long period of time, store in a dry, shaded place without moisture. Operate the product for at least 1 hour on a sunny day. •...
TROUBLESHOOTING Before Calling for Service Please check the following before you contact the service center. If the problem persists, contact your local service center. Symptom Cause Remedy It does not Is the power cord unplugged • Insert it into the socket operate at all.
Page 41
Symptom Cause Remedy • Display status may not change when the amount of odor is greater than the product's Does the color not change ability to handle. even if it is moved to a clean The overall air room? • Remove the power cord from quality color is the outlet and reconnect after still in red.
Page 42
• Make sure that the levels of the PM1.0/PM2.5/PM10 dust The dust are displayed consistently concentration between the LG ThinQ app levels are Are you looking at the same and your product. different between type of dust particle? the product and •...
Page 43
The password for the Wi- Fi connected to your smartphone that you are trying to connect and remove it, then connect to is incorrect. your appliance in LG ThinQ. • Uncheck the ‘Automatic Mobile Data Switching’, ‘Smart Network Switching’, ‘Passpoint’, and ‘Internet The auto-connect function of Disabled’...
Page 44
Symptom Cause Remedy • Only 3 icons are displayed according to priority. I set UVnano, but Is there no indication of • Reset the UVnano by pressing the UV icon is not on the status display? the Speed down and Rotation displayed on the buttons on the control panel at status display.

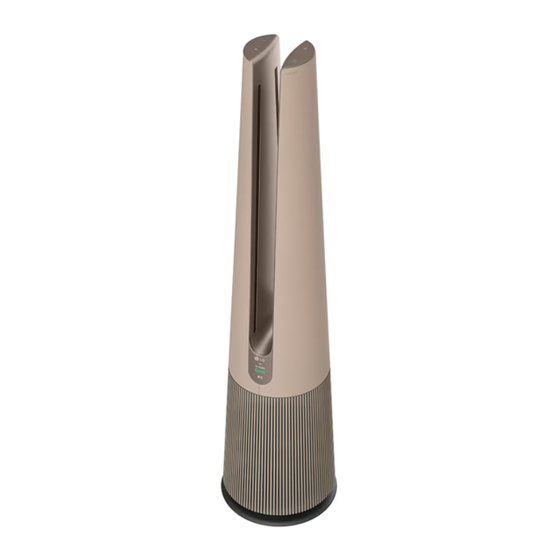

Appliance Specifications Height Width Depth The external appearance and dimensions of the product are subject to change without prior notice. Model Name FH15GP* Series Power AC 220V~ 50Hz Exterior dimensions 265 mm x 265 mm x 1,120 mm (width x depth x height)
