LIFEPAK

20/20e

DEfibrillator/MoNitor

Quick Guide for Basic Operation

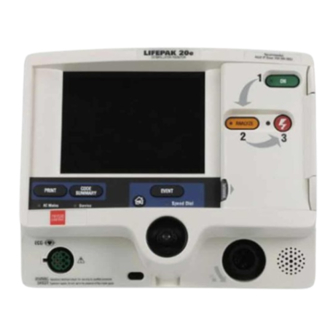

AED Operation

Confirm therapy cable is not connected to test plug before pressing

ON button.

1 Press ON.

2 Press ANALYZE

3 Press SHOCK

Note: This Quick Guide for Basic Operation of the LIFEPAK 20e

defibrillator/monitor is an abridged reference for basic unit operation.

Refer to the LIFEPAK 20e Defibrillator/Monitor Operating Instructions

for complete directions for use, indications, contraindications, warnings,

precautions and potential adverse events.

Follow audio/visual instructions.*

and stand clear.

button to discharge AED.

For LIFEPAK 20e devices equipped with a CPR Metronome, and the

Metronome is set to ON in the setup options, the CPR Metronome icon

is displayed and the Metronome sounds automatically during CPR. You

cannot enable or disable the CPR Metronome while in AED mode.

Need help?

Do you have a question about the LIFEPAK 20 and is the answer not in the manual?

Page 1 LIFEPAK 20/20e ® DEfibrillator/MoNitor Quick Guide for Basic Operation AED Operation Confirm therapy cable is not connected to test plug before pressing ON button. 1 Press ON. Follow audio/visual instructions.* 2 Press ANALYZE and stand clear. 3 Press SHOCK button to discharge AED. Note: This Quick Guide for Basic Operation of the LIFEPAK 20e For LIFEPAK 20e devices equipped with a CPR Metronome, and the defibrillator/monitor is an abridged reference for basic unit operation.
Page 2 Manual Operation Defibrillation Synchronized Cardioversion Pacing Operation • Press ON.* • Press ON. • Press ON. • Apply QUIK-COMBO • Attach ECG cable and • Attach ECG cable and apply ® apply ECG electrodes. ECG electrodes (ensure adequate therapy electrodes, or hard spacing between ECG and paddles and conductive gel. • Apply QUIK-COMBO therapy QUIK-COMBO electrodes). electrodes or hard paddles • Select ENERGY and conductive gel.
