Polycom Vortex EF2280 Applications page 19

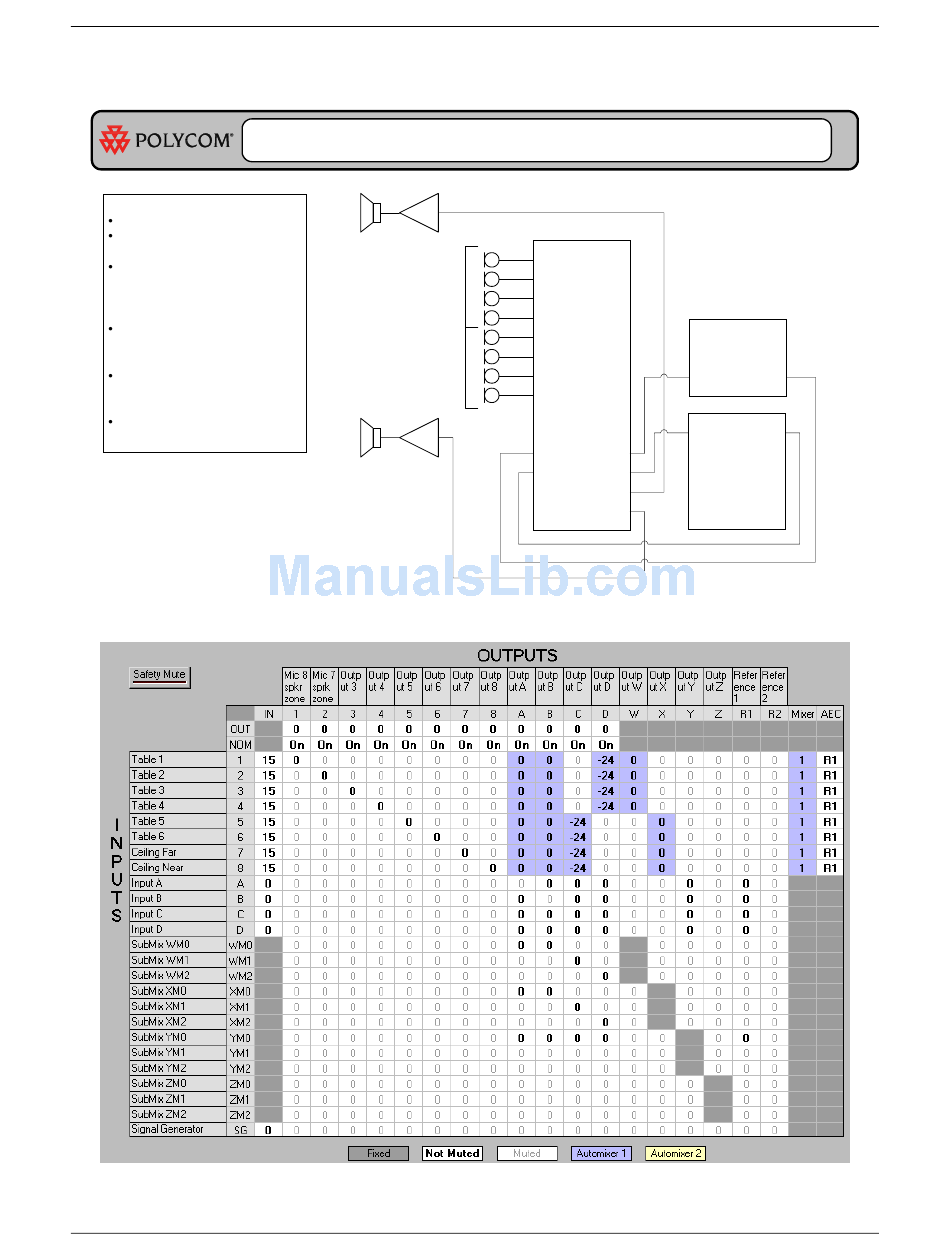

Factory Preset 6:
4 mics per Zone
Output C & D room audio per
Zone
Inputs A & B mix minus to
Outputs A & B for codec &
Phone Add
Submatrix
WM0, XM0: Mix of mics at
unity gain for codec and
Phone Add
WM1, WM2, XM1, XM2: Zone
room audio with other zones'
mics reinforced
YM0: Program audio and
remote end audio
© Polycom, Inc.
Vortex Factory Preset 6: 4 mics/Zone
Zone 1
Zone 1
Zone 2
Zone 2
In 1 Out 1
In 2 Out 2
In 3 Out 3
In 4 Out 4
In 5 Out 5
In 6 Out 6
In 7 Out 7
In 8 Out 8
Vortex ®
In A Out A
In B Out B
In C Out C
In D Out D
®
17 Vortex
P
RESETS
Video
CODEC
Line In Line Out
From AEC To AEC
From Rem. To Rem.
EF200
Phone
Applications and Presets Guide
