Program Audio
© Polycom, Inc.
Vortex Factory Preset 4: 8 mics/Zone
In 1
Out 1
In 2
Out 2
In 3
Out 3
In 4
Out 4
In 5
Out 5
In 6
Out 6
In 7
Out 7
In 8
Out 8
®
Vortex
In A
Out A
In B
Out B
In C
Out C
In D
Out D
In 1
Out 1
In 2
Out 2
In 3
Out 3
In 4
Out 4
In 5
Out 5
Out 6
In 6
In 7
Out 7
In 8
Out 8
®
Vortex
In A
Out A
In B
Out B
In C
Out C
In D
Out D
Video
CODEC
Line In
Line Out
From AEC
To AEC
From Rem.
To Rem.
EF200
Phone

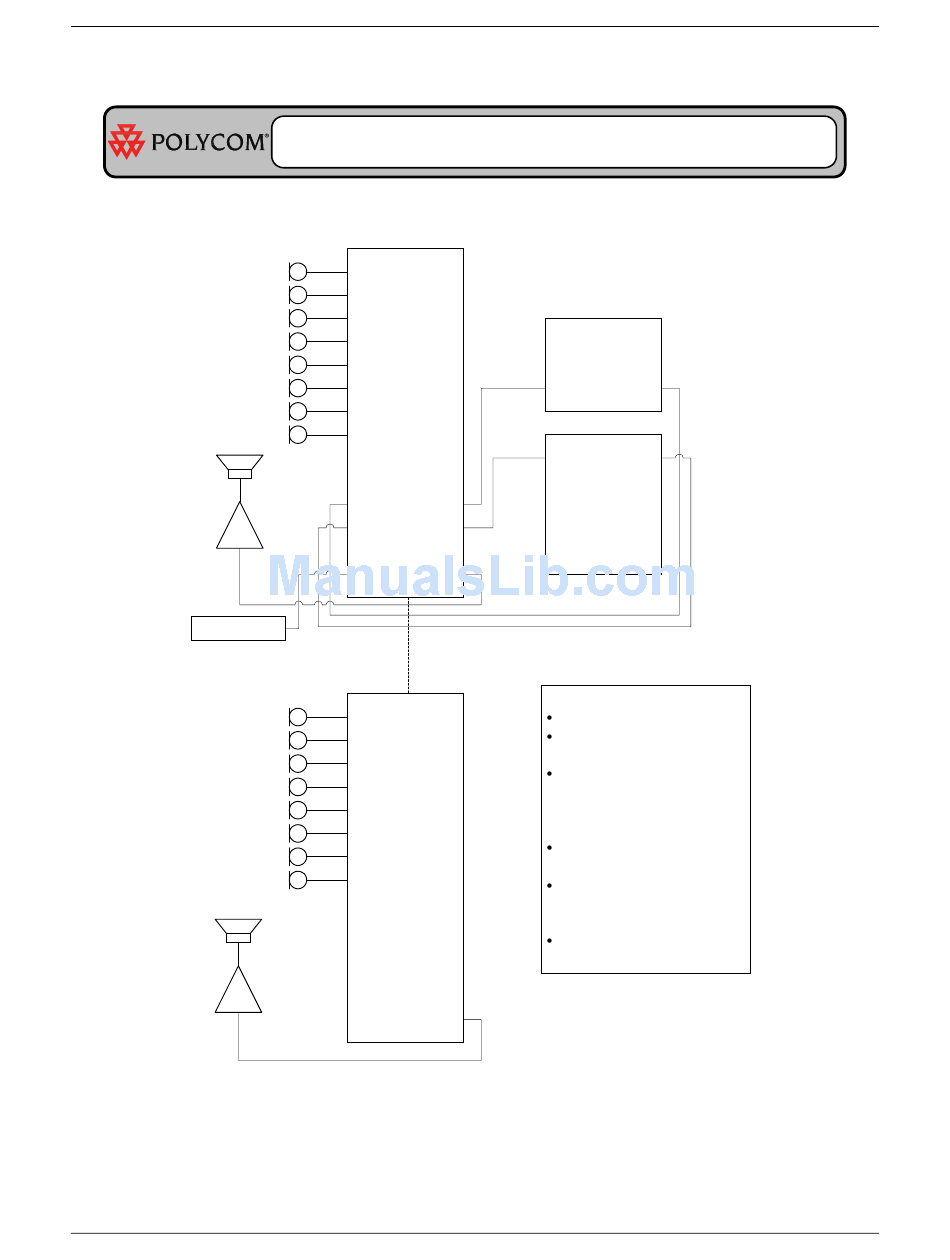

Factory Preset 4:
8 mics per Zone
Output D room audio per
Zone
Inputs A & B mix minus
to Outputs A & B for
codec & Phone Add
Submatrix
WM0: Mix of all mics for
codec and Phone Add
WM1: Zone room audio
with other zones' mics
reinforced
YM0: Program audio and
remote end audio
®
13
Vortex
P
RESETS
Applications and Presets Guide
