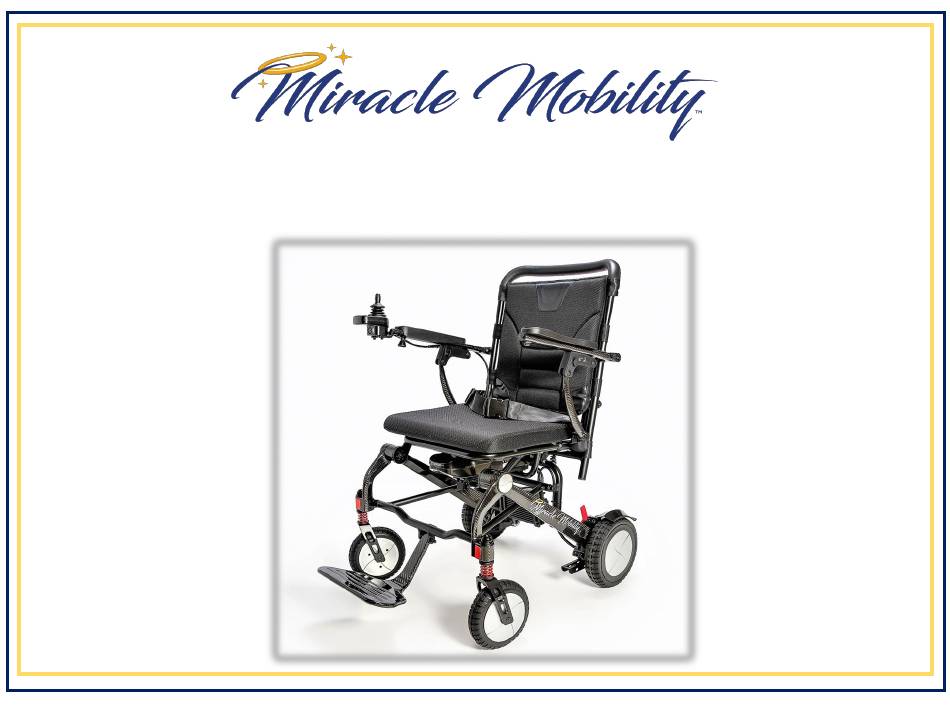

- Page 1 Carbon Fiber 9500 Folding Electric Wheelchair Owner’s Manual Model # MM-CARBON-W4...
-
Page 2: Table Of Contents
Table of Contents Welcome Chair Specifications Unpacking and Setting Up How to Unfold, Fold and Strolling the Wheelchair Transporting the Wheelchair and Lifting Armrest 10-11 Transferring onto and off of the Wheelchair Joystick 13-14 Battery Information 15-19 Electric Mode vs Manual Mode 20-21 Additional Features 22-24... -
Page 3: Welcome
Welcome Thank you for choosing the Miracle Mobility Carbon Fiber 9500 Folding Electric Wheelchair. This is Miracle Mobility’s most advance power wheelchair. Miracle Mobility is an industry leader in medical mobility. Your wheelchair is designed to provide years of use. You have taken an essential step to regain mobility, independence, and freedom. -
Page 4: Chair Specifications
Color Options Black Carbon Model # MM-CARBON-W4 Chair Specifications UPC Code 8-500121-19851-2 Motor Type Magnetic Brushless DC Motor Motor Power Rating 250 Watts x 2 (500 Watts Total) Weight Capacity 297 lbs Chair Weight w/o Battery 39 lbs Chair Weight w/Battery 43 lbs Maximum Speed 3.75 mph... - Page 6 Joystick Controls...
-
Page 7: Unpacking And Setting Up
Unpacking and Setting UP Image 1 1. Begin by taking out the wheelchair and spare parts from the shipping carton, remove packing wrap, and stand the chair upright. (see Image 1) 2. Install the joystick controller on the armrest. The joystick can be installed on the left or right hand. (see Image 2) 3. -
Page 8: How To Unfold, Fold And Strolling The Wheelchair
How To Unfold 4. To unfold the wheelchair, grasp the push bar and hold down the seat bar to separate and expand the chair to the open position (see Image 5) 5. You will hear the safety clip lock in place when the chair is fully expanded in place correctly. The chair will easily unfold like a baby stroller to a full seated position. - Page 9 How To Fold 6. Lift the safety clamp found on the back of the chair to unlock your chair and push the backrest slightly forward about 1 inch to separate the frame then release the clamp. (see image 7) Push the chair forward all the way to the ground. It will fully collapse. (see images 8) Now lift the chair (vertically) upright and it will stand by itself.
- Page 10 12. You will know if the wheelchair is in electric mode if the wheels do not turn. 13. Place chair in manual mode with the power off and the wheels will turn. 14. You can pull the Carbon Fiber 9500 wheelchair from the footrest on the rear wheels Image 10...
-
Page 11: Transporting The Wheelchair And Lifting Armrest
Transporting the Wheelchair in a Car 15. The Carbon Fiber 9500 wheelchair will fold to the size of a large suitcase. (see image 12) 16. When folded it is one of the smallest wheelchairs in the market (23” W x 12” H x 27” L) and can be easily carried (see image 13) 17. - Page 12 Lifting The Armrest 20. Notice the armrest release button on the outside of each armrest (see image 15) 21. This button is in the locked position when the armrests are down 22. You will not be able to lift the armrest when the armrest lever is in the locked position 23.
-
Page 13: Transferring Onto And Off Of The Wheelchair
Transferring to the Wheelchair Before sitting, make sure the power is OFF. If you accidently touch the joystick with the power on the wheelchair could move. Make sure the footrest is down with feet placed on the footrest while using the wheelchair. Transferring from the Wheelchair 28. -
Page 14: Joystick
The Carbon Fiber 9500 is designed to operate the chair with a zero-turn Joystick Controller radius (within its own footprint) and will detect micromovement of the joystick. The joystick is designed to provide all the information you need to safely operate your... - Page 15 Joystick Controller Practice operation in a safe and controlled environment to learn the operation of your 360-degree joystick along with the different speeds and the maneuverability of the wheelchair. (see image 19) When turning, reduce your speed, which will help you avoid any potential tilting or tipping of the wheelchair and adjust the speed depending on your environment.
- Page 16 Battery - Charging the Battery . Make sure the battery is installed correctly on the battery rail under the front seat (see image 20) 38. Make sure battery is clipped in place properly. If the battery is installed incorrectly, it will affect the function of the chair if installed incorrectly.
- Page 17 Charging The Batteries 40. The wheelchair uses a 24V10ah lithium Ion Battery. Your wheelchair will arrive with a partially charged battery. 41. The battery should allow you to drive for a distance up to 15 miles under normal operation conditions. 42.
- Page 18 Charging The Batteries (Image 24) Charger Light (see image 24) RED--battery is full drained ORANGE-- battery is charging GREEN-- battery is fully charged The Charger is an important part of your wheelchair and provides energy to your wheelchair through a safe, fast, and easy charger.
-
Page 19: Battery Information
(see image 26) 49. The Carbon Fiber 9500 is powered by a Lithium Ion Battery that is a 24V 10ah battery. (see image 27) Important Notes Image 26 50. - Page 20 55. Check the battery indicator light before each use to ensure you have the power you need. 56. Do not use a battery charger that have not been certified by Miracle Mobility. 57. If the battery is damaged, do not handle the battery without protective gloves and eyewear.
-
Page 21: Electric Mode Vs Manual Mode
Electric Mode vs Manual Mode 60. A care giver can push the power wheelchair. Both wheels of the wheelchair must be in manual mode allowing the wheels to move freely. (see image 28) 61. Turn off the power from the joystick if the chair is powered on while in manual mode. A beep will warn you to turn off the power. - Page 22 Electric Mode vs Manual Mode Troubleshooting 63. If the power is turned off and the brake levers are in electric mode, the wheels will not turn manually. 64. You will not be able to push the wheelchair if the wheels are locked in electric mode with the joystick off. 65.
-
Page 23: Additional Features
Additional Features Carbon Fiber Construction Carbon Fiber Lifting Footrest Never a Flat Tire The Carbon Fiber 9500 has a The Carbon Fiber 9500’s footrest The tires are made of a solid frame construction made of a can lift out of the way to make for polyurethane and rubber material 65% lightweight carbon fiber. - Page 24 Upgraded Embroidery Foam Front Suspension Shocks Rear Suspension Shocks Backrest Cushion The Carbon Fiber 9500 wheelchair The Carbon Fiber 9500 wheelchair is The Carbon Fiber 9500 backrest is equipped with two front equipped with two rear seat is equipped with a high-density...
- Page 25 Anti-Tipping Wheels Additional Storage drive with Left or Right Hand Anti-tipping wheels are The Carbon Fiber 9500 has two located at the back of the storage compartments one located The joystick can be mounted on the Carbon Fiber 9500 wheelchair on the back of the seat backrest.
-
Page 26: Basic Operation
Basic Operation Before operating your wheelchair, be sure to read all safety information and precautions included in this manual. Operate only in an appropriate environment. Be certain that the power is OFF before sitting in the seat of Silver Plus 6000 Wheelchair. TRANSFER ON There should be no lights on the controller and always board with a side transfer. -
Page 27: Safety Precautions
Safety Precautions Image 30 Safety First Please Do Not ✓ Do not operate in water ✓ Do not operate on stairs or escalators ✓ Do not operation while on a moving vehicle such as a bus ✓ Do not exceed the weight capacity of 297 lbs ✓... - Page 28 Safety Precautions Safety First Always ✓ Always engage the slowest speed setting when going down hill ✓ Always use the safety belt ✓ Always make sure the batteries are fully charged before setting out on a journey ✓ Always charge the power wheelchair in well ventilated areas to prevent possible risk ✓...
- Page 29 General Safety Precautions ✓ Do not lean over the front or side of the wheelchair as this can cause a tipping situation. (see images 34 & 35) Image 36 ✓ Do not transfer on/off the wheelchair from the front. This can cause a tipping situation.
- Page 30 ✓ Exceeding the weight limited is likely to damage the seat, frame or fasteners and may cause severe injury to you or others. When transporting the Carbon Fiber 9500 Wheelchair ✓ Never sit in the wheelchair while in a moving vehicle; an accident or sudden stop may cause you to be thrown from the electric wheelchair.
-
Page 31: Maintenance & Electromagnetic Interference
✓ Replacement parts and major maintenance issues should be done by a professional. Batteries ✓ Use batteries that have been supplied by Miracle Mobility; our batteries are special lithium batteries designed specifically for use in the Carbon Fiber 9500 wheelchair. -
Page 32: Warranty
Warranty ✓ The purchaser of this product is entitled to a limited warranty as offered by Miracle Mobility, and its affiliates on the following components and timeframes: ✓ Chair frame: 3 years, Motors: 2 years, Controller and CPU system: 1 year, Battery: 1 year ✓... -
Page 33: Customer Service
