Miracle Mobility Freedom Gold Series Owner's Manual

Folding electric wheelchair
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

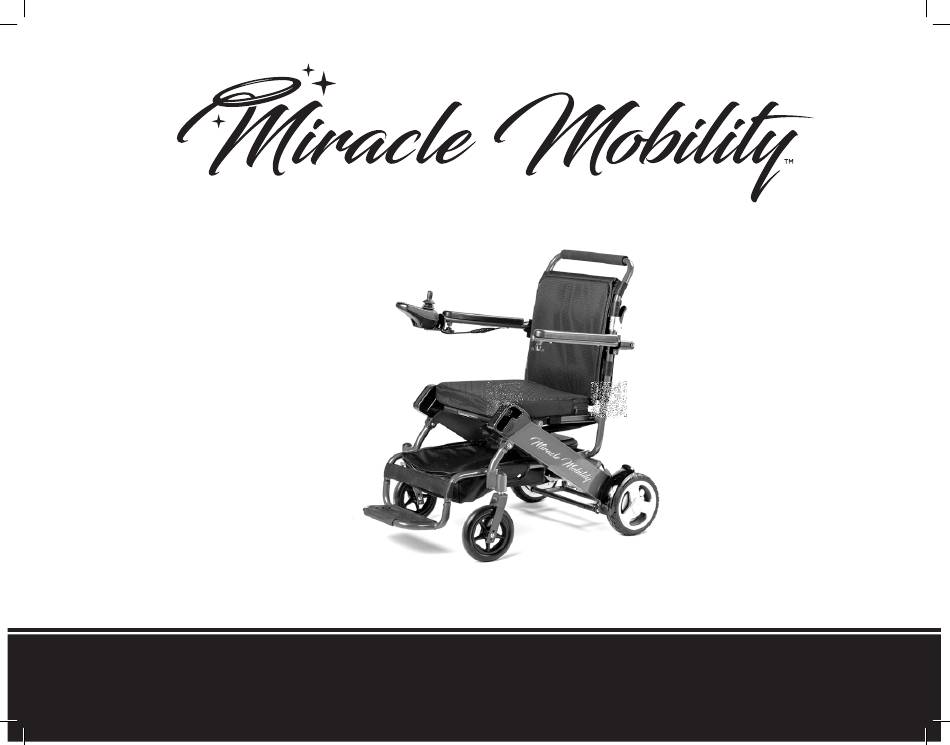

Leading Innovation in Medical Mobility
FREEDOM SERIES GOLD - W1, W2
Folding Electric Wheelchair
OWNER'S MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Freedom Gold Series and is the answer not in the manual?

Questions and answers

Related Manuals for Miracle Mobility Freedom Gold Series

Summary of Contents for Miracle Mobility Freedom Gold Series

  • Page 1 Leading Innovation in Medical Mobility FREEDOM SERIES GOLD - W1, W2 Folding Electric Wheelchair OWNER’S MANUAL...

  • Page 3: Table Of Contents

    TABLE OF CONTENTS Welcome to Miracle Mobility Product Components and Parts Product Specifications Electromagnetic Interference Precaution Safety Precautions Load Capacity Safety Belt Joystick Operation Brake Instructions Battery Instructions How to Fold / Unfold the Wheelchair Troubleshooting Limited Warranty...

  • Page 4: Welcome To Miracle Mobility

    Miracle Mobility Freedom Series Gold Electric Folding Wheelchair. If you need assistance, we have provided in-depth videos on the Miracle Mobility website at www miraclemobility com. On our website you can register your warranty as well as learn additional operating tips.

  • Page 5: Product Components And Parts

    PRODUCT COMPONENTS AND PARTS Four-Core Push Handle Joystick Cable plug Controller Backrest Backrest Collapsing Lever Seat Cushion Computer Battery Control Center Anti-tipping Storage Bag Electromagnetic Wheel Brake Switch Rear Wheel Foot Rest Front Wheel Brushless Motor...

  • Page 6: Product Specifications

    Model Description........

  • Page 7: Electromagnetic Interference Precaution

    Although the Miracle Mobility Freedom Series Gold Electric Wheelchair has a strong anti-interference rating, the owner should still abide by the following rules: 1 When the power supply is connected to the Miracle Mobility Wheelchair, please do not operate a radio transmitter, a radio receiver, a citizen’s band radio.

  • Page 8: Safety Precautions

    The Miracle Mobility Freedom Series Gold Electric Folding Wheelchair is powered by two brushless 250-watt motors, ideal for indoor and outdoor use. It is highly recommended that you do not use your Miracle Mobility Freedom Series Gold Wheelchair in the rain or snow as the electric motor is not water proof. Additionally, it is not recommended that you drive through puddles or on slippery surfaces.
  • Page 9 SAFETY PRECAUTIONS (CONT’D) The product has passed electromagnetic/RF testing resistance up to 20 V/M. The battery contains corrosive chemicals. Do not mix batteries with different capacity or battery models at the same time. DO NOT mix old and new batteries when replacing batteries.
  • Page 10 4 Please use under direct supervision until you are skilled in performing safe operations. 5 Please do not try new moves until you are able to control your Miracle Mobility Freedom Series Gold Electric Wheelchair in a safety manner.
  • Page 11 Miracle Mobility Freedom Series Gold Electric Wheelchair. 12 Never attempt to sit in the Miracle Mobility Freedom Series Gold Electric Wheelchair from the front. Always lift the armrest and sit in the wheelchair from the side.
  • Page 12 SAFETY PRECAUTIONS (CONT’D) This wheelchair cannot be used in heavy rain, snow, or icy conditions. Contact with water or excessive moisture can cause an electrical failure. The frame, motor, and other electrical wheelchair parts are not waterproof. Washing the electric wheelchair with a water hose is prohibited. If the electric wheelchair has been wet, please remove the battery as soon as possible and ensure the electric wheelchair and battery are dry before attempting to use it again.
  • Page 13 4 Make sure you fully understand the control functions of the joystick before operating. 5 While operating the Miracle Mobility Freedom Series Gold Electric Wheelchair, always keep your body upright and your center of gravity in the middle of the wheelchair.
  • Page 14 The user must realize that driving wheel chairs on the road or in the parking lot is dangerous and not recommended. For easy recognition at dusk, reflective tape has been applied to the Miracle Mobility Freedom Series Gold Electric Wheelchair. It is also recommended that the user wear reflective clothes. as shown in Photo C1.
  • Page 15 SAFETY PRECAUTIONS (CONT’D) 1 When crossing roads or navigating areas where vehicles are present, please ensure that the other drivers have noticed you. 2 Before you continue operation, make eye contact with the driver, and let the driver know your intentions. Only proceed when you are sure it is safe to do so. 3 Do not attempt to drive the electric wheelchair onto transport vehicles such as buses, subways, trains, planes, ships, etc.
  • Page 16 SAFETY PRECAUTIONS (CONT’D) • When entering and exiting the electric wheelchair, ensure the power is turned off, and the electromagnetic brake is in electric mode, as shown in Photo E1. • Raise the armrest, as shown in Photo E2. • Turn to the side of the wheelchair with the raised armrest and enter and exit from the side, as shown in Photo E3.
  • Page 17 SAFETY PRECAUTIONS (CONT’D) Practice entering and exiting your wheelchair safely. Follow the instructions of your local healthcare provider so that you can safely manage the entry and exit of your electric wheelchair safely. Make sure you move the electric wheelchair as close as possible to the location where you can safely seat yourself.
  • Page 18 SAFETY PRECAUTIONS (CONT’D) Reaching for an object or reclining in the wheelchair will affect the center of gravity and could cause the wheelchair to tip. If you must shift your weight and center of gravity, do not tilt or lean your body beyond the perimeter of the wheelchair cushion.
  • Page 19 SAFETY PRECAUTIONS (CONT’D) 1 Do not lean on the top of the seat back so as to prevent falling or damage to the push handle of the wheelchair. As shown in Figure H1. 2 To reach an object, move your electric wheelchair as close as possible to the object and maintain your center of gravity as you reach for the object.
  • Page 20 SAFETY PRECAUTIONS (CONT’D) During normal daily operation of your electric wheelchair, you will need to safely navigate around obstacles. Obstacles could include but not be limited to, elevators, ramps, holes, speed bumps, curbs, and broken pavement. Such objects can be very dangerous if you are not mindful at all times.
  • Page 21 SAFETY PRECAUTIONS (CONT’D) Driving in Reverse When navigating the electric wheelchair in reverse, extra caution is advised. If the rear wheel hits an object, you could lose control or tip the wheelchair over. When driving in reverse always use the slowest speed setting. Stop and frequently check to ensure nobody or any obstacles are in your path.

  • Page 22: Load Capacity

    LOAD CAPACITY Load Capacity 1 The maximum load capacity of this Miracle Mobility Freedom Series Gold Electric Wheelchair is 265 pounds. 2 Never exceed the load capacity as doing so can create a hazardous situation. 3 The backrest’s load capacity is a maximum of 165 lbs. of pressure. Do not press or raised up on the push handle.

  • Page 23: Safety Belt

    5 Before each use, check whether the safety belt is loose or damaged. If you find there is a problem, please contact Miracle Mobility for a replacement belt. Fasten the safety belt 1 Ensure that the safety belt is securely wrapped around the bottom of wheelchair backrest.

  • Page 24: Joystick Operation

    JOYSTICK OPERATION Joystick Controller Installation & Instructions 1 The Joystick controller can be installed on either the left or the right armrest. 2 Simply insert the joystick into the armrest tube and make sure it has been tightened using the rubber-head bolt under the armrest, as shown in Figure K1. 3 Connect the four-core plug from the joystick controller and wheelchairs computer and secure the connection, as shown in Figure K2.
  • Page 25 JOYSTICK OPERATION (CONT’D) Horn 1 Power On / Off Button Press the Power Button to turn on/off the power supply. Speed Up Power On 2 Speed Up Button Press the Speed Up Button to increase the chairs speed. Battery The maximum speed is 3.75 miles per hour. Indicator Speed Indicator 3 Slow Down Button...
  • Page 26 3 The joystick is capable of controlling the direction your wheelchair smoothly. 4 Practice will improve the your driving abilities. 5 The Miracle Mobility Electric Wheelchair is equipped with a zero turning radius and capable of turning a full 360 °s. 6 The Miracle Mobility Electric Wheelchair is easy to operate.
  • Page 27 JOYSTICK OPERATION (CONT’D) Joystick Controller Instructions 1 Press the Power Button to turn on the power supply on, then adjust the control panel to the slowest settings. 2 Move the joystick as followings: Power On Slow Forward Press the joystick forward to move forward Down Reverse Pull the joystick back to move in reverse...

  • Page 28: Brake Instructions

    3 Only adjust the speed setting with the power supply turned off. 4 The Miracle Mobility Freedom Series Gold Electric Wheelchair can be used manually or with the power on. 5 For manual operation of the wheelchair simply disengage the Intelligent Electromagnetic Brake by turning the brake switch to manual mode.
  • Page 29 BRAKE INSTRUCTIONS (CONT’D) Find the Intelligent Electromagnetic Brake switch and perform the following functions: 1 Engage the Intelligent Electromagnetic Brake to operate the wheelchair with power. This will prevent the wheels from being used in manual mode, as shown in Figure L1. 2 Disengage the Intelligent Electromagnetic Brake by moving the brake lever to manual mode.

  • Page 30: Battery Instructions

    BATTERY INSTRUCTIONS Do not use batteries with different capacity, different brands, or different battery types. Replace the batteries completely; do not mix old and new batteries together. Conductive metal or such materials cannot be used to connect the positive or negative plugs of the battery. If the connection leads to a short circuit, the battery may get an electric shock causing damage to the battery and/or wheelchair.
  • Page 31 6 If the breaker (the circuit insurance brake) is tripped several times while charging, please unplug the charger immediately and contact Miracle Mobility for a new Power Plug. 7 The Miracle Mobility Freedom Series Gold Electric Wheelchair is supplied by a Lithium Ion Battery. 8 Do not smoke or ignite a flame near the battery.
  • Page 32 BATTERY INSTRUCTIONS (CONT’D) BEFORE THE FIRST USE: IT IS VITAL THAT THE BATTERIES BE FULLY CHARGED. FAILURE TO DO SO WILL REDUCE THE LIFE OF THE BATTERIES. THE BATTERIES SHOULD BE EXHAUSTED OF POWER ON THE FIRST USE. THEN CHARGE THE BATTERIES FULLY. 1 Before using, the user should check if the power supply is fully charged.
  • Page 33 BATTERY INSTRUCTIONS (CONT’D) Important Safety Note: Please ensure the wheelchair power has been turned off before attempting to remove the batteries Installing the batteries: Failure to properly install the batteries can damage the wheelchair and batteries. Always install the batteries with the open handle facing outward.
  • Page 34 BATTERY INSTRUCTIONS (CONT’D) 1 Use the standard current (AC 110-220 V, 50-60 Hz) for charging. 2 The charging port connection is located at the front of the joystick control console, as seen in Figure N1. 3 Make sure that the power is off before charging. 4 Insert the charging connector of the charger into the charging port in front of the joystick control consul, as seen in Figure N2.
  • Page 35 BATTERY INSTRUCTIONS (CONT’D) Over-discharge Protection Device When the battery of the electric wheelchair is depleted, the battery over-discharge protection device will protect the charger for excessive discharge. It is important to note that when the over-discharge protection device is activated the maximum speed will be reduced.

  • Page 36: How To Fold / Unfold The Wheelchair

    HOW TO FOLD THE WHEELCHAIR STEPS TO FOLDING THE WHEELCHAIR 1 Shut the power off, as seen in Step 1 2 Unplug the connection cable from the joystick control consul and remove the joystick control consul from the wheel chair, as seen in Step 2 STEP 1 STEP 2 3 Rotate both armrests up,...
  • Page 37 HOW TO FOLD THE WHEELCHAIR (CONT’D) STEPS TO FOLDING THE WHEELCHAIR 5 Pull the latch cable under the backrest, seat as seen in Step 5 6 Push the leg rest and back rest together, as seen in Step 6 7 When properly closed the wheelchair will stand up on it’s own and snap shut, as seen STEP 5...
  • Page 38 HOW TO UNFOLD THE WHEELCHAIR STEPS TO UNFOLD THE WHEELCHAIR 1 Raise the backrest handle until it snaps in place, as seen in Step A 2 Unfold the footrest, and Seperate the wheelchair back rest and footrest, as seen in Step B 3 Pull the latch cable then full extend the chair until it snaps in place, as seen in Step C STEP B STEP A...
  • Page 39 HOW TO UNFOLD THE WHEELCHAIR (CONT’D) STEPS TO UNFOLD THE WHEELCHAIR 5 Rotate the arm rest to the appropriate angle, as seen in Step D 6 Install the joystick control consul and secure appropriately, as seen in Step E 7 Make the electrical connections, STEP D STEP E as seen in Step F...

  • Page 40: Troubleshooting

    TROUBLESHOOTING The Miracle Mobility computer consul is equipped with intelligent indicator lights to alert the user of possible trouble shooting solutions. Lights will flicker intermittently to provide diagnostic information. Use the table below as a reference guide for trouble shooting solutions When the light is green, it means the wheelchair is fully operational with no problems.
  • Page 41 Flicker seven times slowly Malfunction of right brake Check the right brake, connection device and power wire perhaps it is loose. Malfunction of controller Please contact Miracle Mobility for a Flicker eight times slowly replacement controller Communication error Flicker nine times slowly Check the electrical coupler.

  • Page 42: Limited Warranty

    1 Year on Wearable Parts The Miracle Mobility TM Limited Warranty on the wearable parts includes such things as fabric parts, supporting straps, arm rest pads, joystick button pads, thumb screws and knobs, and front and rear wheels. Plastic decorative parts are not covered under any warranty.
