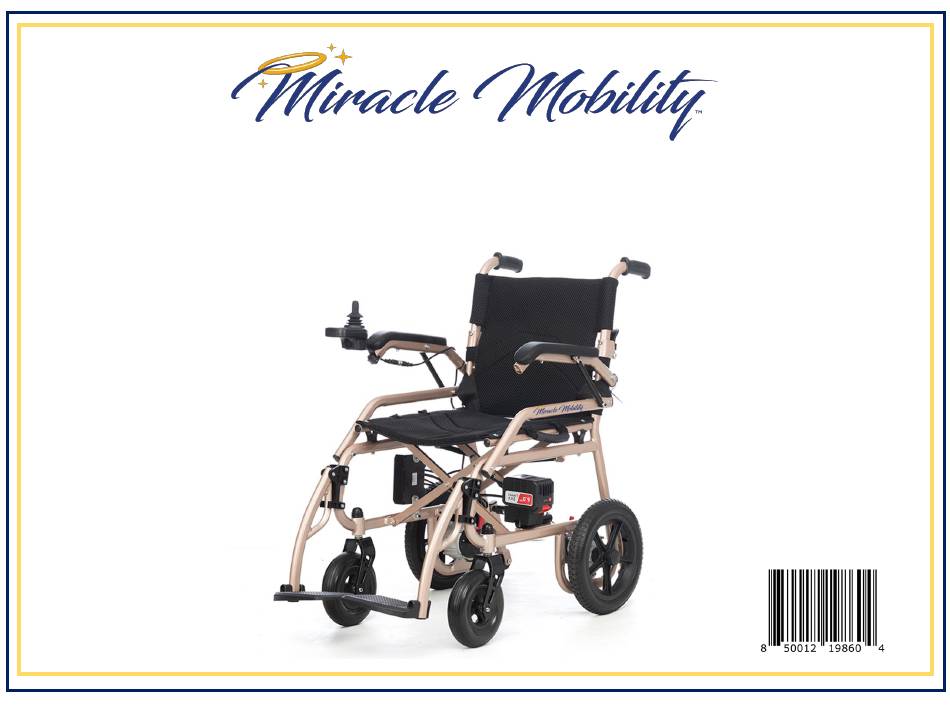

- Page 1 Falcon 5000 Ultra-Lite Folding Electric Wheelchair Owner’s Manual Model # MM-FALCON-W22...
-
Page 2: Table Of Contents
Table of Contents Welcome Chair Specifications Unpacking, Setting Up, Battery Install How to Unfold and Fold Anti-tipping Wheel, Armrests & Transferring to/from Wheelchair 10-11 Electric Mode & Manual Mode Battery & Charger 13-15 Joystick & Basic Driving 16-18 Error Codes Safety Precautions 20-21 Maintenance &... -
Page 3: Welcome
Welcome Thank you for choosing the Miracle Mobility Falcon 5000 Ultra-Lite Folding Electric Wheelchair. Miracle Mobility is an industry leader in medical mobility. Your wheelchair is designed to provide years of use. Please read this owner’s manual before attempting to operate your Wheelchair. The safety and operating instructions will help you to understand the performance and limitations of your new mobility aid. - Page 4 Chair Specifications Color Options Gold Model # MM-FALCON-W22 UPC Code 8-50012-19860-4 Motor Type Brush DC Motor Motor Power Rating 180 Watts x 2 (360 Watts Total) Weight Capacity 220 lbs Chair Weight w/o Battery 37 lbs Chair Weight w/Battery 41 lbs Maximum Speed 3.75 mph Speed Settings...
-
Page 5: Chair Specifications
Chair Specifications Lifting Armrests Push Handle 360 degree Joystick Folding Lever For Push Handles 17” W x 16” D Seat Lithium Ion Battery Lifting Leg Rest And Foot Pad 12” Rear Tires 360 Watt Motors 7” Front Tires... - Page 6 Joystick Controller Battery Indicator Light Power On/Off Speed Indicator Light Horn 5 Speed Settings Speed Up Button Speed Down Button 360-degree Joystick...
-
Page 7: Unpacking, Setting Up, Battery Install
Unpacking and Setting UP 1. Begin by unpacking the wheelchair, battery, owners' manual and charger from the shipping carton and remove packing wrap and stand the chair upright (see Image 1 & 2) and lift the back push handlebars up and legs down 2. - Page 8 Image 5 Battery Install Identify the Battery and notice the male/female connections (see Image 5) Be careful not to bend the connector prongs as this will cause the chair to malfunction) On the left side of the chair, slide the battery along battery rails into the battery connection port in the wheelchair and push battery firmly in place.
-
Page 9: How To Unfold And Fold
How To Unfold Image 7 6. Grasp each seat bar with each hand and push apart and down. (see Image 7) The chair will separate and unfold. 7). The chair transforms from folded to unfolded within seconds. (See Image 8) Grasp Seat Bars Push down the seat bars Image 8... - Page 10 How To Fold The chair can be easily folded and carried. (see image 9) Lift handles are located on the seat. (see image 10) Grasp the seat handles and pull up. This will allow the chair to fold within seconds. (see image 11) Image 9 10.
-
Page 11: Anti-Tipping Wheel, Armrests & Transferring To/From Wheelchair
Anti-Tipping Wheels Lifting Armrest & Leg Rest The leg rests will lift to help with The chair is equipped with anti-tipping wheels. transporting the chair and easy transfer (see Image 13) onto and from the chair (see Images 14) The armrest will lift out of the way for Anti-tipping wheels help prevent tipping easy transfer onto and from the chair by backwards while navigating inclines... - Page 12 Transferring Onto the Wheelchair Before sitting, make sure the Power is OFF and chair is in electric mode locking the wheels. If you accidently touch the joystick with the power on the wheelchair could move. Transfer onto the wheelchair sideways, then swing around facing forward. (see Image 16) Transferring from the Wheelchair Image 16...
-
Page 13: Electric Mode & Manual Mode
Electric Mode vs Manual Mode 25. The wheelchair can be used in manual mode allowing a caregiver to push the chair manually. 26. Switching from electric mode and manual mode can be done if the power to the chair is off and you push the red brake levers forward or backward. -
Page 14: Battery & Charger
Charging the Battery 30. Your chair is equipped with a powerful 24V 12ah lithium-ion battery (see Image 21) This battery meets FAA standards for airline travel 32. You can charge your battery from the joystick by connecting the 3-prong charger to the joystick as shown Charging time is typically 3-5 hours. - Page 15 Check the battery indicator light before each use to ensure you have the power you need Do not use a battery charger that have not been certified by Miracle Mobility If the battery is damaged, do not handle the battery without protective gloves and eyewear...
- Page 16 Charging The Batteries The wheelchair uses a 24V/12ah lithium-ion battery. Your wheelchair will arrive with a Image 23 partially charged battery The battery should allow you to drive for a distance up to 10 miles under normal operation conditions Allow your wheelchair to charge for 3-5 hours or until the light on the charger turns green (see Image 23) Continue to charge the wheelchair 1 hour...
-
Page 17: Joystick & Basic Driving
45. The joystick is designed to provide all the information Joystick Controller you need to safely operate your wheelchair. (see Image 24) also reference page 5 in your manual Image 24 46. The joystick is designed to operate the chair with a zero-turn radius (within its own footprint) and will detect micromovement of the joystick Driving... - Page 18 Joystick Controller Practice operation in a safe and controlled environment to learn the operation of your joystick along with the different speeds and the maneuverability of the wheelchair. (see Image 25) When turning, reduce your speed, which will help you avoid any potential tilting or tipping of the wheelchair and adjust the speed depending on your environment.
- Page 19 Basic Driving Before operating your wheelchair, be sure to read all safety information and precautions included in this manual. Operate only in an appropriate environment. Be certain that the power is OFF before sitting in the seat of Silver 6000 Plus Wheelchair. TRANSFER ON There should be no lights on the controller and always board with a side transfer.
-
Page 20: Error Codes
Error Codes Error Cause of Issue Solution Code When starting the wheelchair, release the rocker; If the 0001 Rocker Failure fault still appears, contact your service technition 0002 Left Mostor Hall Failure Please contact the Maintenance Staff 0004 Right Motor Hall Failure Please contact the Maintenance Staff 0008 Left Motor Overcurrent or Current Detection Fault... -
Page 21: Safety Precautions
Safety Precautions Image 26 Safety First Please Do Not ✓ Do not operate in water ✓ Do not operate on stairs or escalators ✓ Do not operation while on a moving vehicle such as a bus ✓ Do not exceed the weight capacity of 220 lbs ✓... - Page 22 General Safety Precautions Image 31 ✓ Do not lean over the front or side of the wheelchair as this can cause a tipping (see images 29 & 30) situation. ✓ Do not transfer on/off the wheelchair from the front. This can cause a tipping (see image 28) situation.
-
Page 23: Maintenance & Electromagnetic Interference
✓ Replacement parts and major maintenance issues should be done by a professional. Batteries ✓ Use batteries that have been supplied by Miracle Mobility; our batteries are special lithium batteries designed specifically for use in the Magnesium 5500 wheelchair. ✓ Read all battery instructions before attempting to change or charge batteries. -
Page 24: Warranty
Limited Warranty ✓ The purchaser of this product is entitled to a limited warranty as offered by Miracle Mobility, and its affiliates on the following components and timeframes: ✓ Chair frame: (1 year) Motors: (1 year) Controller and CPU system (1 year) Battery (1 year) ✓... -
Page 25: Customer Service
Corporate Office 13575 58 St N 201 Clearwater FL 33760 Store Location 10593 Ulmerton Rd Largo FL 33771 Website: www.miraclemobility.com Email: info@miraclemobility.com...
