Summary of Contents for Miracle Mobility Freedom Series

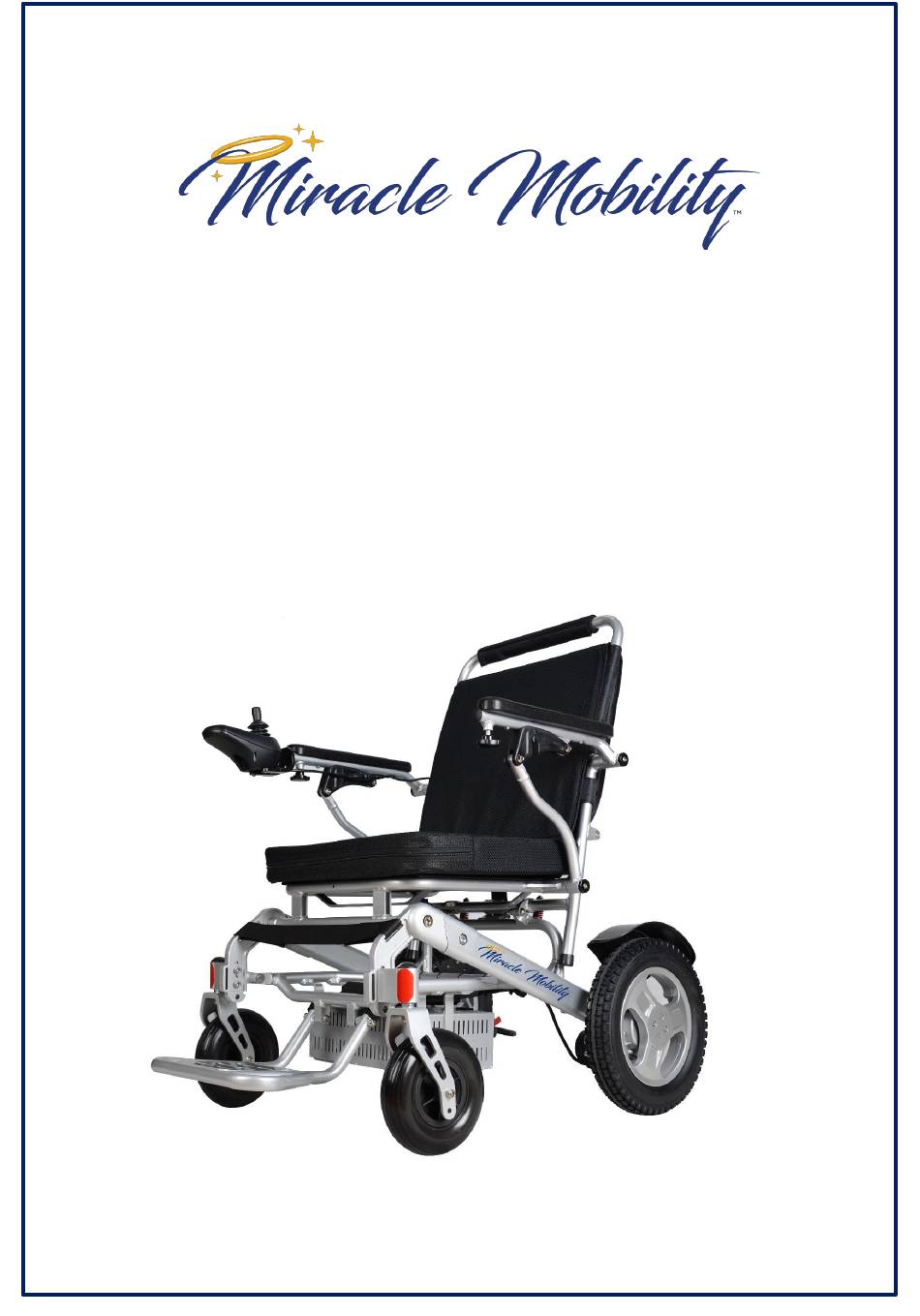

- Page 1 Freedom Series Gold XL D10 Owner’s Manual...
-
Page 2: Table Of Contents
Table of Contents Introduction ........................1 Specifications ........................2 Specification Diagram ....................... 3 Safe Operation ....................... 4-5 Warnings .......................... 5 Maintenance ........................6 Electromagnetic Interference .................... 7 Install Setup ........................7-9 Controller ........................10 Basic operation ....................... 11 Charging Batteries ..................... 11-13 Electric Mode vs Manual Mode .................. -
Page 3: Introduction
Thank you for choosing the Miracle Mobility Freedom Series Gold XL Electric Folding Wheelchair. Miracle Mobility is an industry leader in medical mobility. The Miracle Mobility Freedom Series Gold XL Electric Folding Wheelchair is an FDA approved medical device. Your wheelchair is designed to provide years of use. You have taken an essential step in regaining mobility, independence, and freedom. -
Page 4: Specifications
Specifications Silver - W1D10 Battery Type Lithium Ion Battery Battery Capacity 24V/6ah Color Options Black & White - W9D10 Batteries Per Unit 2 Batteries Silver & Pink - W8D10 Charge Time 4-6 hours MM-FSGXL-W1D10 (Silver) Joystick Controller DC24V/2A Model # MM-FSGXL-W9D10 (Black &... -
Page 5: Safe Operation
◎ General Safety: a. Adjust the Freedom Series Gold XL Wheelchair to your personal comfort level as much as possible. b. Take your time to learn how the Freedom Gold XL Wheelchair operates in a safe and private setting. This should be done before you begin operating around others. -
Page 6: Warnings
(3) Raise the armrest so that you can conveniently exit the wheelchair. (4) Carefully and safely get out of the seat. Do not exceed the weight capacity or the warranty will be voided ◎ (1) Never exceed a total weight of 330 lbs total for the rider plus items carried. (2) Exceeding the weight limited is likely to damage the seat, frame or fasteners and may cause severe injury to you or others. -
Page 7: Maintenance
Replacement parts and major maintenance issues should be done by a professional. ◎ Batteries (1) Use batteries that have been supplied by Miracle Mobility; our batteries are special lithium batteries designed specifically for use in the Freedom Gold XL Wheelchair. -
Page 8: Electromagnetic Interference
Electromagnetic Interference Powered vehicles such as the Freedom Gold XL Wheelchair may be susceptible to electromagnetic interference, which is interfering electromagnetic energy emitted from sources such as radio station, TV station, amateur radio transmitters, two-way radios, and cellular phones. The interference (from radio wave sources) can cause the Freedom Gold Wheelchair to release its brakes, move by itself, or move in unintended directions. - Page 9 Grasp push bar Sit on the chair and lean backwards to make sure the clip locker which is located below the rear of the seat is pressed together and then lock the seat in place with the clamp. This step is very important!!! 5.
- Page 10 7. Connect the batteries, using battery serial connection cable to make two batteries in series line (or you can use two batteries individually, No need to connect batteries in series line. Then tighten cable. 8. Connect batteries to the CPU which the wire comes from the wheelchair, and tighten the cable. 9.
-
Page 11: Controller
Controller The Freedom Gold XL Wheelchair is equipped with a joystick style controller. Detail functions as shown: ◎ Controller and Driving Tips 1. Take some time in a safe, controlled environment to learn the operation of your controller, the speed and the maneuverability of the wheelchair. -
Page 12: Basic Operation
Basic Operation Before operating your Freedom Gold XL Wheelchair, be sure to read all safety information and precautions included in this manual. Operate only in the appropriate environment after you have practiced operation the wheelchair and know how to work the controller. GET ON Be certain that the power is OFF before sitting in the seat of Freedom Gold XL Wheelchair. - Page 13 3. Allow your wheelchair to charge for 6-8 hours or when the light on the charger turns green, which means your batteries are full charged. 4. Should you require them, the lights and what they mean are located on the back of the charger. Back of charger Charger light: with definition...
-
Page 14: Electric Mode Vs Manual Mode
13. Check the battery indicator light daily if you use the Fold Power Wheelchair frequently. 14. Do not use any battery chargers that have not been certified by Miracle Mobility. 15. If the battery is damaged, do not handle the battery without protective gloves and eyewear. -
Page 15: Folding Your Freedom Wheelchair
Folding Your Freedom Wheelchair To transport your Freedom Gold XL Wheelchair, it is advised that you fold it following the procedures below. Note: Never transport the power wheelchair in a tie up system (electric mode), as the Freedom Gold XL Wheelchair is not compatible with them. Never sit in the wheelchair and be transported in moving vehicle. -
Page 16: Trouble Shootings
Trouble Shootings The following represents the most common questions asked about the Freedom Gold XL Wheelchair with regard to everyday use. Check this helpful guide for more information if you have any questions about using your power wheelchair. Question Possible causes Answer Why is there No Power to the 1. -
Page 17: Diagnostics
If the above method still does not help you troubleshoot, please contact Miracle Mobility. When communicating with customer service, please provide specific problems in details as much as possible. -
Page 18: Warranty
Warranty The purchaser of this product is entitled to a limited warranty as offered by Miracle Mobility, and its affiliates on the following components and timeframes: ※ Chair frame: 5 years ※ Motors: 2 years ※ Controller and CPU system: 1 year ※...
