Summary of Contents for Kuppersbusch ITE 128 Series

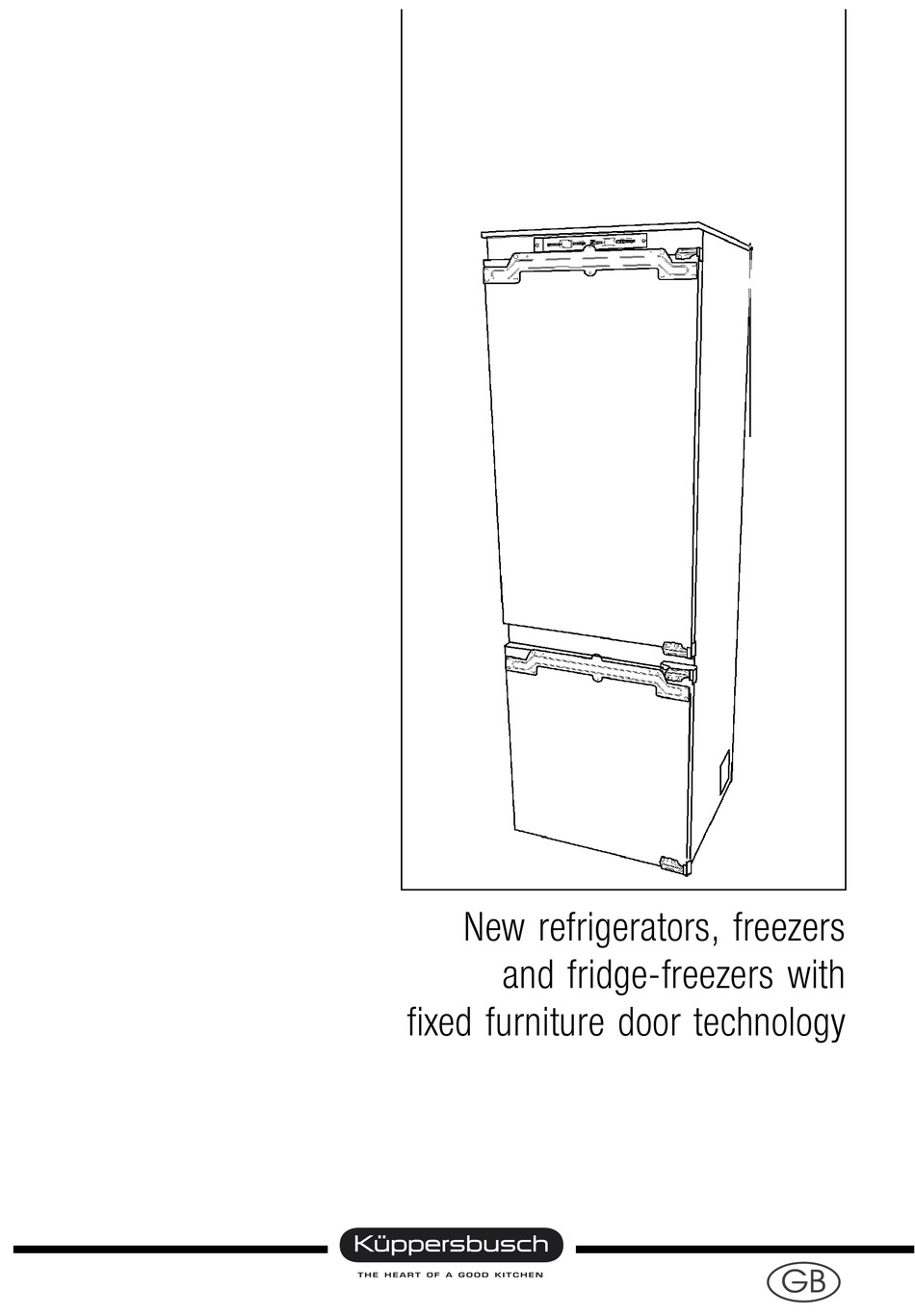

- Page 1 f} Š}~Š}ŠyŒ‡Š‹C ~Š}}’}Š‹ y†| ~Š|}D~Š}}’}Š‹ Œ€ ~}| ~Š†ŒŠ} |‡‡Š Œ}{€†‡„‡‘...
- Page 2 Service Manual: H8-74-06 Responsible: Uwe Laarmann KÜPPERSBUSCH HAUSGERÄTE AG E-mail: uwe.laarmann@kueppersbusch.de Tel.: (0209) 401-732 Kundendienst Fax: (0209) 401-743 Postfach 100 132 Date: 25.01.2005 45801 Gelsenkirchen...
-
Page 3: Table Of Contents
Service Manual Contents Safety instructions ......................4 Introduction........................5 New Door on Door installation system................. 6 Accessibility........................6 Refrigerator display ....................6 3/4 star compartment .................... 6 Operation......................... 7 Combination bi-compressor .................. 7 3/4 star compartment ..................10 Refrigerator display ..................... 11 Freezer display .................... -
Page 4: Safety Instructions
Service Manual Safety instructions Danger! Repairs should only be carried out by a qualified electrician. Repairs which are not carried out properly may put the user at risk. In order to avoid electrical shocks it is essential that the following instructions be observed: •... -
Page 5: Introduction
Service Manual Introduction This manual describes the new models of integrated built-in fridge-freezers, such as ITE 128..., IKE 188..., IKE 178..., IKE 238... or IKE 318-4-4T. This new series has the following modifications: • new width of the housing: 556 mm instead of 540 mm for the sliding door model •... -
Page 6: New Door On Door Installation System
Service Manual New Door on Door installation system The new Door on Door installation system: • easy installation • immediate installation • no checking on measurements • applicable for all types of housing The individual steps are described in the manual. -
Page 7: Operation
Service Manual Operation Combination bi-compressor The combination bi-compressor refrigerator is only illustrated with electronic controls. Buttons Display L1 = Refrigerate mains control T1 = ON/OFF refrigerator D1 = Refrigerator display (green) T2 = Increase in refrigerator temperature L2 = Rapid-cool display (yellow) D2 = Freezer T3 = Decrease in refrigerator temperature L3 = Freeze mains control... - Page 8 Service Manual Switching the freezer compressor on and off depends on the external NTC sensor (environment). 5.1.3 Superfrost function Pressing the T8 button will activate the superfrost function with which the compressor is supplied consistently for 54 hours. In order to deactivate the function, the T8 button must be pressed again before the 54 hours have lapsed.
- Page 9 Service Manual 5.1.8 Refrigerator controls The compressor is activated when both the external NTC sensor (environment) and the NTC sensor for the evaporator measure the switch-on temperature. It is switched off when the temperature measured by the external NTC sensor (environment) reaches the switch-off temperature. The interval time of the compressor may be extremely long if the room temperature is low.
-
Page 10: 3/4 Star Compartment
Service Manual 3/4 star compartment The combination bi-compressor refrigerator is only illustrated with electronic controls. Buttons T1 = ON/OFF refrigerator L1 = Refrigerate ON/OFF (green) T2 = Increase in temperature L2 = Rapid-cool function (yellow) T3 = Decrease in temperature L4 = Superfrost function (yellow) T4 = Rapid-cool function T8 = Superfrost function... -
Page 11: Refrigerator Display
Service Manual 5.2.2 Equalizing resistance with an automatic switch-on device (3/4 star compartment) The 3/4-star compartment model is equipped with an equalizing resistance device which switches on automatically if the NTC sensor (S) on the electronic module measures a room temperature of less than +24°C. -
Page 12: Freezer Display
Service Manual Freezer display The functions, buttons and LEDs are the same as those of the combination bi-compressor. Symbols “+39” – “–35” constant light: display of the average temperature in the freezer “–15” – “–24” blinking light: display while adjusting the temperature; display switches off 5 seconds after completion of setting “+39”... -
Page 13: Ntc Sensor Failure
Service Manual NTC sensor failure The NTC sensors have the following temperature resistances: 10 000 9000 8000 7000 6000 5000 4000 3000 2000 1000 –40 –30 –20 –10 Temperature (°C) The electronic unit considers abnormal resistance levels to be a sensor failure. A symbol appears on the display. -
Page 14: Ntc Sensor Properties
Service Manual NTC sensor properties Conversion chart For internal use only...
