Salamander SYNERGY 303 Instructions

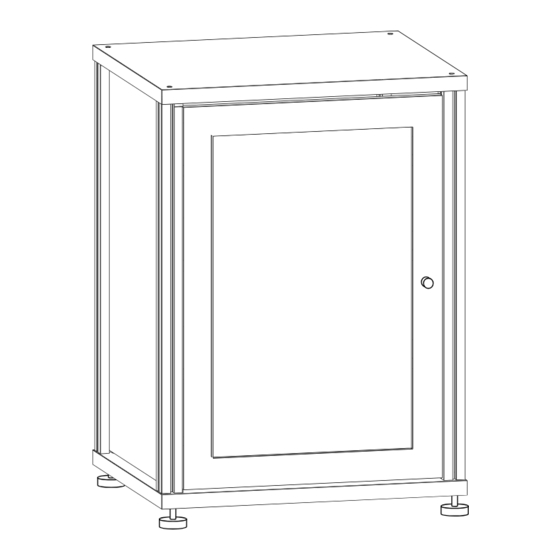

SYNERGY 303
Instructions
Includes:
(1) SU30 - Synergy Base Unit
(1) SS30 - 30" Side Panel Set
(1) SD30 - 30" Doors
Limited Warranty
For five full years Salamander Designs Ltd. will repair or replace, at our option, any product defective in materials or craftsmanship. Salamander Designs Ltd. will not be responsible for any damage to or destruction of other equipment consequential
to our equipment failure. Defective product must be given Return Authorization and is to be returned to the factory prepaid, in the original carton and packing material. Any damage incurred in a shipment not in original packaging shall be the
responsibility of the owner. Warranty repairs will be returned prepaid, via UPS within the continental U.S.A. only.
Doc No. 500-630/v6.18 ©2002 Salamander Designs Ltd.
1

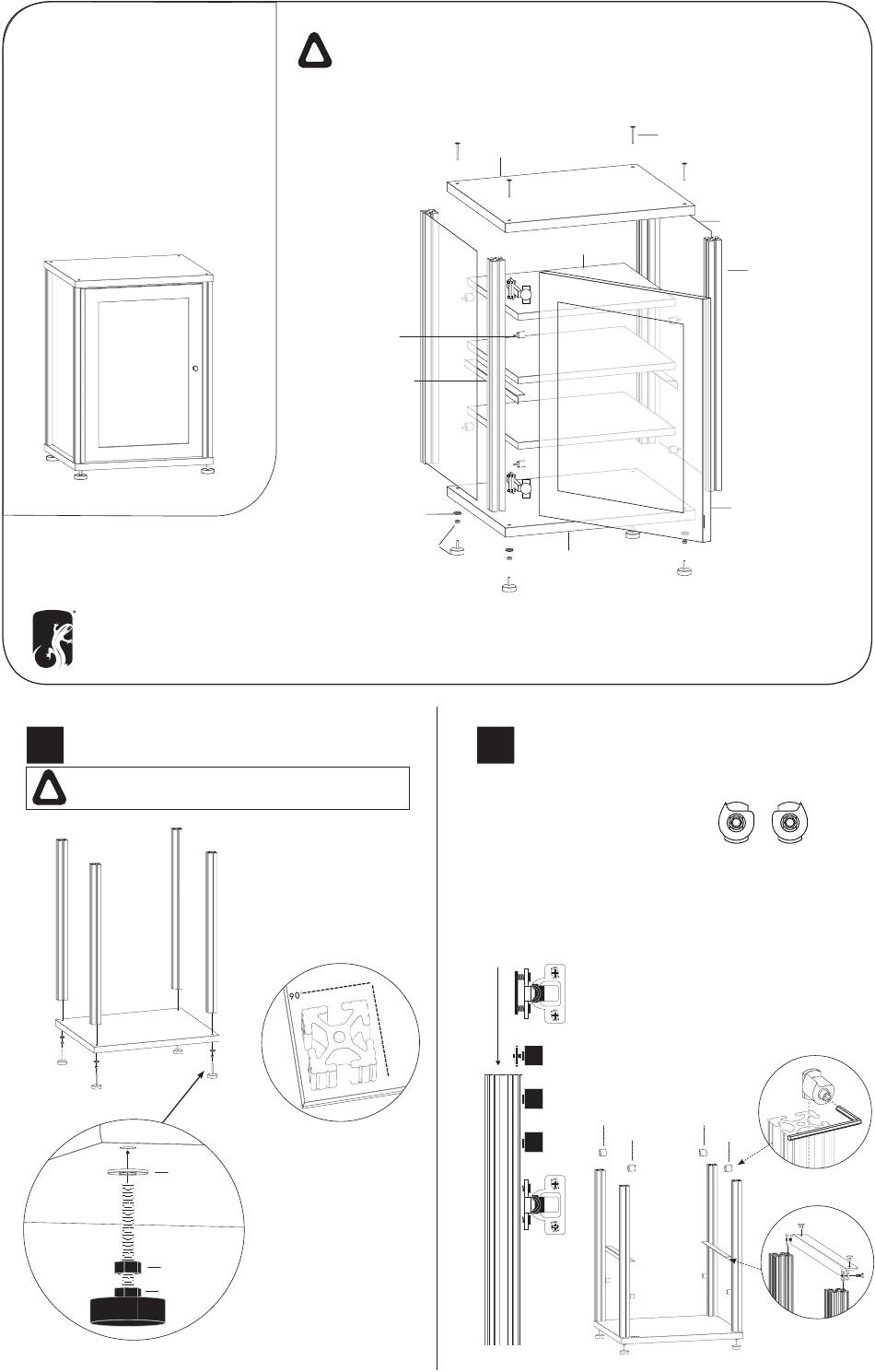

Connect Posts to Bottom Shelf

! !
WARNING: Tighten by screwing the leveler foot NOT the post.
Washer
Hex Nut
Leveler Foot

BEFORE YOU BEGIN:

! !
• Unpack all parts before beginning and refer to the drawing below.
• Shelf pegs and door hinges must slide into the channels of the post in the correct order.
They cannot be removed individually without disassembling the whole unit.
Shelf Peg
PHK-370 Right (4)
PHK-380 Left (4)
Heavy Duty Bracket (2)
Washer 300-470 (4)
Foot & Nut P-300-350 (4)
A
.
Square Post
Square the post to the bottom shelf.
B
.
Connect Post
Screw foot with metal washer
through bottom shelf and
onto the end of an extruded
post. Hand tighten fully and
use wrench on hex nut to tighten
nut onto underside of shelf.
Top Shelf (1)
Adjustable Shelf (3)
Bottom Shelf (1)
Salamander Designs Ltd. • 800-535-5659 • www.SalamanderDesigns.com
2
Add Shelf Pegs & Door Hinges
A
.
Group Shelf Pegs
There are two varieties of shelf pegs (A and B).
They are designed to cradle the shelf in place.
Refer to drawing.
B
.
Insert Hinges, Shelf Pegs & Heavy Duty Bracket
Note: The door can be either left or right side opening. Select a side to open door.
1.
bottom
2.
3.
4.
B
Joint Connector Bolt 300-540 (4)
Sides (2)
Aluminum Post (4)
Door (1)
A
Hold door above the post and slide the
hinge plate through the post channel.
Insert shelf pegs and heavy duty bracket.
Slide top hinge plate through.
Gently tighten all remaining pegs with the
hex key to desired position.
A
A B
B
Rubber Tabs
