- Page 1 OPERATING INSTRUCTIONS Translation of the original instructions DUO 3 DC / DUO 3 M DC Rotary Vane Pump...
-
Page 2: Table Of Contents
Table of contents Table of contents About this manual ..........3 1.1 Validity. -
Page 3: About This Manual
About this manual Validity This operating manual is for customers of Pfeiffer Vacuum. It describes the functioning of the designated product and provides the most important information for safe use of the unit. The description follows applicable EU guidelines. All information provided in this operating manual refers to the current state of the product's development. - Page 4 About this manual Pictographs Prohibition of an action to avoid any risk of accidents, the disregarding of which may result in serious accidents Warning of a displayed source of danger in connection with operation of the unit or equipment Command to perform an action or task associated with a source of dan- ger, the disregarding of which may result in serious accidents Important information about the product or this document ...
-
Page 5: Safety
Installation and operation of accessories Pfeiffer Vacuum pumps can be equipped with a series of adapted accessories. The in- stallation, operation and maintenance of connected devices are described in detail in the operating instructions of the individual components. -
Page 6: Protective Equipment
● Only use the vacuum pump for applications with oxygen concentration ≤ 21%. ● Installation, operating and maintenance regulations must be complied with. ● Other accessories, than those described in this manual, must not be used without the agreement of Pfeiffer Vacuum. -
Page 7: Improper Use
● use of the vacuum pump to generate pressure ● pumping of liquids ● the use of operating fluids not specified by Pfeiffer Vacuum ● connection to pumps or units which are not suitable for this purpose according to their operating instructions ●... -
Page 8: Transport And Storage
Transport and storage Transport and storage Transport Transport instructions Ensure a secure closure of the vacuum and exhaust flange during transport to prevent foreign bodies from entering the pump. Fig. 1: Pump with locking caps Storage Check that all the openings on the pump are securely closed. ... -
Page 9: Product Description
Product description Product description Product identification To correctly identify the product when communicating with Pfeiffer Vacuum, always have the information from the rating plate available. ● Pump model and model number ● Type and amount of operating fluid ● Date of manufacture Please find the voltage range and motor-related data on the separately attached motor rating plate. -
Page 10: Function

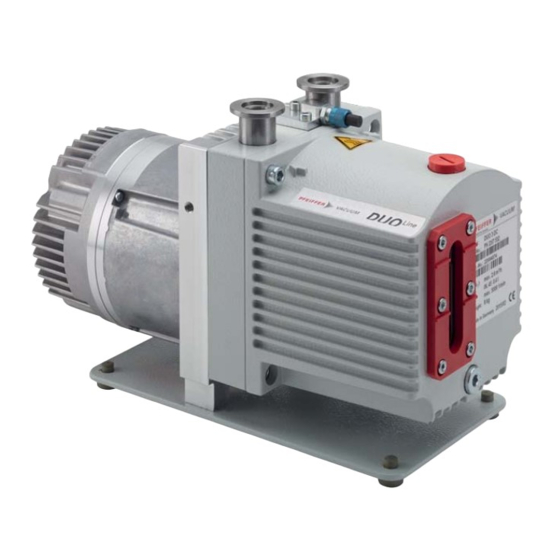

304/306 24 VDC 308/310 Fig. 3: DUO 3 DC / DUO 3 M DC Vacuum flange 318 Sight glass 306 O-ring Exhaust flange 406 Motor... -
Page 11: Installation
Installation Installation Set-up Observe the following requirements when setting up the pump: Installation location ● Consider the load-bearing capacity of the installation site. ● Maximum installation altitude 2000 m (above mean sea level) ● Permissible ambient temperature: -20 ... +40 °C ●... -
Page 12: Connecting The Exhaust Side
Installation Connecting the exhaust side CAUTION High pressure in the exhaust line! Danger of damage to the seals and danger of the pump bursting. Observe the maximum permissible pressure of 1500 hPa (absolute), activate shut- off valves in such a way that they open before or at the same time as the pump is started. - Page 13 Place OME on the exhaust side of the pump with flange pointing downwards and fit with clamping ring (accessories), pay attention to centering ring. 10/11 Fig. 5: DUO 3 DC with operating fluid return line Locking screw Spring (inside the hose) Clamping ring...
-
Page 14: Voltage Supply
NOTICE Use approved operating fluids only! The use of operating fluids that have not been approved by Pfeiffer Vacuum shall result in a limited warranty. In such cases, it is not possible to guarantee that product-specific performance data will be achieved. - Page 15 Installation Fig. 6: Filling up the operating fluid...
-
Page 16: Operation
Operation Operation Before switching on Check the operating fluid level in the sight glass. Compare the voltage information on the rating plate with the supply voltage. Check that the exhaust connection allows free flow (max. permissible pressure 1500 hPa absolute). -
Page 17: Pumping Condensable Vapours
Operation Pumping condensable vapours Should the process gases contain condensable gases, the rotary vane pump must be operated with gas ballast (i.e. with an open gas ballast valve). NOTICE Bad final vacuum and damage to the pump! Danger of condensation and corrosion due to exceeding the water vapour compatibility during operation without gas ballast or in case of insufficient supply of flushing gas. - Page 18 Operation 7.3 7.1 Fig. 8: Corrosive gas version of gas ballast valve O-ring Proportioning screw O-ring Flushing gas connection (for DN 6 mm hose) Connect flushing gas at the flushing gas connection 7.4. Set flushing gas pressure; maximum pressure 1500 hPa (absolute). –...
- Page 19 Operation Fig. 9: Assembling the solenoid valve at the gas ballast inlet Performance data of the solenoid valve 2/2 way valve closed when disconnected Supply voltage 24 V DC, +/- 10 % Power input Socket Type 2506 Threaded connection of flushing gas 1/8"...
-
Page 20: Topping Up The Operating Fluid
Operation Topping up the operating fluid If the operating fluid has reached its minimum filling level, the operating fluid must be topped up. The fluid can be topped up during operation in the final vacuum. Unscrew operating fluid filler screw 304. Filling up the operat- ... -
Page 21: Switching Off
Operation Switching off The pump can be switched off in any pressure range. Rotary vane pumps have an integrated safety valve on the intake side. If the differential pressure between the exhaust side and the intake side is 250 hPa, then the valve clos- es automatically and vents the pump when the pump is switched off. -
Page 22: Maintenance
Maintenance Maintenance Precautions WARNING Danger of injury from moving parts! After power failure or motor shutdown due to overheating, the motor may restart auto- matically. Secure the motor so that it cannot be switched on while any work is being performed on the pump. - Page 23 Certain maintenance and overhaul work should only be performed by Pfeiffer Vacuum Checklist for inspec- Service (PV). Pfeiffer Vacuum will be released from all warranty and liability claims if the tion, maintenance required, below listed, intervals are exceeded or maintenance or overhaul procedures and overhaul are not performed properly.
-
Page 24: Changing The Operating Fluid
Depending on the applications, Pfeiffer Vacuum recommends determining the ex- act service life of the operating fluid during the first year of operation. The replacement interval may vary from the guide value specified by Pfeiffer Vacuum depending on the thermal and chemical loads, and the accumulation of suspended par- ticles and condensation in the operating fluid. - Page 25 Maintenance 304/ 308/ Fig. 11: Draining the operating fluid Screw in operating fluid drain screw 308; pay attention to O-ring. Screw in operating fluid filler screw 304. Allow pump to run for a maximum of 5 seconds with the vacuum flange open. ...
-
Page 26: Decommissioning
Replace the radial shaft sealing rings and further elastomer parts. Replace bearings at pumps with anti-friction bearings. Follow the maintenance instructions and inform Pfeiffer Vacuum. Disposal Products or parts thereof (mechanical and electrical components, operating fluids, etc.) may cause environmental burden. -
Page 27: Malfunctions
Thermal protection switch has re- Detect and fix cause of overheating; allow sponded pump to cool off if necessary. Pump system dirty Clean pump; contact Pfeiffer Vacuum Ser- vice if necessary. Pump system damaged Clean and overhaul pump; contact Pfeiffer Vacuum Service if necessary. - Page 28 NOTICE Service work should be carried out by a qualified person only! Pfeiffer Vacuum is not liable for any damage to the pump resulting from work carried out improperly. Take advantage of our service training programs; additional information at www.pfei- ffer-vacuum.com.
-
Page 29: Service
The following steps are necessary to ensure a fast, smooth servicing process: Download the forms "Service Request" and "Declaration on Contamination". Fill out the "Service Request" form and send it by fax or e-mail to your Pfeiffer Vacuum service address. -
Page 30: Spare Parts
Spare parts are linked to the article no. of the pump, therefore please state all information on the rating plate when ordering spare parts. Other spare parts than those described in this manual must not be used without the agreement of Pfeiffer Vacuum. Set of radial shaft seal ring (RSSR) ●... - Page 31 Spare parts 218 216 118 120 112 114 “Z“ 92/86 1 Nm 78 66 76 82 70 80 72 2 Nm Fig. 12: Exploded view DUO 3 DC / DUO 3 M DC...
- Page 32 Spare parts Support stand Countersunk screw 208 O-ring Connection operating fluid return line Centering ring with cone strainer 210 Valve seat Cylinder head screw Locking cap 212 Valve plate O-ring O-ring 214 Compression spring Fitting 100 Pumping system, complete 216 Hydraulic valve 102 Support plate 222 Cylinder head screw Cylinder head screw...
-
Page 33: Accessories
Accessories 12 Accessories Designation Duo 3 DC, Duo 3 M DC TPS 310, mains pack for wall/standard rail fitting PM 061 342 -T Connecting plug TPS 110/180/310/400 DC out P 4723 102 SAS 16, dust separator, DN 16 ISO-KF, polyester filter PK Z60 506 KAS 16, condensate separator for pumping speeds from 1.6 to 12 m... -
Page 34: Technical Data
Technical data and dimensions 13.2 Technical data Parameter Duo 3 DC Duo 3 M DC Flange (in) DN 16 ISO-KF DN 16 ISO-KF Flange (out) DN 16 ISO-KF DN 16 ISO-KF Pumping speed 2.5 m 2.5 m Ultimate pressure with gas ballast ≤... -
Page 35: Dimensions
Technical data and dimensions 13.3 Dimensions DN 16 ISO-KF ±1 ±1 Fig. 14: DUO 3 DC DN 16 ISO-KF 86,5 ±1 ±1 Fig. 15: DUO 3 M DC... -
Page 36: Declaration Of Conformity
● Restriction of the use of certain Hazardous Substances 2011/65/EU The agent responsible for compiling the technical documentation is Mr. Sebastian Ober- beck, Pfeiffer Vacuum GmbH, Berliner Straße 43, 35614 Aßlar. DuoLine DUO 3 DC / DUO 3 M DC... - Page 38 VACUUM SOLUTIONS FROM A SINGLE SOURCE Pfeiffer Vacuum stands for innovative and custom vacuum solutions worldwide, technological perfection, competent advice and reliable service. COMPLETE RANGE OF PRODUCTS From a single component to complex systems: We are the only supplier of vacuum technology that provides a complete product portfolio.
