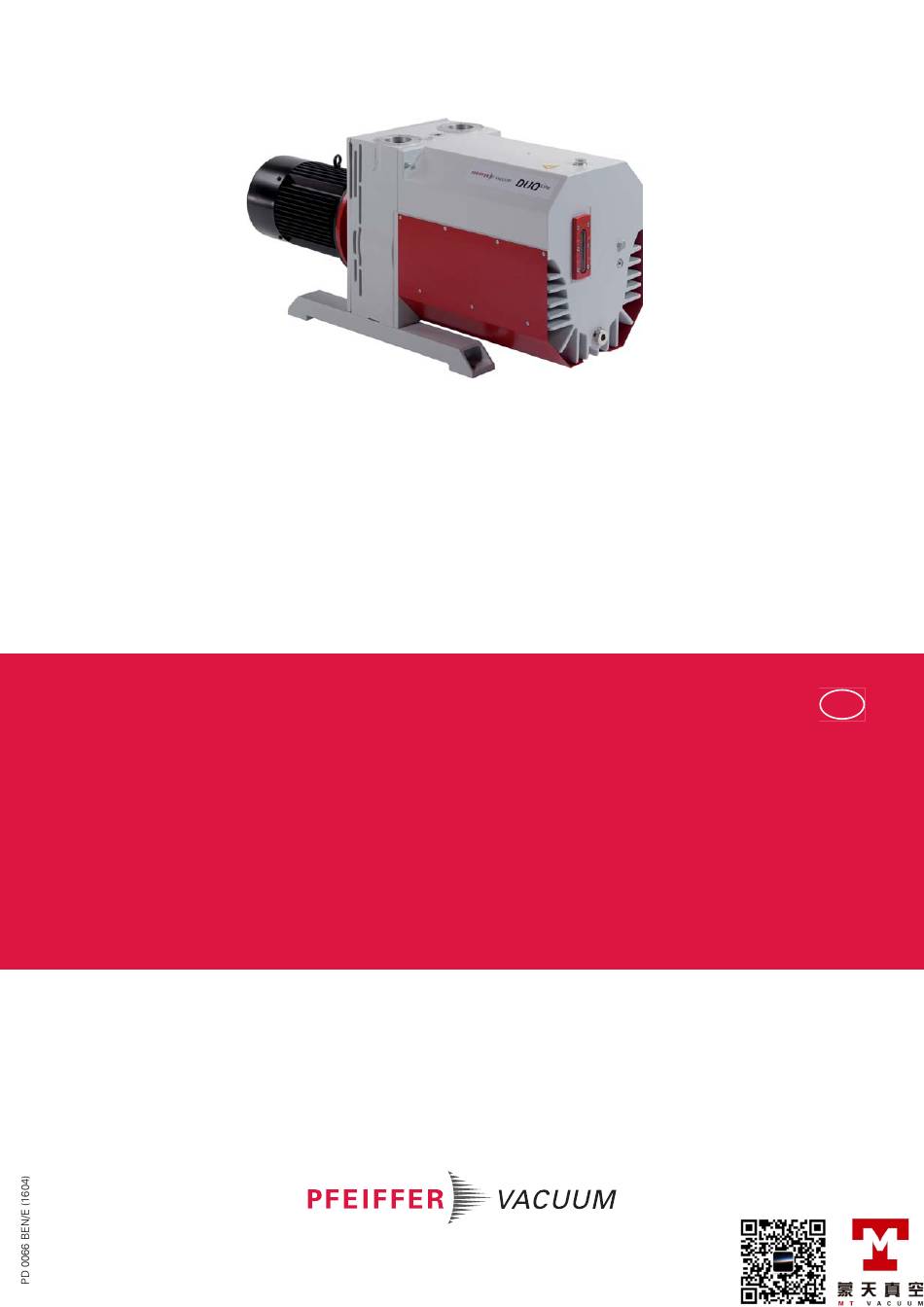

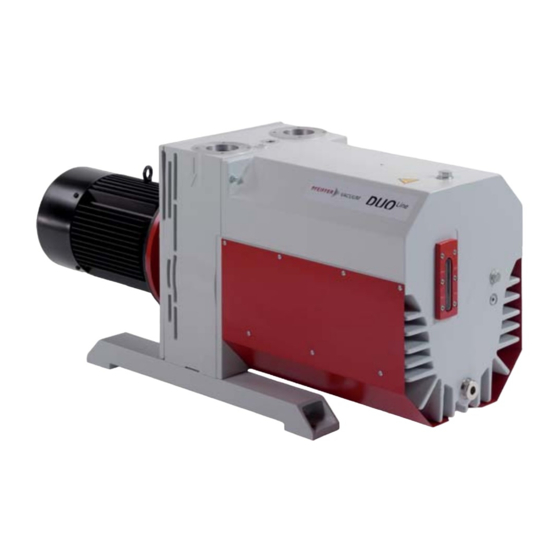

- Page 1 OPERATING INSTRUCTIONS Translation of the original instructions DUO 125, DUO 125 M Rotary Vane Pump...
-
Page 2: Table Of Contents
Table of contents Table of contents About this manual ..........3 1.1 Validity. -
Page 3: About This Manual
About this manual Validity This operating manual is for customers of Pfeiffer Vacuum. It describes the functioning of the designated product and provides the most important information for safe use of the unit. The description follows applicable EU guidelines. All information provided in this operating manual refers to the current state of the product's development. - Page 4 About this manual Pictographs Prohibition of an action to avoid any risk of accidents, the disregarding of which may result in serious accidents Warning of a displayed source of danger in connection with operation of the unit or equipment Command to perform an action or task associated with a source of dan- ger, the disregarding of which may result in serious accidents Important information about the product or this document Instructions in the...
-
Page 5: Safety
Installation and operation of accessories Pfeiffer Vacuum pumps can be equipped with a series of adapted accessories. The in- stallation, operation and maintenance of connected devices are described in detail in the operating instructions of the individual components. -
Page 6: Proper Use
● use of the vacuum pump to generate pressure ● pumping of liquids ● the use of operating fluids not specified by Pfeiffer Vacuum ● connection to pumps or units which are not suitable for this purpose according to their operating instructions ●... -
Page 7: Transport And Storage
Transport and storage Transport and storage Transport Transport instructions Remove the locking cap from the vacuum and exhaust flange immediately before con- necting! – Check the protective stainer, paying attention to the O-ring. Use only the crane eye on the top side of the pump to lift the pump. Fig. -
Page 8: Product Description
Product description Product description Product identification To correctly identify the product when communicating with Pfeiffer Vacuum, always have the information from the rating plate available and use it: ● Pump model and model number ● Serial number ● Type and amount of operating fluid ●... -
Page 9: Function
The version with magnetic coupling has as an alternative to conventional shaft feedthrough a static seal towards the outside. 15 328 321 326 Fig. 3: DUO 125 Vacuum flange Gas ballast valve Exhaust flange 321 Connection temperature sensor Support... -
Page 10: Installation
Installation Installation Setting up the pump Installation location Observe the following requirements when setting up the pump: ● Consider the load-bearing capacity of the installation site. ● Maximum installation altitude 2000 m (above mean sea level) ● Permissible ambient temperature: +12 ... 40 °C ●... -
Page 11: Connecting The Exhaust Side
Installation Connecting the exhaust side CAUTION High pressure in the exhaust line! Danger of damage to the seals and danger of the pump bursting. Install the line without shut-off valves on the exhaust side. If there is danger of a build-up of excess pressure (> 1500 hPa abs.) in the lines, ob- serve all official accident prevention safety regulations. - Page 12 Installation Three-phase motor The three-phase current motor circuit The connections U1 - L2, V1 - L1 and W1 - L3 result in a clockwise rotation of the motor shaft as seen looking towards the motor fan. Delta Connection The three coils are connected in series with the connection point connected to the mains. The voltage of each coil is the same as the mains voltage whereas the mains current is the cube root of the coil current.
- Page 13 Installation Fill up the operating fluid. Motor protection With PTC temperature sensors (3PTC) Pump motors equipped with PTC temperature sensors (3PTC) in the stator windings can be connected to a PTC resistor tripping device for protection against overload. Other ap- proved motor temperature monitoring can be used also by the operator.
-
Page 14: Filling Up The Operating Fluid
NOTICE Use approved operating fluids only! The use of operating fluids that have not been approved by Pfeiffer Vacuum shall result in a limited warranty. In such cases, it is not possible to guarantee that product-specific performance data will be achieved. -
Page 15: Operations Monitoring (Option)
Installation Operations monitoring (Option) For operations monitoring a pressure switch can be installed on the side of the support. In case of a malfunction, e. g. pressure drop or when the pump is at rest, the contact of the pressure switch opens. The signal can be used to control external valves. Parameter Oil pressure switch Protection category IP 55... -
Page 16: Operation
Operation Operation Before switching on the pump Check the operating fluid level in the sight glass. Compare the voltage and frequency information on the rating plate with the mains volt- age and frequency values. Check that the exhaust connection allows free flow (max. permissible pressure 1500 hPa absolute). -
Page 17: Pumping Condensable Vapours
Operation Pumping condensable vapours Should the process gases contain condensable gases, the rotary vane pump must be operated with gas ballast (i.e. with an open gas ballast valve). NOTICE Bad final vacuum and damage to the pump! Danger of condensation and corrosion due to exceeding the water vapour compatibility during operation without gas ballast or in case of insufficient supply of flushing gas. - Page 18 Operation NOTICE Flushing gas pressure higher than allowed endangers the operational reliability of the pump. The power input of the pump, the temperature and the ejection of operating fluid will in- crease. Observe the maximum permissible flushing gas pressure. ...
-
Page 19: Topping Up The Operating Fluid
Operation Topping up the operating fluid If the operating fluid has reached its minimum filling level, the operating fluid must be topped up. The fluid can be topped up during operation in the final vacuum. Filling up the operat- Unscrew operating fluid filler screw 330. ing fluid ... -
Page 20: Switching Off The Pump
Operation Switching off the pump The pump can be switched off in any pressure range. Rotary vane pumps have an integrated safety valve on the intake side. If the differential pressure between the exhaust side and the intake side is 250 hPa, then the valve clos- es automatically and vents the pump when the pump is switched off. -
Page 21: Maintenance
Maintenance Maintenance Precautions WARNING Danger of injury from moving parts! After power failure or motor shutdown due to overheating, the motor may restart auto- matically. Secure the motor so that it cannot be switched on while any work is being performed on the pump. - Page 22 Checklist for inspec- Certain maintenance and overhaul work should only be performed by Pfeiffer Vacuum Service (PV). Pfeiffer Vacuum will be released from all warranty and liability claims if the tion, maintenance required, below listed, intervals are exceeded or maintenance or overhaul procedures and overhaul are not performed properly.
-
Page 23: Changing The Operating Fluid
Depending on the applications, Pfeiffer Vacuum recommends determining the ex- act service life of the operating fluid during the first year of operation. The replacement interval may vary from the guide value specified by Pfeiffer Vacuum depending on the thermal and chemical loads, and the accumulation of suspended par- ticles and condensation in the operating fluid. - Page 24 Maintenance Screw in operating fluid drain screw 328; pay attention to O-ring. Screw in operating fluid filler screw 330. Allow pump to run for a maximum of 5 seconds with the vacuum flange open. Drain off remaining operating fluid. –...
-
Page 25: Changing The Kind Of Operating Fluid
Maintenance Changing the kind of operating fluid When filling up, topping up or changing the operating fluid, always use the type of oper- ating fluid indicated on the pump type plate. If, for example, amended process conditions require the use of a different operating fluid, the fluid can be changed as follows: NOTICE Changing the type of operating fluid. -
Page 26: Cleaning And Re-Setting The Silencer
Maintenance Cleaning and re-setting the silencer If the silencer is not functioning, a knocking noise becomes audible at final vacuum. This does not damage the pump, although can have a negative affect at the installation loca- tion. Dismantling 334/346 Fig. 14: Dismantle silencer Support stand Valve spindle 330 Operating fluid filler screw... -
Page 27: Changing The Gas Ballast Filter
Maintenance Changing the gas ballast filter The greater the contamination, the lower the filter air throughput and the greater the risk of condensation and corrosion within the pump. Standard version Fig. 15: Gas ballast valve (standard version) 120 Gas ballast valve (ball valve) 123 Filter insert 122 Filter housing ... -
Page 28: Assembling The Motor And Coupling
Maintenance Assembling the motor and coupling Crown gear coupling When performing installation work on the coupling, it is important to observe the instal- lation instructions of the coupling manufacturer: www.ktr.com NOTICE Damage to motor bearings Blows or pressure when mounting the coupling half can damage the motor bearings. ... - Page 29 Maintenance NOTICE Danger of bursting when the motor is removed! The separating can of the magnetic coupling is made of plastic or ceramics, and can be destroyed when the motor is pulled off. Suspend the motor at the eyebolt to the lifting device and pull it off horizontally. ...
-
Page 30: Decommissioning
Replace the radial shaft sealing rings and further elastomer parts. Replace bearings at pumps with anti-friction bearings. Follow the maintenance instructions and inform Pfeiffer Vacuum. Disposal Products or parts thereof (mechanical and electrical components, operating fluids, etc.) may cause environmental burden. -
Page 31: Malfunctions
Thermal protection switch has re- Detect and fix cause of overheating; allow sponded pump to cool off if necessary. Pump system dirty Clean pump; contact Pfeiffer Vacuum Ser- vice if necessary. Pump system damaged Clean and overhaul pump; contact Pfeiffer Vacuum Service if necessary. - Page 32 NOTICE Service work should be carried out by a qualified person only! Pfeiffer Vacuum is not liable for any damage to the pump resulting from work carried out improperly. Take advantage of our service training programs; additional information at www.pfei- ffer-vacuum.com.
-
Page 33: Service
The following steps are necessary to ensure a fast, smooth servicing process: Download the forms "Service Request" and "Declaration on Contamination". Fill out the "Service Request" form and send it by fax or e-mail to your Pfeiffer Vacuum service address. -
Page 34: Spare Parts
250, 251, 255, 256, 258, 260, 262, 263, 264, Index "B" 265, 266, 268, 269, 270 DUO 125 M PK E00 026 -T 47, 48, 99, 141, 144, 147, 242, 244, 245, 247, 248, 250, 251, 255, 256, 258, 260, 262, 263,... - Page 35 Spare parts Exploded view DUO 125, pump complete 293/ 251 250 144 145 144 143...
- Page 36 Spare parts Cover 176 Stud screw for coupling 273 Stud screw Support stand 199 Oil nozzle 284 Allen head screw 201 Oil pipe, 6 Casing 289 Allen head screw 205 Oil pipe, 6 Sealing, casing 294 Allen head screw 206 Pipe gas ballast, ...
- Page 37 295 (DUO 255 M) 293 (DUO 125 M) 142 (DUO 255 M) 143 (DUO 125 M) 301 (DUO 255 298 (DUO 125 Fig. 18: DUO 125 M with magnetic coupling Cover 192 Magnetic coupling 293 Allen head screw 140 Centering flange 193 Can...
- Page 38 Spare parts Exploded view DUO 125, pumping system Support plate Bearing cover Valve housing Set screw Valve stem Needle bearing Oil pump 242 O-ring Cover ring for needle bearing Cover, oil pump 248 O-ring Circlip for needle bearing Set screw...
-
Page 39: Accessories
293 Allen head screw Guiding piece 100 Hydraulic flange 294 Allen head screw 12 Accessories Further detailed accessories are contained in the Pfeiffer Vacuum printed or Online Cat- alogue. Designation Duo 125 Duo 125 M SAS 63 dust separator, DN 63 ISO-K, polyester filter... -
Page 40: Technical Data
Technical data 13 Technical data 13.1 General ● Recommendations of PNEUROP committee PN5 ● ISO 21360; 2007: "Vacuum technology - Standard methods for measuring vacuum- pump performance - General description" Conversion table: pressure units mbar Torr mm Hg mbar 1 · 10 0.75 1000 1 ·... -
Page 41: Technical Data
Operating fluid filling 14 l Weight 225 kg Cooling method, standard Typical ultimate pressure according to PNEUROP Parameter Duo 125 M Flange (in) DN 63 ISO-F Flange (out) DN 63 ISO-F Pumping speed at 50 Hz 115 m Pumping speed at 60 Hz... - Page 42 Technical data 13.3 Dimensions 1166 (1256 ) 711,5 14,5 G 1/2 M14 x 1,5 22,5 Ø 582,5 DN ISO 63 - F (...): DUO 125 M G 3/4 Fig. 19: DUO 125, DUO 125 M...
- Page 43 ● Electromagnetic Compatibility 2014/30/EU ● Restriction of the use of certain Hazardous Substances 2011/65/EU The agent responsible for compiling the technical documentation is Mr. Sebastian Ober- beck, Pfeiffer Vacuum GmbH, Berliner Straße 43, 35614 Aßlar. DuoLine™ DUO 125 Harmonised standards and national standards and specifications which have been ap-...
- Page 44 VACUUM SOLUTIONS FROM A SINGLE SOURCE Pfeiffer Vacuum stands for innovative and custom vacuum solutions worldwide, technological perfection, competent advice and reliable service. COMPLETE RANGE OF PRODUCTS From a single component to complex systems: We are the only supplier of vacuum technology that provides a complete product portfolio.
