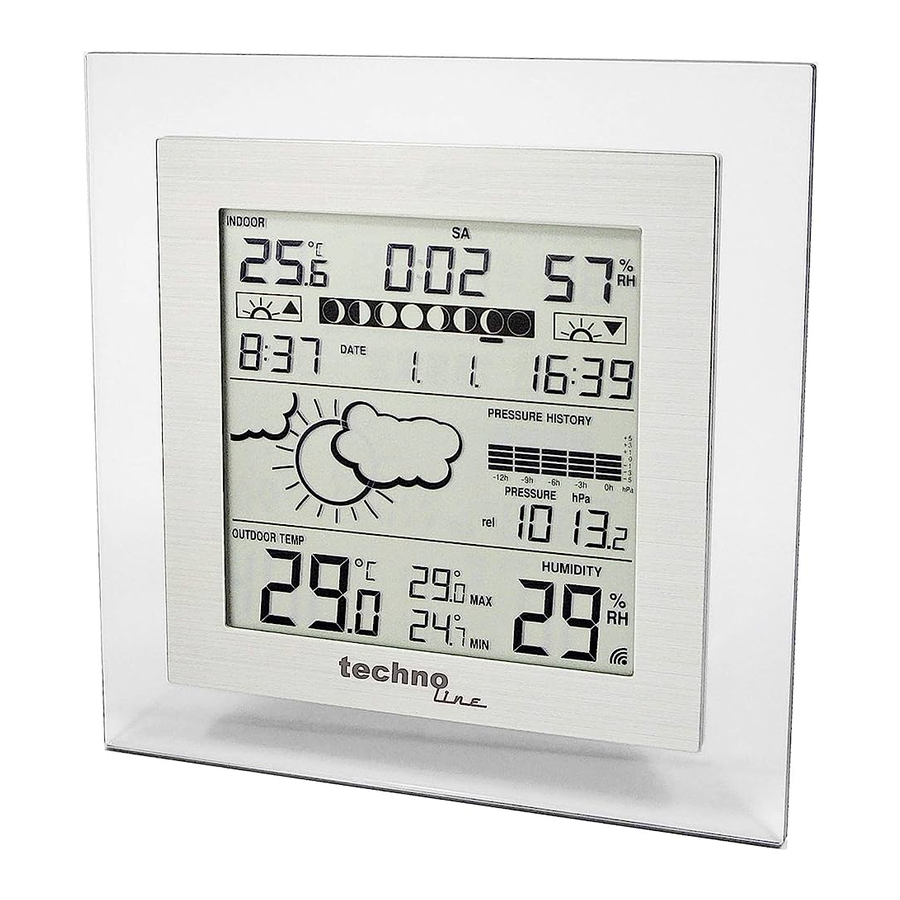

Techno Line WS 9257-IT - Weather Station Manual

INTRODUCTION

Congratulations on purchasing this state-of-the-art weather station as an example of innovative design and quality piece of engineering. Providing time, date, calendar, moon phase, sunrise/sunset time, indoor and outdoor temperature, indoor and outdoor relative humidity, and air pressure history information, this unit will never keep you guessing on current and future weather conditions. Operation of this product is simple and straightforward. By reading this operating manual, the user will receive a better understanding of the weather station together with the optimum benefit of all its features.

FEATURES

The weather station

• 24 hour time display (seconds displayed by pressing the SUN key)
• Weekday, day and month display (year in setting mode)
• Daylight saving time (DST) function selectable
• Daily alarm function
• Weather forecast with weather tendency indicator
• Temperature display in degree Celsius (°C)
• Indoor temperature display with MIN/MAX recordings
• Outdoor temperature display with MIN/MAX recordings, time and date
• All MIN/MAX temperature recordings can be reset
• Indoor and outdoor relative humidity display in RH%
• Display of relative or absolute air pressure in hPa
• Relative air pressure with adjustable reference value
• Relative air pressure history bar graph for the past 12 hours
• Display of sunrise time, sunset time and sun duration in 150 European cities
• Display 8 moon phase icons with indicator throughout the year
• LCD contrast setting
• Indoor and outdoor low battery indicators
• Table standing/wall mounting

Thermo-hygro Transmitter

• Remote transmission of outdoor temperature and humidity to weather station by 868MHz
• Wall mounting case
• Mounting at a sheltered place. Avoid direct rain and sunshine

HOW TO INSTALL AND REPLACE BATTERIES IN THE THERMO-HYGRO TRANSMITTER

The outdoor thermo-hygro transmitter uses 2 x AAA, IEC LR3, 1.5V batteries. When the batteries need to be replaced, the low battery symbol will appear on the LCD. To install and replace the batteries, please follow the steps below:

1. Remove the cover.
2. Insert batteries, observing the correct polarity (see marking).
3. Replace the battery cover on the unit.

HOW TO INSTALL AND REPLACE BATTERIES IN THE MAIN UNIT

The weather station uses 2 x C, IEC LR14, 1.5V batteries. To install and replace the batteries, please follow the steps below:

1. Remove the cover at the back of the weather station.
2. Insert batteries, observing the correct polarity (see marking).
3. Replace the compartment cover.

Note: Always wait for 2 minutes after removing the batteries before reinserting, otherwise start up and transmission problems may occur. In the event of changing batteries in any of the units, all units need to be reset by following the setting up procedures.

BATTERY CHANGE

It is recommended to replace the batteries in all units regularly to ensure optimum accuracy of these units (Battery life See Specifications below).

Please participate in the preservation of the environment. Return used batteries to an authorized depot.

SETTING UP

Note: This weather station receives only one outdoor transmitter.

1. First, insert the batteries in the transmitter (see "How to install and replace batteries in the thermohygro transmitter" above).
2. Within 30 seconds of powering up the transmitter, insert batteries in the weather station (see "How to install and replace batteries in the weather station" above). Once the batteries are in place, all segments of the LCD will light up briefly and a short signal tone will sound. Then the indoor temperature, humidity and the time as 0:00 will be displayed. If these information are not displayed on the LCD after 60 seconds, remove the batteries and wait for at least 60 seconds before reinserting them. Once the indoor data is displayed user may proceed to the next step.
3. After the batteries are inserted, the weather station will start receiving data signal from the transmitter. The outdoor temperature and humidity data should then be displayed on the weather station. If this does not happen after 2 minutes, the batteries will need to be removed from both units and reset from step 1.
4. In order to ensure successful 868 MHz transmission, the distance between the weather station and the transmitter should be within 100 meters (see notes on "Positioning" and "868 MHz Reception").

FUNCTION KEYS

Weather station:
The weather station has five easy to use function keys:

SET key

• Press and hold for 3 seconds to enter manual setting modes: LCD contrast, Daylight Saving Time ON/OFF, manual time, calendar and relative air pressure reference value
• To stop the alarm sound
• To exit alarm setting mode and country/city setting mode
• To toggle between relative and absolute air pressure display

+ key

• To increase/change values in setting modes
• To stop the alarm sound

MIN/MAX key

• To switch among the display of MIN/MAX indoor temperature and MIN/MAX outdoor temperature records
• To decrease/change values in setting modes
• At normal mode, press and hold the key for 3 seconds to reset ALL indoor/outdoor MAX/MIN temperature recordings to current readings
• To stop the alarm sound

ALARM key

• To activate/deactivate the alarm and display alarm time
• Press and hold for 3 seconds to enter the alarm setting mode
• To stop the alarm sound
• To exit manual setting mode and country/city setting mode

SUN key

• To switch among the display of date (normal mode), seconds, sun duration and city
• Press and hold for 3 seconds to enter country/city setting mode
• To stop the alarm sound
• To exit manual setting mode and alarm setting mode

LCD SCREEN

The LCD screen is split into 3 sections displaying the information for time/calendar, indoor temperature/humidity, moon phase, sunrise/sunset time, weather forecast, air pressure, and outdoor temperature/humidity.

* When the signal is successfully received by the weather station, the outdoor reception icon will be switched on. (If not successful, the icon will not be shown in LCD) So the user can easily see whether the last reception was successful (icon on) or not (icon off). On the other hand, the flashing of the icon shows that a reception is being done now.

MANUAL SETTINGS

The following settings can be changed when pressing the SET key:

• LCD contrast
• Daylight saving time (DST) ON/OFF
• Manual time
• Calendar
• Relative air pressure reference value

Press and hold the SET key for about 3 seconds to advance to the setting mode:

LCD CONTRAST SETTING

The LCD contrast can be set within 8 levels, from LCD 0 to LCD 7 (Default is LCD 3):

1. The digit starts flashing

2. Press the + key or MIN/MAX key to set the level of contrast desired.
3. Press the SET key to enter "Daylight Saving Time On/Off setting," or exit the setting mode by pressing the ALARM key or SUN key.

DAYLIGHT SAVING TIME ON/OFF SETTING

The daylight saving time (DST) function can be set ON/OFF. Default setting is "ON":

1. "ON" will flash on the LCD with "dSt" displayed.

2. Use the + key to turn the daylight saving time function ON or OFF.
3. Press the SET key to enter "Manual Time setting" or exit the setting mode by pressing the ALARM key or SUN key.

MANUAL TIME SETTING

To set the clock:

1. The hour digit will start flashing.

2. Use the + key to increase or MIN/MAX key to decrease the value. Keep holding the key allows the value to advance faster.
3. Press the SET key to enter minute setting.
4. The minute will be flashing. Use the + key to increase or MIN/MAX key to decrease the value.
5. Press the SET key to enter "Calendar Setting" or exit the setting mode by pressing the ALARM key or SUN key.

CALENDAR SETTING

1. The year digits will start flashing.

2. Use the + key to increase or MIN/MAX key to decrease the value. The range runs from 2011 to 2025.
3. Press the SET key to enter the month setting mode.
4. The month digit will be flashing. Use the + key to increase or MIN/MAX key to decrease the value.
5. Press the SET key to enter day setting, or exit the setting mode by pressing the ALARM key or SUN key.
6. The day digit will be flashing. Use the + key to increase or MIN/MAX key to decrease the value. Keep holding the key allows the value to advance faster.
7. Press the SET key to enter the "Relative Air Pressure Reference Value Setting", or exit the setting mode by pressing the ALARM key or SUN key.

Note:
The corresponding weekday is displayed above the time in short form (from Monday to Sunday): MO / TU / WE / TH / FR / SA / SU

RELATIVE AIR PRESSURE REFERENCE VALUE SETTING

The default relative pressure value is 1013 hPa (29.92 inHg). This can be manually set to another value within the range of 960 – 1040 hPa (28.35 – 30.72 inHg) for a better reference.

1. The current relative pressure value will start flashing

2. Use the + key or MIN/MAX key to increase or decrease the value. Keep holding the key will allow the value to change faster.
3. Press the SET key to exit the setting mode.

LOCATION SETTING FOR SUNRISE/SUNSET TIME

The weather station will automatically update the sunrise, sunset and sun duration time at 00:00, based on the city location, the date, time and DST settings.

1. Press and hold the SUN key for 3 seconds to enter the Location setting mode.
2. The short form of Country name will start flashing. Use the + key or MIN/MAX key to select the Country.


Note: 150 European cities can be chosen from. Every country/city is displayed in short code. See the list at the beginning of this handbook for all the country/ city codes.

3. With the desired country selected, press the SUN key to enter City setting mode.
4. The City code will start flashing. Use the + key or MIN/MAX key to select the City. Keep holding the key allows the value to advance faster.

5. Confirm with the SUN key, or exit the setting mode by pressing the SET key or ALARM key without saving the changes.
6. The city's sunrise, sun duration and sunset time will be displayed in a few seconds.

7. Press the SUN key twice to go back to normal date display.

DISPLAY OF SUN DURATION TIME

1. In normal date mode, press the SUN key twice to display the sun duration time (total number of hours of sunlight on the day).
2. Press the SUN key again will display the City selected. (See "LOCATION SETTNG FOR SUNRISE/SUNSET TIME")
3. Press the SUN key again to go back to normal date display.

ALARM SETTING

To set the daily alarm:

1. Press and hold ALARM key for 3 seconds until the alarm time shown.

2. The hour digit will be flashing. Press the + key or MIN/MAX key to adjust the hour.
3. Press ALARM key once and minute digit will be flashing. Press + key or MIN/MAX key to set the minute, or exit the setting mode by pressing the SET key or SUN key.
4. Press ALARM key once more to return to normal display.

Note: To activate/deactivate the alarm function, press the ALARM key shortly. The display of the ((())) icon represents that the alarm is "ON".

Note: The duration of alarm sounding is 2 minutes. Press any key will stop the alarm sound.

TO EXIT SETTING MODES

To exit the setting modes anytime, user can wait for automatic timeout to return to normal display.

WEATHER FORECASTING ICONS

Weather icons can be displayed in any of the following combinations:

For every sudden or significant change in the air pressure, the weather icons will update accordingly to represent the change in weather. If the icons do not change, then it means either the air pressure has not changed or the change has been too slow for the Weather station to register. However, if the icon displayed is a sun or raining cloud, there will be no change of icon if the weather gets any better (with sunny icon) or worse (with rainy icon) since the icons are already at their extremes.
The icons displayed forecasts the weather in terms of getting better or worse and not necessarily sunny or rainy as each icon indicates. For example, if the current weather is cloudy and the rainy icon is displayed, it does not mean that the product is faulty because it is not raining. It simply means that the air pressure has dropped and the weather is expected to get worse but not necessarily rainy.

Note:
After setting up, readings for weather forecasts should be disregarded for the next 12-24 hours. This will allow sufficient time for the weather station to collect air pressure data at a constant altitude and therefore result in a more accurate forecast.
Common to weather forecasting, absolute accuracy cannot be guaranteed. The weather forecasting feature is estimated to have an accuracy level of about 75% due to the varying areas the weather station has been designed for use. In areas that experience sudden changes in weather (for example from sunny to rain), the weather station will be more accurate compared to use in areas where the weather is stagnant most of the time (for example mostly sunny).
If the weather station is moved to another location significantly higher or lower than its initial standing point (for example from the ground floor to the upper floors of a house), discard the weather forecast for the next 12-24 hours. By doing this, the weather station will not mistake the new location as being a possible change in air-pressure when really it is due to the slight change of altitude.

WEATHER TENDENCY INDICATOR

Working together with the weather icons is the weather tendency indicator (located on the left of the weather icons). When the arrow points upwards, it means that the air pressure is increasing and the weather is expected to improve, but when arrow points downwards, the air pressure is dropping and the weather is expected to become worse.
Taking this into account, one can see how the weather has changed and is expected to change. For example, if the indicator is pointing downwards together with cloud and sun icons, then the last noticeable change in the weather was when it was sunny (the sun icon only). Therefore, the next change in the weather will be cloud with rain icons since the indicator is pointing downwards.

Note: Once the weather tendency indicator has registered a change in air pressure, it will remain permanently visualized on the LCD.

AIR PRESSURE HISTORY (ELECTRONIC BAROMETER WITH BAROMETRIC PRESSURE TREND)

The right side of the second section of the LCD shows the air pressure history bar graph.

The bar graph indicates the air pressure history trend over the last 12 hours in 5 intervals: 0h, -3h, -6h, -9h and -12h. The "0h" represents the current full hour air pressure recording. The columns represent the "hPa" (0, ±1, ±3, ±5) at specific time. The "0" in the middle of this scale is equal to the current pressure and each change (±1, ±3, ±5) represents how high or low in "hPa" the past pressure was compared to the current pressure.
If the bars are rising it means that the weather is getting better due to the increase of air pressure. If the bars go down, it means the air pressure has dropped and the weather is expected to get worse from the present time "0h".

Note:
For accurate barometric pressure trends, the weather station should operate at the same altitude for recordings (i.e. it should not be moved from the ground to the second floor of the house). When the unit is moved to a new location, discard readings for the next 12 hours.

ABSOLUTE/RELATIVE AIR PRESSURE

Press the SET key to toggle between relative ("rel") and absolute ("abs") air pressure displays.

Note:
Absolute air pressure provides the display of the true measured air pressure of the current time and location. This is not programmable and the absolute air pressure range of the weather station is from 300 hPa to 1099 hPa (standard air pressure at an altitude of 9,100 meters is around 300 hPa).

Relative air pressure is the one value that is calculated back to sea level from the local absolute air pressure and can thus be taken as a reference for weather condition and weather development for the entire country. It can be programmed to represent your local surroundings. Since the relative air pressure is also the one value given by various newspapers, TV and radio broadcasting stations in their daily weather forecasts for their respective locations, users can set the relative air pressure of the weather station to this value to represent readings in your area (see "Relative Air Pressure Reference Value Setting" above)

INDOOR TEMPERATURE/HUMIDITY DATA

The indoor temperature and humidity data are automatically updated and displayed on the first section of the LCD.

OUTDOOR TEMPERATURE/HUMIDITY DATA

The last LCD section shows the outdoor temperature, MIN/MAX temperature records, humidity and the signal reception indicator.

TO VIEW THE MIN/MAX TEMPERATURE DATA

Press the MIN/MAX key several times to view the MIN/MAX indoor and outdoor temperature sequentially.
Note: the outdoor MIN/MAX temperature records will also display the recorded time and date

RESETTING THE MAXIMUM/MINIMUM RECORDS

In normal display mode, press and hold the MIN/MAX key for 3 seconds. This will reset ALL minimum and maximum temperature records to current temperatures.

THE MOON PHASE ICONS

The weather station displays 8 different moon phase icons. The current moon phase is indicated with a bar segment according to the set calendar.

LOW BATTERY INDICATORS

Low battery indicator will show on the LCD when the batteries of weather station or transmitter require changing.

THERMO-HYGRO TRANSMITTER

The reception distance of the thermo-hygro transmitter may be affected by the temperature. At cold temperatures the transmitting distance may be decreased. Please bear this in mind when placing the transmitter. Also the batteries may be reduced in power for the thermo-hygro transmitter.

868 MHz RECEPTION

The weather station should receive the temperature data within 2 minutes after set-up. If the temperature data is not received 2 minutes after setting up (the outdoor temperature shows " --.- "), please check the following points:

1. The distance of the weather station or transmitter should be at least 1.5 to 2 meters away from any interfering sources such as computer monitors or TV sets.
2. Avoid positioning the weather station onto or in the immediate proximity of metal window frames.
3. Using other electrical products such as headphones or speakers operating on the same signal frequency (868 MHz) may prevent correct signal transmission and reception.
4. Neighbors using electrical devices operating on the 868 MHz signal frequency can also cause interference.

Note:
When the 868 MHz signal is received correctly, do not re-open the battery cover of either the transmitter or weather station, as the batteries may spring free from the contacts and force a false reset. Should this happen accidentally then reset all units (see Setting up above) otherwise transmission problems may occur.
The transmission range is about 100 m from the transmitter to the weather station (in open space). However, this depends on the surrounding environment and interference levels. If no reception is possible despite the observation of these factors, all system units have to be reset (see Setting up).

POSITIONING THE MAIN UNIT

The weather station provides the option of table standing or wall mounting. Before wall mounting, please check that the outdoor data can be received from the desired locations.

To wall mount:

1. Fix a screw (not supplied) into the desired wall, leaving the head extended out by about 5mm.
2. Place the weather station onto the screw, using the hanging hole on the backside. Gently pull the weather station down to lock the screw into place.


Foldout table stand:
The foldout table stand leg is located on the backside. Pull the stand out from the bottom center edge of the weather station, below the battery compartment. Once the foldout table stand is extended, place the weather station in an appropriate location.

POSITIONING THE THERMO-HYGRO TRANSMITTER

Mounting at a sheltered place. Avoid direct rain and sunshine.
The thermo-hygro transmitter can be placed onto any flat surface or wall mount using the bracket which doubles as a stand or wall mount base.

To wall mount:

1. Secure the bracket onto a desired wall using the screws and plastic anchors.
2. Clip the transmitter onto the bracket.

Note:
Before permanently fixing the thermo-hygro to the wall base, pace all units in the desired locations to check that the outdoor temperature and humidity readings are receivable. In event that the signal is not received, relocate the thermo-hygro transmitter or the weather station slightly as this may help the signal reception.

CARE AND MAINTENANCE

• Extreme temperatures, vibration and shock should be avoided as these may cause damage to the unit and give inaccurate forecasts and readings.
• When cleaning the display and casings, use a soft damp cloth only. Do not use solvents or scouring agents as they may mark the LCD and casings.
• Do not submerge the unit in water.
• Immediately remove all low powered batteries to avoid leakage and damage. Replace only with new batteries of the recommended type.
• Do not make any repair attempts to the unit. Return them to their original point of purchase for repair by a qualified engineer. Opening and tampering with the unit may invalidate their guarantee.
• Do not expose the units to extreme and sudden temperature changes, this may lead to rapid changes in forecasts and readings and thereby reduce their accuracy.

SPECIFICATIONS

LIABILITY DISCLAIMER

• The electrical and electronic wastes contain hazardous substances. Disposal of electronic waste in wild country and/or in unauthorized grounds strongly damages the environment.
• Please contact your local and/or regional authorities to retrieve the addresses of legal dumping grounds with selective collection.
• All electronic instruments must from now on be recycled. User shall take an active part in the reuse, recycling and recovery of the electrical and electronic waste.
• The unrestricted disposal of electronic waste may do harm on public health and the quality of environment.  As stated on the gift box and labeled on the product, reading the "User manual" is highly recommended for the benefit of the user. This product must however not be thrown in general rubbish collection points.
• The manufacturer and supplier cannot accept any responsibility for any incorrect readings and any consequences that occur should an inaccurate reading take place.
• This product is designed for use in the home only as indication of the temperature.
• This product is not to be used for medical purposes or for public information.
• The specifications of this product may change without prior notice.
• This product is not a toy. Keep out of the reach of children.
• No part of this manual may be reproduced without written authorization of the manufacturer.

R&TTE Directive 1999/5/EC
Summary of the Declaration of Conformity: We hereby declare that this wireless transmission device does comply with the essential requirements of R&TTE Directive 1999/5/EC.

Documents / Resources

Download manual

Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.

Download Techno Line WS 9257-IT - Weather Station Manual
