Techno Line WS 9132 - Weather Station Manual

Environmental reception effects

The station obtains the accurate time with wireless technology. Same as all wireless devices, the reception is maybe affected by the following circumstances:

• long transmitting distance
• nearby mountains and valleys
• near freeway, railway, airports, high voltage cable etc.
• near construction site
• among tall buildings
• inside concrete buildings
• near electrical appliances (computers, TV's, etc) and metallic structures
• inside moving vehicles

Place the station at a location with optimal signal, i.e. close to a window and away from metal surfaces or electrical appliances.

Precautions

• This main unit is intended to be used only indoors.
• Do not subject the unit to excessive force or shock.
• Do not expose the unit to extreme temperatures, direct sunlight, dust or humidity.
• Do not immerse in water.
• Avoid contact with any corrosive materials.
• Do not dispose this unit in a fire as it may explode.
• Do not open the inner back case or tamper with any components of this unit.

Batteries safety warnings

• Use only alkaline batteries, not rechargeable batteries.
• Install batteries correctly by matching the polarities (+/-).
• Always replace a complete set of batteries.
• Never mix used and new batteries.
• Remove exhausted batteries immediately.
• Remove batteries when not in use.
• Do not recharge and do not dispose of batteries in fire as the batteries may explode.
• Ensure batteries are stored away from metal objects as contact may cause a short circuit.
• Avoid exposing batteries to extreme temperature or humidity or direct sunlight.
• Keep all batteries out of reach from children. They are a choking hazard.

Use the product only for its intended purpose!

Consideration of duty according to the battery law

Old batteries do not belong to domestic waste because they could cause damages of health and environment. You can return used batteries free of charge to your dealer and collection points. As end-user you are committed by law to bring back needed batteries to distributors and other collecting points!

Consideration of duty according to the law of electrical devices

This symbol means that you must dispose of electrical devices separated from the General household waste when it reaches the end of its useful life. Take your unit to your local waste collection point or recycling centre. This applies to all countries of the European Union, and to other European countries with a separate waste collection system.

Hereby, Technotrade declares that this product WS 9132 is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU and ROHS 2011/65/EC. The original EU declaration of conformity may be found at: www.technoline.de/doc/4029665091327

Features

• DCF Radio controlled time function

• 12/24 hour format

• Daily Alarm Function

• Snooze function (OFF or 1~60min)

• Low battery indicator

• Maximum /minimum value record of temperature and humidity

• Temperature in °C or °F

• Outdoor thermometer ice alert

• Humidity measurable range: 20%RH ~ 95%RH

• Temperature:

• Indoor temperature measurement ranges: -9.9°C (14.2°F) ~ 50°C (122°F)

• Outdoor temperature measurement ranges: -25°C (-13°F) ~ 50°C (122°F)

• Remote Sensor:

• Wall Mount or Table Stand

• 3 Channels selectable

• 433.92MHz RF transmitting frequency

• 30 meter transmission range in an open area

• Weather forecasting function

• Power Supply:
  Weather Station:
  Battery: 2 x LR03 AAA
  Remote Sensor:
  Battery: 2 x LR06 AA

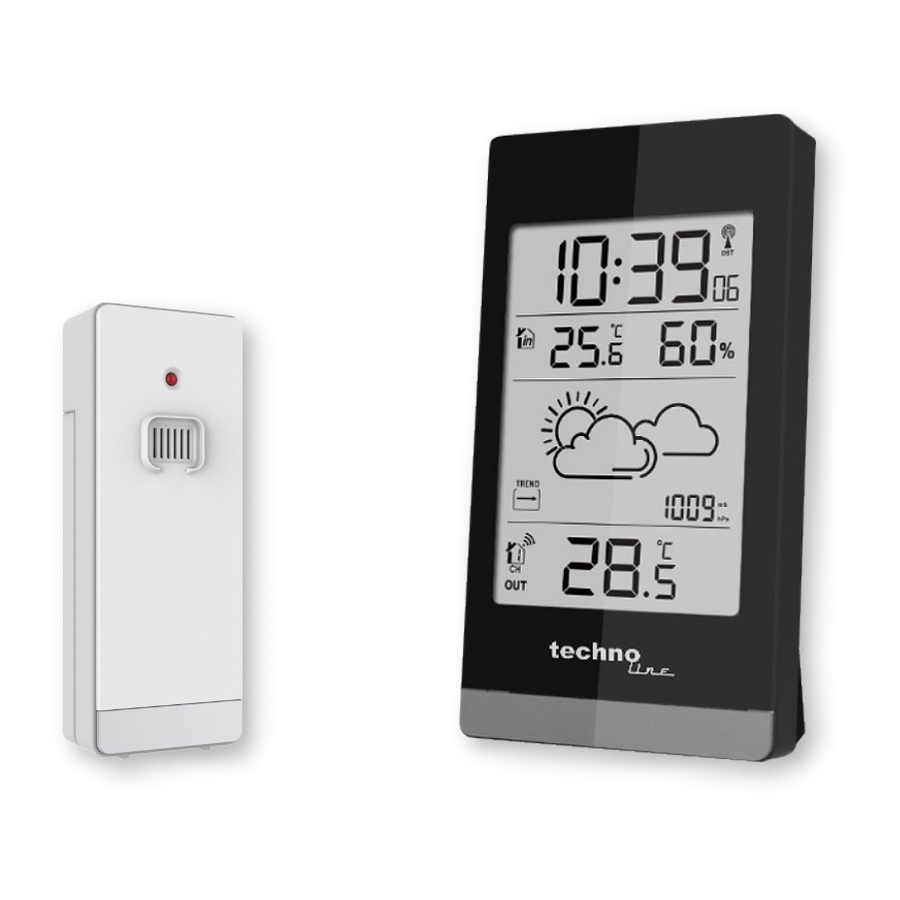

Weather Station Appearance

Part B – Remote sensor

B1: Transmit indicate LED
B2: Battery door
B3: Channel switch
B4: Reset button

Initial operation

• Open the Weather Station battery compartment cover
• Insert 2 x AAA batteries observing polarity [ "+" and " –" marks]
• When you insert the batteries, all icons on the LCD display will light up for 3 seconds, you will hear a beep tone and the station detects indoor temperature & humidity.
• The Weather Station will now start to make a connection to the outdoor remote sensor.
  This operation takes about 3 minutes and is displayed by a flashing reception RF antenna symbol in the "OUTDOOR" display area on the receiver.
• Open Wireless Outdoor Sensor battery compartment cover, Insert 2 x AA batteries observing polarity [ "+" and "–" marks]. After receiver has created a connection to the outdoor remote sensor,
• After 3 minutes it will enter the Radio control time receive mode.

Reception of the DCF signal

Please note:

• A flashing radio mast icon indicates that the DCF signal reception has started

• A continuously displayed radio mast icon indicates that the DCF signal was received successfully
• We recommend a minimum distance of 2.5 meters to all sources of interference, such as televisions or computer monitors
• Radio reception is weaker in rooms with concrete walls (e.g.: in cellars) and in offices. In such extreme circumstances, place the system close to the window.
• During the DCF reception mode, only the " " button has a function, other buttons are not functional, If you want to carry out other functions of operation, please press" " button to exit the DCF receiving mode.

Manual settings

• Press and hold the "", 12/24HR start to flash. Now use "+" and "-" buttons to set the set 12 or 24 hour mode.
• Press the "" button to confirm your setting. The time zone start to flash. Now use "+" and "-" buttons set a time zone (-12 to +12). For example for UK, the time zone is -01, for Germany it is 00.
• Press the "" button to confirm your setting, the Hour display starts to flash. Now use "+" and "-" buttons to set the hour.
• Press the "" button to confirm your setting, the Minute display starts to flash. Now use "+" and "-" buttons to set the minute.
• Press the "" button to confirm your setting, the temperature unit starts to flash. Now use "+" and "-" buttons to choose between °C or °F temperature unit.
• Press the "" button to confirm your setting, the barometric pressure unit starts to flash, Now use "+" and "-" buttons to set the barometric pressure unit in mB/hPa or inHg.
• Press the "" button to confirm your setting, the barometric pressure data starts to flash. Now use "+" and "-" buttons to set the barometric pressure data according to the local relative air pressure. If not changed, the value corresponds to the absolute air pressure.
• Press the "" button to confirm your setting, the weather forecast pattern starts to flash. Now use "+" and "-" buttons to set the weather forecast pattern according to the current weather..
• Press the "" button to confirm your setting and to end the setting procedures, the display will return to the normal mode.

Please note:

• If there is no valid operation within 20 seconds, the station will automatically return to normal time mode from the set mode.

Setting the alarm

• Press "" button once, LCD displays the "" icon, the alarm function is ON. Then press "" button once, the "" icon will disappears from the display, the alarm function is OFF.
• Press once "" button, LCD display alarm time, then press and hold "" button for 3 seconds until the hour of alarm time starts to flash. Use the "+" and "-" buttons to set the hour.
• Press "" button to confirm your setting. The minute of the alarm time starts to flash. Use the "+" and "-" buttons to set the minute.
• Press "" button to confirm your setting. The snooze time starts to flash. Use the "+" and "-" buttons to set the snooze time. The snooze time can be set from OFF to 60 minutes.
• Press "" button to confirm your setting and to end the setting procedure.

Please note:

• If there is no valid operation within 20 seconds, the station will automatically return to normal time mode from the alarm time set mode.
• The alarm will sound for 2 minutes if you do not deactivate it by pressing any button. In this case the alarm will be repeated automatically after 24 hours.
• Rising alarm sound (crescendo, duration: 2 minutes) changes the volume 4 times whilst the alarm signal is heard.

Switching off the alarm signal

• Press any button except the "SNOOZE/LIGHT" button to stop the alarm signal. It is not necessary to reactivate the alarm. It switches itself automatically to the alarm time which has already been set.

Snooze function

• When the alarm is ringing, press the "SNZ" button the alarm mode to get to snooze mode.
  The alarm signal sounds again after already been set. If OFF was selected in the SNOOZE time setting, the alarm will not repeat.

RF Transmission Procedure

• The weather station automatically starts receiving transmission from outdoor thermo sensor after batteries inserted.
• The remote sensor will automatically transmit temperature signal to the Weather Station after batteries inserted.
• If the Weather Station failed to receive transmission from outdoor sensor ("- -.-"display on the LCD), press and hold the "-/CH" button for 3 seconds to receive transmission manually. RF icon " " flashes on the LCD of the Weather Station to receive the remote sensor.
• If the weather station is used with 2 or 3 transmitters, press "-/CH" button shortly to display CH2, CH3 or cyclic display.


Maximum/minimum temperature/humidity

• Press "MEM" button once, the LCD will display maximum value of temperature/ humidity.
  If the "MEM" button is pressed again the minimum value is displayed.
• While displaying MAX or MIN values, there is "MAX" or "MIN" on the LCD.

• Press and hold "MEM" button for 3 seconds. The temperature/humidity maximum/minimum value will reset to the current values

Please note:

• If the temperature reading is below ranges, the LL.L will be displayed. If the temperature reading is above ranges, the HH.H will be displayed.

Trend displaying

• The current temperature/humidity/barometric pressure and the temperature/humidity/barometric pressure trend are shown in the LCD display.
• After successfully connecting with the outdoor sensor, the weather station can display the outdoor temperature and the indoor temperature/humidity trend.
• You may see the following displays:
  The temperature/humidity/ barometric pressure is rising.
  The temperature/humidity/ barometric pressure is steady.
  The temperature/humidity/ barometric pressure is falling.

Ice alert

• The ice alert symbol appears and flashing next to the outdoor temperature when the outdoor temperature at –1℃ to + 2.9 ℃ or +30.2℉ to + 37.2℉.

Weather forecasting function

• The weather forecast is calculated from evaluation of fluctuations in the barometric pressure and may deviate from the actual weather conditions.
• The weather station displays the following weather symbols:



• The weather symbols indicate the weather fluctuation over the next eight hours and not the current weather.

Technical details

Supply voltage: 2.5~3.3V
Time zone: -12~12Hr
IN Temperature measuring range: -9.9~50℃/14.2~122℉
OUT Temperature measuring range: -25~50℃/-13~122℉
Temperature resolution: 0.1℃/℉
Temperature accuracy: 0℃~40℃: ±1℃
–25℃~-0℃, 40℃~50℃: ±2℃
Humidity measuring range: 20-95%
Humidity resolution: 1%
Humidity accuracy: 40-80%: ±5%
20~39%,81-95%: ±8%
RF receiving distance30meter (free field)
Air pressure measuring range: 850-1100hpa
Air pressure change accuracy: ±5hpa
