ELECTRICAL INSTALLATION INSTRUCTIONS (continued)
WHIRLPOOL PLUS AIR BATH COMBINATIONS
The whirlpool pump and blower should be installed on a 120 vac, 20 amp dedicated circuit. The circuit should be
hard-wired from the electrical power supply panel. The circuit must be a three (3) wire circuit from the electrical supply
panel. A grounded neutral wire and a third wire, earth ground, are essential. A SEPARATE 15 AMP MAXIMUM GFCI
CIRCUIT IS REQUIRED IF THE OPTIONAL HEATER IS INSTALLED (SEE INSTALLATION INSTRUCTIONS
SUPPLIED WITH THE HEATER MODEL NUMBER – 494-1000).
TOTAL MASSAGE CIRCUIT WITH OPTIONAL WATER HEATING ELEMENT
JETS SPEED
The Whirlpool plus Air Bath combination control pad contains six (6) buttons.
Three controls on the "Therapy Control Center" operate the whirlpool and the bottom three controls operate the air
system. The whirlpool and air massages systems may be used at the same time if desired.
The air bath is controlled by a three button control:
1. The first button switches the blower on or off. The other features will not operate unless the blower is turned on.
2. The second button sets the power level of the blower. Holding the button depressed will cycle the blower power from
low to high in a continuous cycle. When the desired level is reached, remove your finger quickly from the button to
maintain that power setting.
3. The third button is a three step wave action button. Once activated, the air holes expell air in a slow pulsating flow
called wave action. There are 3 steps or positions for wave strength.
a. Position #1 operates the blower at a steady flow.
b. Position #2 operates the blower at a quick wave action.
c. Position #3 operates the blower at a slower wave action.
Adjusts the variable
water flow of the jets
Switches the jet-pump
on or off
WHIRLPOOL PLUS AIR BATH COMBINATION UNITS ARE EQUIPPED WITH AN AUTOMATIC CLEANING
AND PURGE CYCLE
Air Baths have a preprogrammed cleaning and purge cycle built in to expel the remaining water in the air channels. It
activates within 20 minutes after the bath is drained, blows for about 2 to 3 minutes and then shuts off automatically.
There is nothing to be alarmed about if you hear a blowing noise coming from the tub after the tub has been turned off.
The noise you hear is the cleaning cycle in operation.

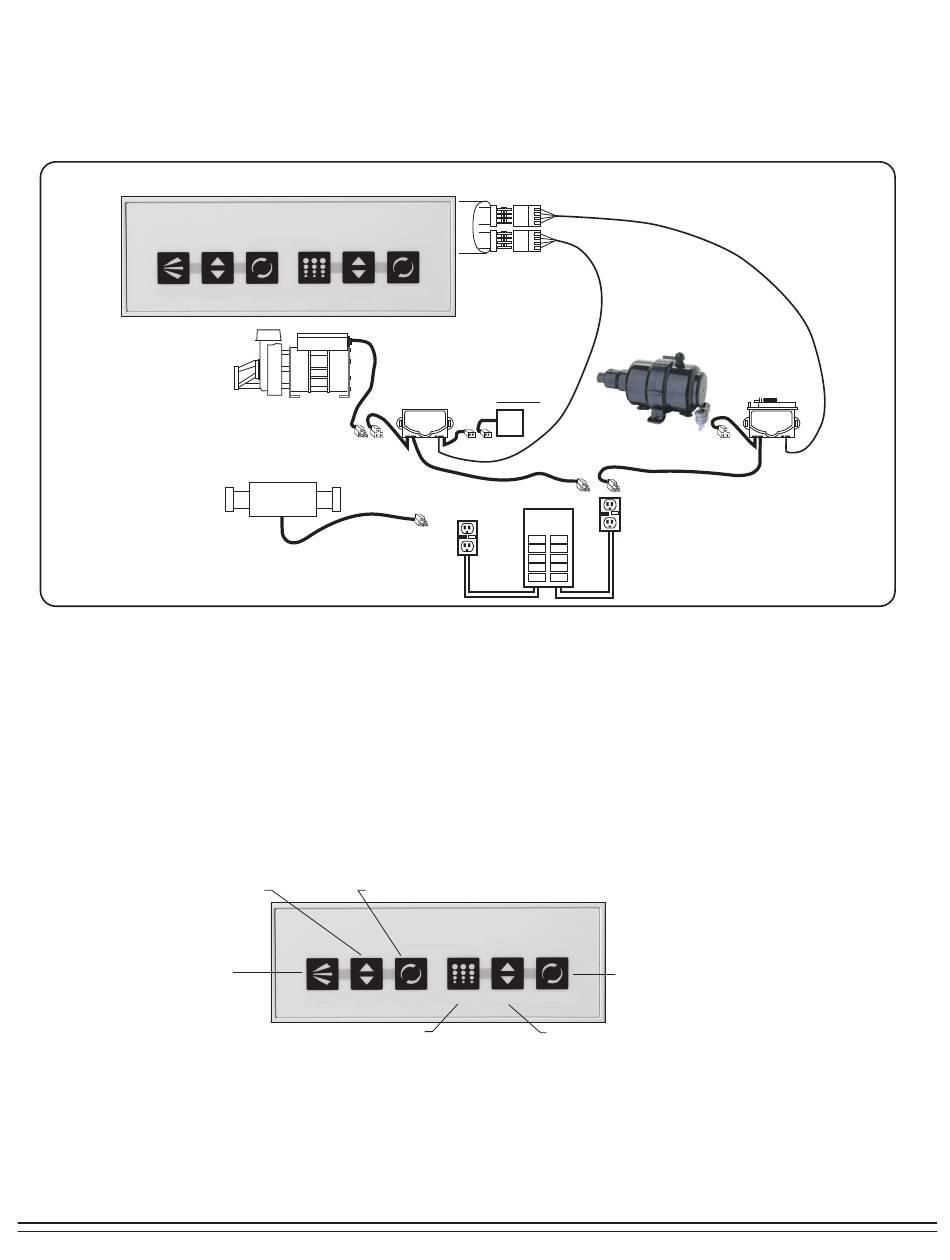

THERAPY
Control Center
WAVE BLOWER SPEED WAVE
TMS-P / TIMER
CONTROL
ON/OFF PUMP
OPTIONAL
HEATER
120V / 20 AMP
MALE PLUG
120V / 60 Hz
20 AMP GFCI
Switches from continuous
to wave action water flow
THERAPY
Control Center
JETS SPEED WAVE
Switches the air
blower on or off
BACK OF 6 BTN
CONTROL
PUMP FLOW
CONTROL VALVE
0.5 AMP
ELECTRICAL
FEED
20 AMP GFCI
GFCI GFCI
Switches from continuous
to wave action air flow
BLOWER SPEED WAVE
Adjusts the variable
air flow of the blower
