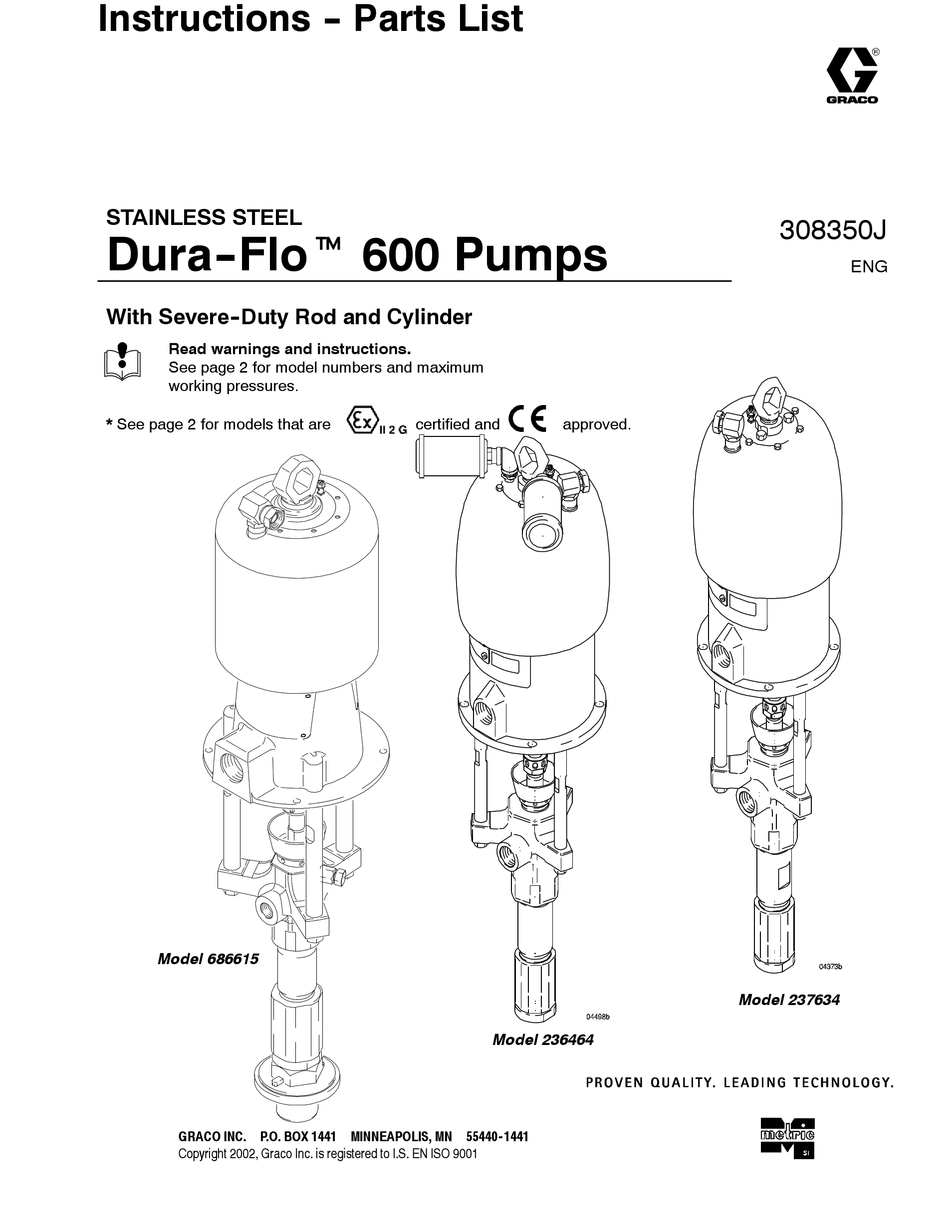

Instructions - - Parts List
STAINLESS STEEL
Dura- -Flot 600 Pumps
With Severe- -Duty Rod and Cylinder
Read warnings and instructions.
See page 2 for model numbers and maximum
working pressures.
* See page 2 for models that are
Model 686615
GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440- 1441
Copyright 2002, Graco Inc. is registered to I.S. EN ISO 9001
certified and
approved.
Model 236464
308350J
ENG
Model 237634

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the metrie Dura-Flot 600 and is the answer not in the manual?

Questions and answers

Related Manuals for Graco metrie Dura-Flot 600

Summary of Contents for Graco metrie Dura-Flot 600

  • Page 1 See page 2 for model numbers and maximum working pressures. * See page 2 for models that are certified and approved. Model 686615 Model 237634 Model 236464 GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440- 1441 Copyright 2002, Graco Inc. is registered to I.S. EN ISO 9001...

  • Page 2: List Of Models

    Reconnecting the Displacement Pump ..Graco Information ......

  • Page 3: Warning Symbol

    D This equipment is for professional use only. D Read all instruction manuals, tags, and labels before operating the equipment. D Use the equipment only for its intended purpose. If you are uncertain about usage, call your Graco distributor. D Do not alter or modify this equipment. Use only genuine Graco parts and accessories.
  • Page 4 Permanently coupled hoses cannot be repaired; replace the entire hose. D Use only Graco approved hoses. Do not remove any spring guard that is used to help protect the hose from rupture caused by kinks or bends near the couplings.
  • Page 5 WARNING FIRE AND EXPLOSION HAZARD Improper grounding, poor ventilation, open flames or sparks can cause a hazardous condition and result in a fire or explosion and serious injury. D Ground the equipment and the object being sprayed. Refer to Grounding on page 7. D If there is any static sparking or you feel an electric shock while using this equipment, stop spray- ing immediately.
  • Page 6 Notes 308350...

  • Page 7: General Information

    4. Spray gun: ground through connection to a prop- parts drawing. erly grounded fluid hose and pump. NOTE: Always use Genuine Graco Parts and Acces- 5. Fluid supply container: follow your local code. sories, available from your Graco distributor. Refer to Product Data Sheet, Form No.
  • Page 8 Installation System Accessories (continued) A pump runaway valve (C) senses when the pump is running too fast and automatically shuts off the air to the motor. A pump which runs too fast WARNING can be seriously damaged. An air manifold (G) has a 3/4 npsm(f) swivel air A bleed-type master air valve (E) and a fluid drain inlet.
  • Page 9 Installation TYPICAL INSTALLATION Pump Air Line Filter Gun Swivel Wall Bracket Bleed-Type Master Air Valve Airless Spray Gun Pump Runaway Valve (for accessories) Suction Kit Air Line Lubricator Fluid Filter Ground Wire and Clamp Bleed-Type Master Air Valve M Fluid Drain Valve (required) (required;...

  • Page 10: Pressure Relief Procedure

    Operation/Maintenance Pressure Relief Procedure Packing Nut/Wet-Cup Before starting, fill the packing nut (8) 1/3 full with WARNING Graco Throat Seal Liquid (TSL) or compatible solvent. See Fig. 3. INJECTION HAZARD The system pressure must be manually WARNING relieved to prevent the system from starting or spraying accidentally.

  • Page 11: Starting And Adjusting The Pump

    Operation/Maintenance Flush the Pump Before First Use WARNING The pump is tested with lightweight oil, which is left in INJECTION HAZARD to protect the pump parts. If the fluid you are using To reduce the risk of fluid injection, do may be contaminated by the oil, flush it out with a not use your hand or fingers to cover compatible solvent.
  • Page 12 Operation/Maintenance Shutdown and Care of the Pump Flush with a fluid that is compatible with the fluid you are pumping and with the wetted parts in your system. Check with your fluid manufacturer or supplier for WARNING recommended flushing fluids and flushing frequency. Always flush the pump before fluid dries on the dis- To reduce the risk of serious injury whenever you placement rod.

  • Page 13: Troubleshooting Chart

    Turn on the air just enough to start the pump. If the pump starts when the air is turned on, the obstruction is in the fluid hose or gun. NOTE: If you experience air motor icing, call your Graco distributor. 308350...

  • Page 14: Required Tools

    5. Reconnect all hoses. Reconnect the ground wire if leave it attached to its mounting. it was disconnected. Fill the packing nut (8) 1/3 full of Graco Throat Seal Liquid or compatible solvent. CAUTION 6. Turn on the air supply. Run the pump slowly to ensure proper operation.
  • Page 15 Service Model 237634 Shown Torque to 61- -75 NSm (45- -55 ft-lb) Torque to 195- -210 NSm (145- -155 ft-lb) Torque to 68- -81 NSm (50- -60 ft-lb) 04377 Fig. 4 308350...
  • Page 16 Service DISPLACEMENT PUMP SERVICE 2. Using a 2--3/4 in. socket or a pipe wrench, un- screw the intake valve (5) from the intake housing (7). Be careful to catch the intake ball (13) Disassembly as you remove the intake valve, so that it does not fall and suffer damage.
  • Page 17 Service 6. Shine a light into the cylinder (2) to inspect the CAUTION inner surface for scoring or wear. Remove the two seals (11) from the cylinder. To reduce the possibility of costly damage to the rod (1) and cylinder (2), always use a plastic or 7.
  • Page 18 Service Reassembly 4. For standard displacement pump 236458, lubricate the throat packings and place them in the outlet housing (6) in the following order, with the lips of 1. If it was necessary to remove the piston ball the v-packings facing down: the male gland (3*), housing (9) from the displacement rod (1), clean four leather v-packings (19*), one PTFE v-packing the threads of the rod and the ball housing, and...
  • Page 19 Service Torque to 61- -75 NSm (45- -55 ft-lb). Lips face up. Torque to 325- -353 NSm (240- -260 ft-lb). Lips face down. Torque to 258- -285 NSm (190- -210 ft-lb). See the Throat Packing Detail at left. Lubricate. See the Piston Packing Detail at left. Apply thread sealant.
  • Page 20 Service 9. Install the seal (30*) on the intake valve (5). Lubri- 11. Install the seal (11*) on the bottom of the cate the seal and the threads of the intake valve. cylinder (2). See Fig. 8. Lubricate the seal and the threads of the cylinder.
  • Page 21 Parts Part No. 237634 Pump, Series A Part No. 236464 Pump, Series A 41:1 Ratio, with Bulldog Air Motor 41:1 Ratio, with Reduced Icing Quiet Bulldog Air Motor 102Y 102Y 107{ 107{ {105 106{ 106{ {105 110{ 110{ {108 {108 These parts are included in These parts are included in Connection Kit 235417.
  • Page 22 Parts Part No. 686615 Pump, Series A 25:1 Ratio, with Senator Air Motor 102Y 107{ {105 110{ 106{ {108 These parts are included in Connection Kit 235417. For applications requiring stainless steel tie rods, order Connection Kit 235418. Ref. Ref. Part No.
  • Page 23 Parts Part NOTE: The parts listed on this page are common to all displacement pumps covered in this manual. Refer to Description page 24 for the different packing configurations available. 190172 ROD, displacement; stainless steel 184503 CYLINDER; stainless steel * These parts are included in Repair Kit 237234, which may 236585 VALVE, intake;...

  • Page 24: Packing Kits

    Packing Kits Leather Packing Kit 237234, for Standard Displacement Pump 236458, Series A Part THROAT PACKINGS: PISTON PACKINGS: LIPS FACE DOWN LIPS FACE UP Description 184222 GLAND, male; stainless steel 184172 GLAND, female; stainless steel 109302 V-PACKING; PTFE 184302 V-PACKING; leather * Kit also includes items 11, 12, 13, and 30 (see page 23).

  • Page 25: Technical Data

    Technical Data WARNING Be sure that all fluids and solvents used are chemically compatible with the Wetted Parts listed below. Always read the manufacturer’s literature before using fluid or solvent in this pump. Category Data Maximum fluid working pressure 28.3 MPa, 283 bar (4100 psi) Maximum air input pressure 0.7 MPa, 7 bar (100 psi) Ratio...
  • Page 26 Technical Data KEY: Fluid Outlet Pressure - - Black Curves 0.7 MPa, 7 bar (100 psi) Air Pressure Air Consumption - - Gray Curves 0.49 MPa, 4.9 bar (70 psi) Air Pressure 0.28 MPa, 2.8 bar (40 psi) Air Pressure cycles/min scfm MPa, bar...

  • Page 27: Mounting Hole Layout

    Dimensions Mounting Hole Layout Model 237634 Shown 94.28 mm (3.712”) 101.6 mm (4.0”) 94.28 mm (3.712”) 50.8 mm (2.0”) Three M16 x 2.0 Holes 11.1 mm (0.437”) 88 mm DIA (4) (3.464”) 0653 Pump Model 237634 1105 mm 561 mm 544 mm 257 mm 1--1/2 in.

  • Page 28: Graco Standard Warranty

    Graco distributor to the original purchaser for use. With the exception of any special, extended, or limited warranty published by Graco, Graco will, for a period of twelve months from the date of sale, repair or replace any part of the equipment determined by Graco to be defective.
