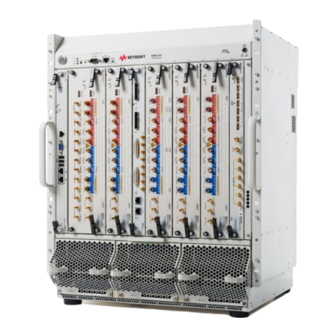

Keysight M8000 Series Quick Start Manual
Hide thumbs
Also See for M8000 Series:
- Getting started manual (58 pages) ,
- Installation manual (78 pages) ,
- Manual (26 pages)
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Keysight M8000 Series
Summary of Contents for Keysight M8000 Series
- Page 1 Keysight M8000 Series BER Test Solutions J-BERT M8020A High-Performance BERT M8030A Multi-Channel BERT M8040A High-Performance BERT M8041A, M8051A, M8061A, M8062A, M8045A, M8046A, M8057A/B & M8054A Tips for Preventing Damage...
- Page 2 Ensure proper grounding Properly apply a DC block, limiter or external • attenuator as additional safety measure, if Always use three-prong AC power cord • possible. supplied with the product. Proper grounding of the instrument will • Ensure proper instrument cooling (air- prevent a build-up of electrostatic charge, flow) which may be harmful to the instrument and...
- Page 3 When testing an active (powered) DUT, be • aware that the capacitors can hold charges even after power is removed from the DUT. Voltage on the board can exceed the maximum input level of the instrument and transient voltage may occur from DUT. Utilize an inline attenuator (e.g.
- Page 4 Get more information Visual Inspection DO NOT Consideration for instrument grounding • • Use a damaged • Inspect all connectors 5989-9200ENA connecter - ever carefully before every • Bench instrument site check table 5989- connection 4992ENA • Look for metal particles, scratches, dents •...
- Page 5 Precision 1.85 mm 8 (0.90) Torque Wrench 8710-1765 Get the latest information about your product For 14-slot chassis related information, see: • http://www.keysight.com/find/M9514A For 5-slot chassis related information, see: • http://www.keysight.com/find/M9505A For 2-slot chassis related information, see: • Apply downward force perpendicular to the •...
- Page 6 This information is subject to change without notice. © Keysight Technologies 2019 Edition 2.0, September 2019 Printed in Malaysia www.keysight.com...
