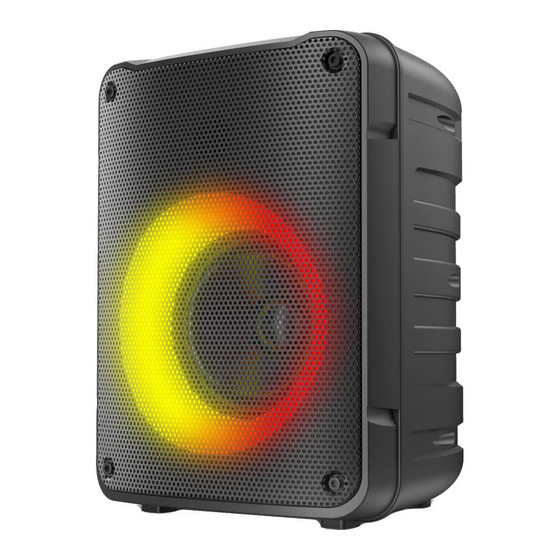

Akai ABTS-V10 User Manual

I. Features
1. Portable Bluetooth V5.0 Speaker
2. With Bluetooth, wireless stream music from any Bluetooth-enabled devices such as your mobile phone,
notebook, iPhone or iPad
3. Bluetooth operating range 10 meters
4. TWS function, achieve true wireless Bluetooth playing with double enhanced stereo sound
5. RGB Lighting
6. USB support
7. FM radio- high-quality radio with automatic channel search and storage of up to 30 channels.
8. Line-in function, suitable for PC, TV or other audio devices
9. Built-in lithium rechargeable battery 3.7V 3000mA
10. Carry handle, easy to take out
11. Microphone jack, for Karaoke function (the microphone its not included)
II. Recording function
Recording using a wired microphone (not included):
Connect a storage device (USB/TF card) and short press RECORD key to start recording. During recording,
tune the "-ECHO+" knob to the minimum. It is noticeable that the microphone should be placed in a proper
distance away from the speaker to prevent any howl-round or noise.
Note: This product shows recording time on the display.
III. The Bluetooth pairing operation and related parameters:
1.Power: switch the power ON, press the key "MODE" to enter in Bluetooth mode, and the
display screen will show "BLUE".
2.Switch on the Bluetooth function on mobile phone and search for available devices , until the mobile
phone shows "ABTS-V10". The connection doesn`t need any password , if password is requested , please
type "0000" to go on pairing . After success pairing , the speaker will send out a voice prompt . That
means the pairing between mobile phone and Bluetooth speaker was succesfully made.
3.Now you may play the music from your phone.
IV. TWS function
1. Turn on two identical speakers you want to pair, both under BT mode.
2. Long-press the TWS button until speaker display "BLUE" stop flashing, now both speakers paired
successfully.
ABTS-V10
Portable Speaker
User Manual
EN-ENGLISH
