Akai A58071 Instruction Manual

Portable speaker with dual bass speakers
Hide thumbs

Advertisement

Table of Contents

INSTRUCTION MANUAL
PORTABLE SPEAKER WITH DUAL BASS SPEAKERS
MODEL: A58071

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the A58071 and is the answer not in the manual?

Questions and answers

Related Manuals for Akai A58071

Summary of Contents for Akai A58071

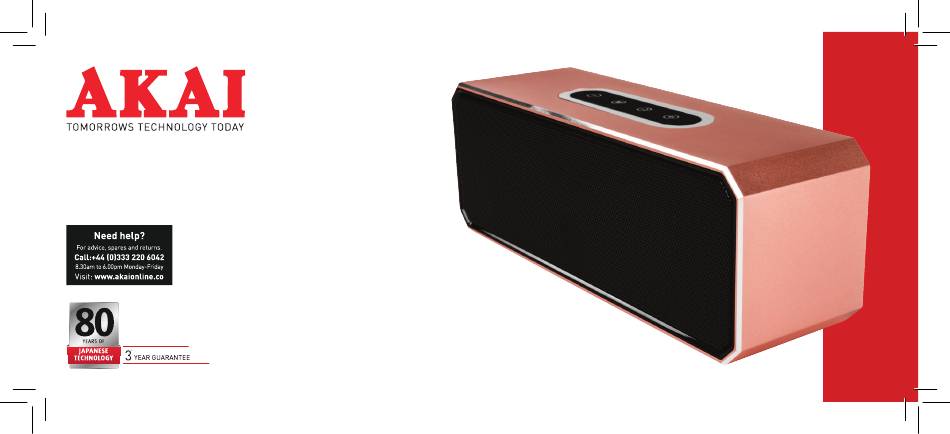

  • Page 1 INSTRUCTION MANUAL PORTABLE SPEAKER WITH DUAL BASS SPEAKERS MODEL: A58071...

  • Page 2: Technical Data

    TECHNICAL DATA MODEL NO: A58071 POWER CHARGING: DC5V POWER SUPPLY: LI-BATTERY 1500MAH SPEAKERS: 5W X 2 CHARGE TIME: 3 HOURS DECLARATION OF CONFORMITY We declare that this product conforms to the following product legislation in accordance with the following directive(s): 2014/30/EU Electromagnetic Compatibility Directive.
  • Page 3 GUARANTEE This product is guaranteed for 12 months from the date of the original purchase. If any defect arises due to faulty materials or workmanship, the faulty product must be returned to the place of purchase. Refund or replacement is at the discretion of the retailer. The following conditions apply: The product must be returned to the retailer with the proof of purchase.

  • Page 4: Safety Information

    IMPORTANT INFORMATION - RETAIN FOR FUTURE USE SAFETY INFORMATION Important safety instructions – read carefully before use. It is important that this instruction manual should be retained with the appliance for future reference. These warnings have been provided in the interest of safety. You MUST read them carefully before installation or use. WARNING Check that the voltage of the main circuit corresponds with the rating of the appliance before •...
  • Page 5 This appliance can be used by children aged from 8 years and above and persons with reduced physical, • sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance.
  • Page 6 This appliance is for household use only. • DO NOT carry the appliance by the USB Cable. • DO NOT use the appliance outdoors. • DO NOT block any ventilation openings & install in accordance with the manufacturer’s instructions. • DO NOT install near any strong magnets or heat sources such as radiators, heat registers, stoves, or •...
  • Page 7 Unplug the appliance from the USB Cable during lightning storms or when it has been unused for • long periods of time. If the appliance is not going to be used for a period of time please ensure that it is fully disconnected •...
  • Page 8 WARNING! DO NOT expose the appliance to rain or moisture to reduce the risk of electric shock or • fire. WARNING! DO NOT immerse the product in water or any other liquid. • In the unlikely event the appliance develops a fault, stop using it immediately and seek advice from •...

  • Page 9: Features And Controls

    FEATURES AND CONTROLS IN THE BOX INSTRUCTION MANUAL BLUETOOTH SPEAKER USB CABLE AUX IN CABLE VOLUME DOWN/TRACK REVERSE MODE BUTTON PLAY/PAUSE/PHONE VOLUME UP/TRACK FORWARD ON/OFF DC/MICRO USB PORT LED INDICATOR USB INPUT AUX PORT 10. TF CARD...

  • Page 10: Using Your Appliance

    USING YOUR APPLIANCE BEFORE YOUR FIRST USE: Remove the product from the box. Remove any packaging from the product. Please retain all packaging until you have checked and counted all the parts and the contents against the parts list. Your appliance is now ready for normal use. Dispose of the packaging in a responsible manner.

  • Page 11: Using Bluetooth

    Flip the ON/OFF switch to the ON position. The speaker will beep and a blue LED will flash quickly. The speaker will announce that it is ready to pair. Turn on the Bluetooth feature on your external device and look for “A58071”. Select the speaker name and pair it with your device. If a password is required, press “0000”.

  • Page 12: Basic Operation

    BASIC OPERATION: • To turn the speaker on, slide ON/OFF switch to the left. • The speaker will beep and a blue LED will flash quickly. The speaker will announce that it is ready to pair, and once again when connected. •...
  • Page 13 • PLAYING MUSIC WITH AN SD/TF CARD • Insert the SD/TF card into the TF slot. • The speaker will begin to play music from the card. • Use the Short Press the Plus/Skip Forward (+) or Minus/Skip Backward (-) buttons on the speaker to cycle through your tracks. HANDS FREE PHONE OPERATION: •...

  • Page 14: Indicator Light Status

    INDICATOR LIGHT STATUS: STATUS INDICATOR LIGHTS Charging Red LED ON Fully Charged LED OFF Pairing Mode Blue LED will flash quickly Connected to Bluetooth Device Blue LED ON Playing Blue LED will flash slowly...

  • Page 15: Troubleshooting

    TROUBLESHOOTING CLEANING & MAINTENANCE • Clean the appliance with a soft, damp cloth. Never PROBLEM POSSIBLE CAUSE SOLUTION use chemicals or hard abrasives. Low sound Source (Tablet, Mobile Adjust the source volume to your desired level. • Keep this unit away from wet or damp level Phone, Laptop, etc.) surroundings.
  • Page 16 Call:+44 (0)333 220 6042 8.30am to 6.00pm Monday-Friday Visit: www.akaionline.co Distributed throughout the UK by RK Wholesale LTD *REGISTER YOUR PRODUCT ONLINE AT WWW.AKAIONLINE.CO AND ENJOY 3 YEARS PEACE OF MIND AKAI CUSTOMER SUPPORT TEAM +44 (0) 333 220 6042...
