Read these instructions before using the machine.

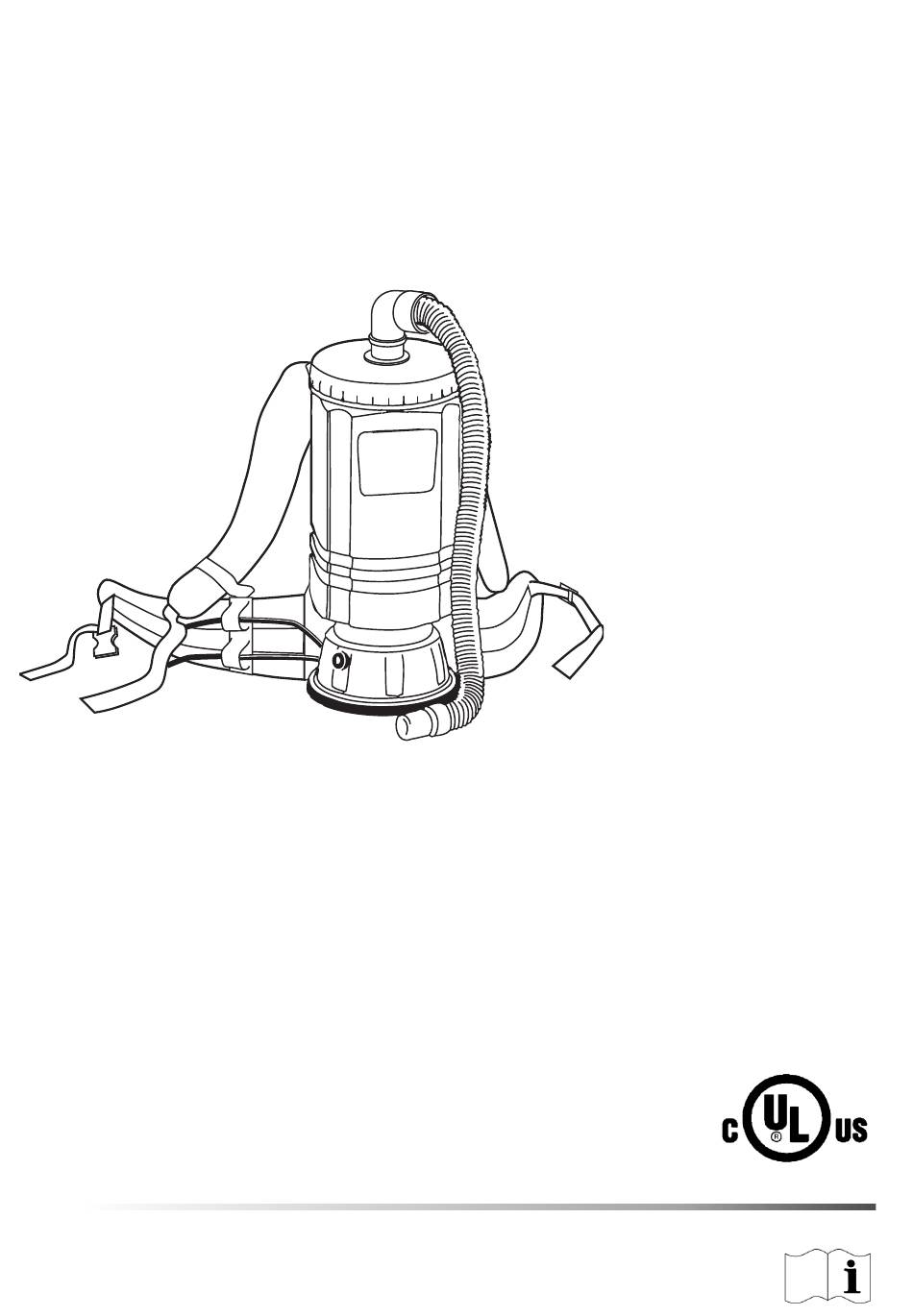

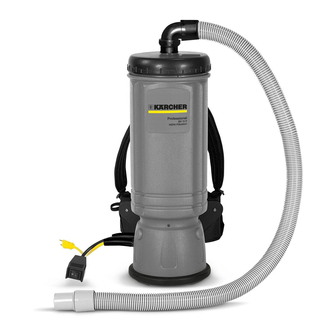

Operating instructions (ENG)
MODELS:
VP6
UVP6
VP10
UVP10
10140130
98413240
10140140
98413250

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VP6 and is the answer not in the manual?

Questions and answers

Summary of Contents for Kärcher VP6

  • Page 1 Operating instructions (ENG) MODELS: 10140130 UVP6 98413240 VP10 10140140 UVP10 98413250 Read these instructions before using the machine. 86394670-A 12/01/14...
  • Page 2: Machine Data Label

    Machine Data Label 86394670 - VacPac...
  • Page 3: Table Of Contents

    Table of Contents Maintenance Machine Data Label ......2 Daily Maintenance ..... . . 14 Table of Contents .
  • Page 4: How To Use This Manual

    How To Use This Manual This manual contains the following sections: The SAFETY section contains important information regarding hazardous or unsafe practices of the • How to Use This Manual machine. Levels of hazards are identified that could • Safety result in product damage, personal injury, or severe •...
  • Page 5: Safety

    Safety IMPORTANT SAFETY INSTRUCTIONS When using an electrical appliance, basic precaution must always be followed, including the following: READ ALL INSTRUCTIONS BEFORE USING THIS MACHINE. To reduce the risk of fire, electric shock, or injury: Do not leave the appliance when plugged in. Unplug from outlet when not in use and before servicing. Do not use outdoors or on wet surfaces.
  • Page 6 Safety IMPORTANTES MESURES DE SÉCURITÉ L'utilisation d'un appareil électrique demande certaines précautions: LIRE TOUTES LES INSTRUCTIONS AVANT DE FAIRE FONCTIONNER (CET APPAREIL). Pour réduire les risques d'incendie, de chocs électriques, ou de blessures : AVERTISSEMENT Ne laissez pas l'appareil sans surveillance lorsqu'il est branché. Débranchez l'appareil lorsqu'il n'est pas utilisé et avant tout entretien.
  • Page 7: Hazard Intensity Level

    Safety Hazard Intensity Level The following symbols are used throughout this guide as indicated in their descriptions: HAZARD INTENSITY LEVEL There are three levels of hazard intensity identified by signal words -WARNING and CAUTION and FOR SAFETY. The level of hazard intensity is determined by the following definitions: WARNING - Hazards or unsafe practices which COULD result in severe personal injury or death.
  • Page 8 Safety DEGRÉS DE RISQUES EN CAS DE DANGER Les symboles ci-dessous sont utilisés à travers ce manuel comme illustré dans leurs descriptions : DEGRÉS DE RISQUES EN CAS DE DANGER Il existe trois degrés de risques identifiés par les termes signalétiques -AVERTISSEMENT et ATTENTION et POUR VOTRE SÉCURITÉ.
  • Page 9: Grounding Instructions

    Safety Grounding Instructions Grounding Pin THIS PRODUCT IS FOR COMMERCIAL USE ONLY. ELECTRICAL: GROUNDING CONNECTION USING AN ADAPTOR Grounded In the USA this machine operates on a standard 15 Grounded Outlet Box Outlet Adaptor amp 115V, 60 hz, A.C. power circuit. The amp, hertz, FIGURE A and voltage are listed on the data label found on each machine.
  • Page 10: Safety Label Location

    Safety Safety Label Location NOTE: This drawing indicates the location of safety label on the machine. If at any time the label becomes illegible, promptly replace it. WARNING LABEL 86198960 86394670 - VacPac...
  • Page 11 NOTES 86394670 - VacPac...
  • Page 12: Operations

    VP6/UVP6 = 6 Quart VP10/UVP10 = 10 Quart General Dimensions/Weight Vacuum Hose: 5' (1.5m) X 1.5" (3.8cm) Diameter Weight: VP6/UVP6 = 10.1 Lb. (4.6 Kg) VP10/UVP10 = 11.0 Lb. (5.0 Kg) Depth: 10.5" (267mm) Height: VP6/UVP6 = 19.8" (503mm) VP10/UVP10 = 23.7" (602mm) Width: 8.8"...
  • Page 13: Equipment Set-Up

    Operations Equipment Set-Up Machine Operation 1. Insert hose (90° swivel cuff end) into top of unit. The unit is a commercial vacuum designed for dry Attach desired cleaning tool. pick-up only. 2. Unclip waist and sternum straps. Loosen 1. Place a paper bag inside the cloth bag in the shoulder straps and hip belt.
  • Page 14: Maintenance

    Maintenance Daily Maintenance (At the end of each working day) 1. Turn cloth filter bag inside out and brush clean. Do not use a wire brush. Cloth bags can be vacuumed with another machine or washed occasionally in warm water using a mild, water-based soap without harming filtering capacity.
  • Page 15: Troubleshooting

    Maintenance Troubleshooting PROBLEM. CAUSE SOLUTION No power, vacuum Is the cord plugged in? Plug in cord. motor will not run Circuit breaker tripped in building. Reset breaker. Motor will restart after cooling down. To prevent repeated tripping, clear all restric- tions out of hose and tools, replace paper Thermal protector tripped filter bag.
  • Page 16 Notes 86394670 - VacPac...
  • Page 17: Parts

    Parts PARTS 86394670 - VacPac...
  • Page 18: Vacpac

    VacPac 86394670 - VacPac...
  • Page 19 FASTENER SET, MOTOR MOUNT 86198810 FASTENER SET, BACK PLATE (TOP) 86198820 FASTENER SET, BACK PLATE (BTM) 86198930 FOAM, DIFFUSER 86198990 LATCH, WAIST BELT 86312540 HARNESS ASSY, VP6/VP10 86198940 HOSE ASSEMBLY 86392580 SCREW, M5-.8 X 14 PPNHMS DIN7985 86394670 - VacPac...
  • Page 20: Wiring Diagram

    Wiring Diagram SWITCH SEE VACPAC BOM FOR ALL OTHER PART NUMBERS QUICK DISCONNECT MOTOR 86394670 - VacPac...
  • Page 21 Wiring Diagram REF PART NO. QTY DESCRIPTION SERIAL NO. NOTES 86218010 FUSE ASM, VP6/10 86394670 - VacPac...
  • Page 22 Notes: 86394670 - VacPac...
  • Page 23: Options

    Options OPTIONS...
  • Page 24: Accessory Tools And Kits

    Accessory Tools and Kits 86394670 - VacPac...
  • Page 25 Accessory Tools and Kits SERIAL NO. REF PART NO. QTY DESCRIPTION NOTES FROM 86041440 VAC PAC SPOTLITE KIT 86041450 VAC QUICK SWEEP 86090220 WAND, SPOTTER 86063120 TOOL, SPOT LITE 86033020 TOOL, QUICK SWEEP 86286660 WAND, DOUBLE CURVE 2 PC. ALUM. INCL 7 &...
  • Page 26: Suggested Spare Parts

    Suggested Spare Parts PART NO DESCRIPTION NOTES: 86198840 VAC PAC TM CLOTH BAG FOR VP10 ONLY 86198900 FILTER BAG LINER, CLOTH VP6 86198850 FILTER BAG, VP10 PAPER PKG/10 86198910 FILTER BAG, VP6 PAPER PKG/10 86392850 FILTER, DOME, VAC MOTOR, HEPA...
  • Page 27: Serial Numbers

    Serial Numbers REF. NO. MODEL: SERIAL #: 86394670 - VacPac...
