Genelec 4410A Operating Manual page 4

ACOUSTIC
AXIS

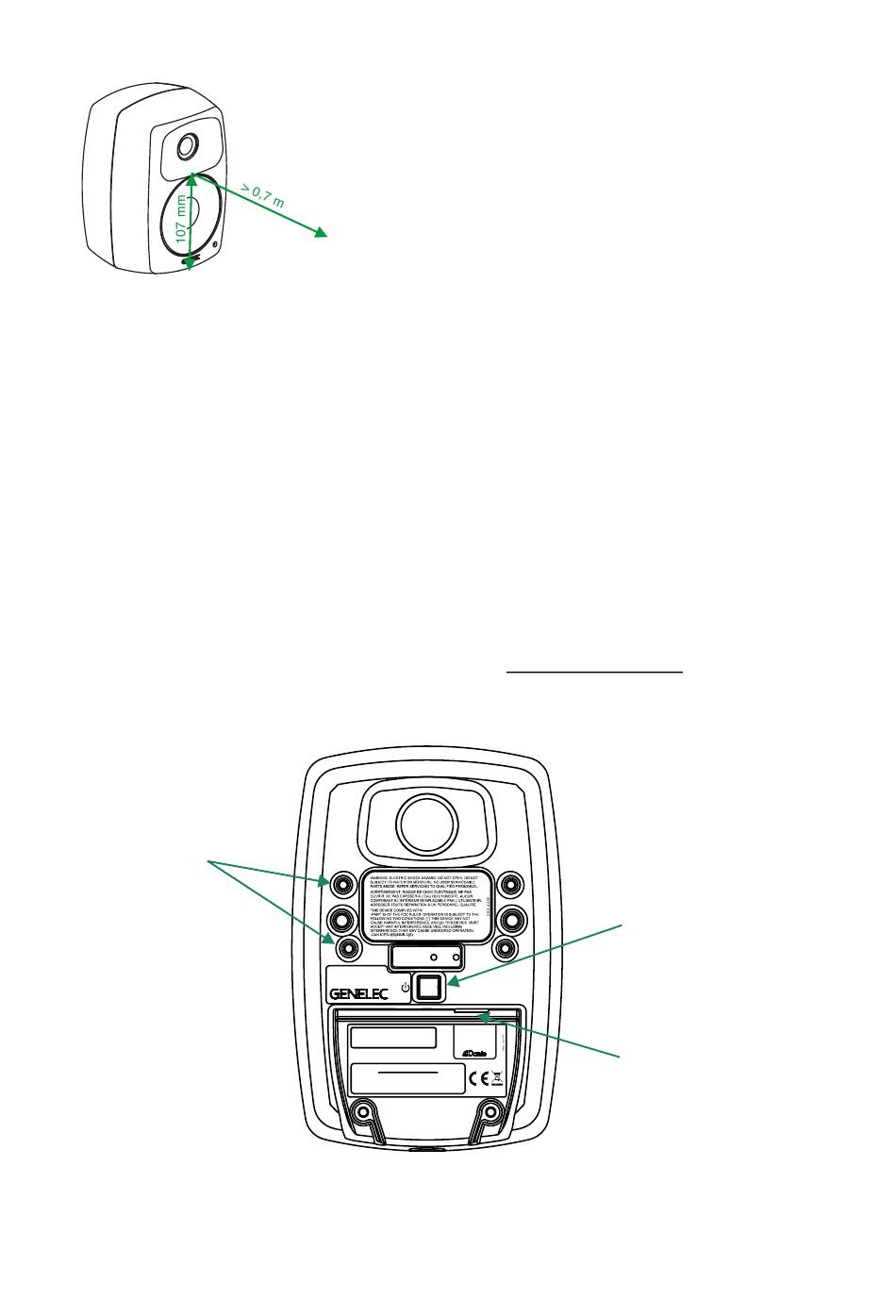

Figure 1. Location of the acoustic axis.
The two primary mounting points are on the rear side. Use these for mounting
brackets or the keyhole wall mount adapter. They have metric M6 x 8.5 mm
holes (thread type is metric M6, thread depth is 8.5 mm). Do not exceed the
thread depth as this can result in failure of the thread. The base of the
loudspeaker carries a 3/8 in UNC-threaded hole compatible with certain standard
microphone stands. This can be used for additional support. The UNC thread is
not compatible with metric threads. Do not use this point as the primary mounting
point. Pay attention to mounting screw lengths. Do not use screws exceeding the
depth of the hole as this can destroy the threads in the mounting points. Do not
over-tighten. Do not use very short screws as the thread length covered by such
a screw is not enough to hold the weight of the speaker.
See the Genelec Accessories Catalogue on www.genelec.com for a complete
list of mounting hardware options. The accessories can come with instructions on
the proper methods of installation.
THREADS
FOR WALL
AND CEILING
MOUNTS
Figure 2. Connectors and controls in the 4410A rear panel.
3
4410A
292 4410S
SMART IP SPEAKER
ETHERNET
PoE+
AES67
MAC ADDRESS
POWER SWITCH
ETHERNET PORT
