mute
•
zone level control
•
settings profile selection
Normally, level is adjusted at the stream source. In the Smart IP manager
software, the output level of the Zone or a complete system can be set by
adjusting the level in the Smart IP Manager software using the '-' and '+' buttons.
Each zone can have up to five different Profiles. A Profile contains a collection of
settings including settings of all acoustical controls, the input selection and the
level and delay alignments. These are first designed and stored in each
loudspeaker. Then, each zone can work as a system. Selecting a Profile will
collectively recall all settings stored under this profile in each loudspeaker
belonging in this Zone.
Unallocated Smart IP
devices are listed under
"Default" zone.

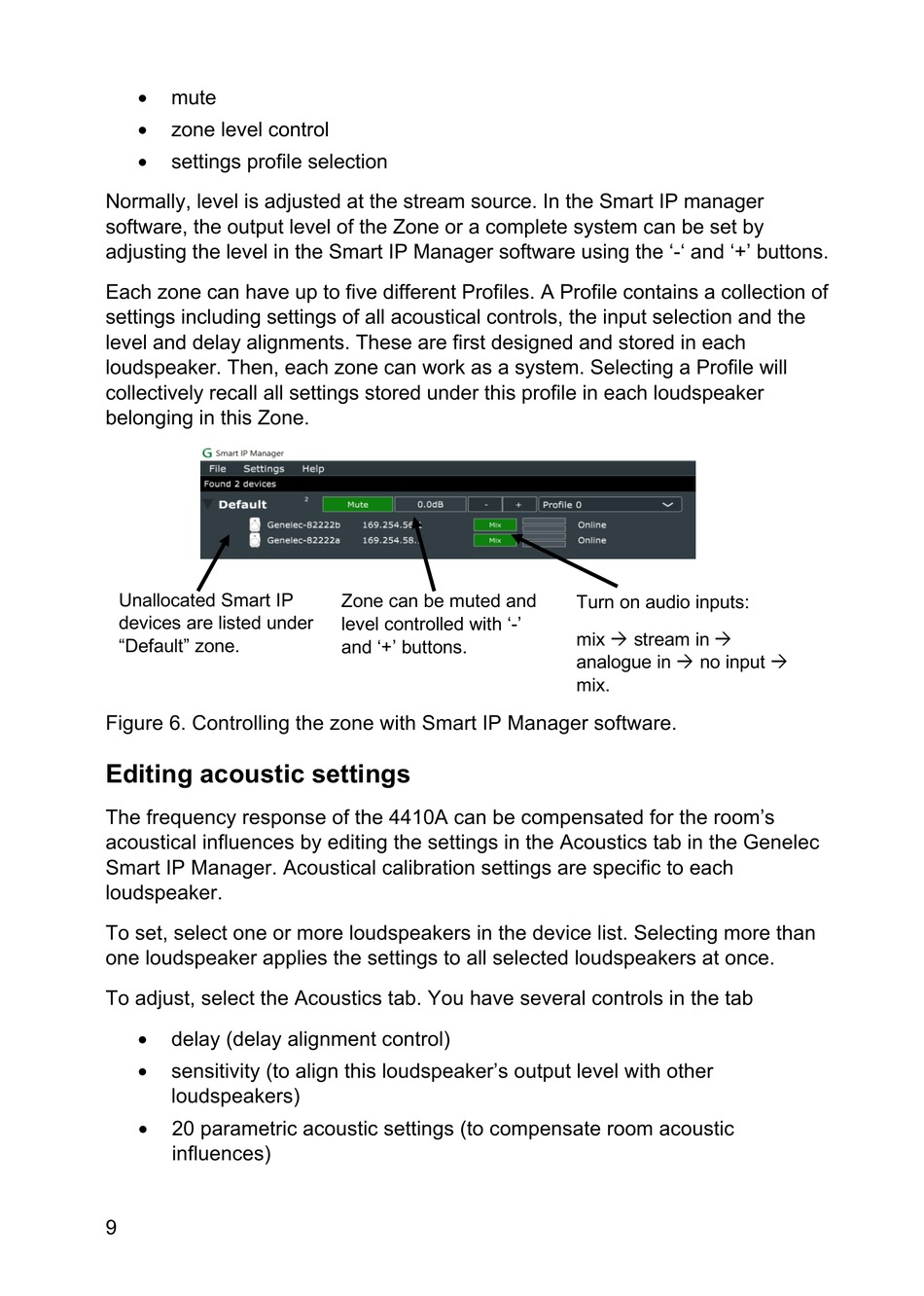

Figure 6. Controlling the zone with Smart IP Manager software.
Editing acoustic settings
The frequency response of the 4410A can be compensated for the room's
acoustical influences by editing the settings in the Acoustics tab in the Genelec
Smart IP Manager. Acoustical calibration settings are specific to each
loudspeaker.
To set, select one or more loudspeakers in the device list. Selecting more than
one loudspeaker applies the settings to all selected loudspeakers at once.
To adjust, select the Acoustics tab. You have several controls in the tab
•
delay (delay alignment control)
•
sensitivity (to align this loudspeaker's output level with other
loudspeakers)
•
20 parametric acoustic settings (to compensate room acoustic
influences)
9
Zone can be muted and
level controlled with '-'
and '+' buttons.
Turn on audio inputs:
mix à stream in à
analogue in à no input à
mix.
