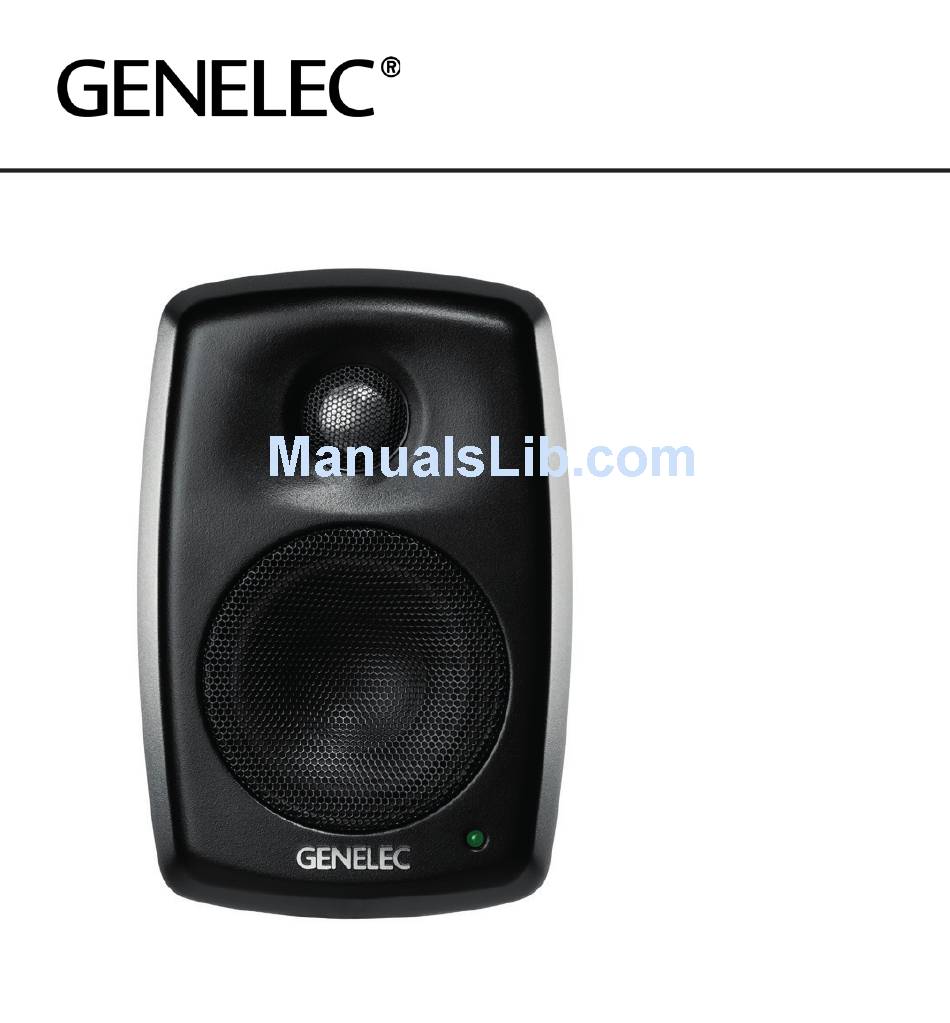

  • Page 1 4010A Operating Manual...

  • Page 2: Active Loudspeaker

    They will switch on automati- fiers, active crossover filters and protection circuitry. cally. The 4010A is designed for indoor use only, in tem- peratures between 15 to 35 degrees Celsius and Autostart relative humidity between 20 % and 90 %.
  • Page 3 MAINS MAINS INPUT 50 / 60 Hz 30 W INPUT CONNECTOR 100 - 240 V~ 4010A ACTIVE CONNECTOR SPEAKER SYSTEM MADE IN FINLAND www.genelec.com 710127 Figure 3. Control and connector layout on the rear panel of a 4010A. English 3...

  • Page 4: Mounting Considerations

    Mounting considerations Setting the tone controls Align the loudspeakers correctly The frequency response of the Genelec 4010A can Always place the loudspeakers so that their acous- be adjusted to match the acoustic environment by tic axes (see figure 1) are aimed towards the center setting the tone control switches on the rear panel.

  • Page 5: Mounting Options

    There are no user serviceable parts within the loud- interference that may cause undesired operation. speaker. Any maintenance or repair of the 4010A should only be done by qualified service personnel. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
  • Page 6 Genelec Oy 4010 (dBr) vs freq (Hz) 10 Jan 13 Figure 5. The upper curve group shows the horizontal directiv- ity characteristics of the 4010A measured at 1 m. The lower curve shows the system's power re- sponse. 70 100 6 English...

  • Page 7: System Specifications

    SYSTEM SPECIFICATIONS CROSSOVER SECTION Lower cut-off frequency, –6 dB: < 67 Hz Input connector 7 kOhm: pin 1 +, pin 2 - Upper cut-off frequency, –6 dB: > 25 kHz pin 3 gnd Free field frequency response (± 2.5 dB): 74 Hz–20 kHz Input level for 100 dB SPL output at 1 m: -6 dBu...
  • Page 8 Jianwai SOHO, Building 12, Room 2605 D-1504, Chaoyang District Beijing 100022, China Phone +86 10 8580 2180 Fax +86 10 8580 2181 Email genelec.china@genelec.com www.genelec.com Genelec Document D0117R002b. Copyright Genelec Oy 2.2016. All data subject to change without prior notice.
