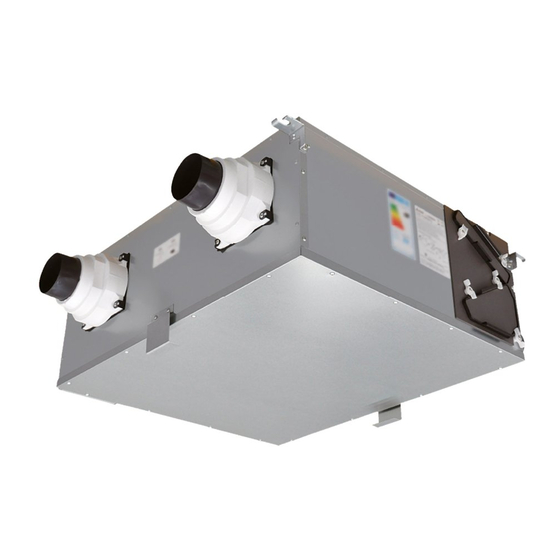

Mitsubishi Electric VL-220CZGV-E Manual

Mitsubishi Electric VL-220CZGV-E Manual

Hide thumbs Also See for VL-220CZGV-E:
1
2
3
4
5
6
7
8

Advertisement

Quick Links

Download this manual
MODEL
Heat exchange system
Heat exchanger material
Cladding
Heat insulation material
Motor
Blower
Filter
Duct connecting
Duct connecting cover
Surrounding air condition
Return(Suction) air condition Shall be lower than 40℃, 95%RH
Supply fan operation under
low outdoor temperature
Function
Weight
Electrical power supply
Ventilation mode
Fan speed
Running current
[A]
Input power
[W]
3
Air volume
[m
/h]
[L/s]
External static pressure [Pa]
Temperature exchange
efficiency [％]
Noise
[dB]
Insulation resistance
Dielectric strength
Maximum current
[A]
■Characteristic curve
■Attention
1. The running current, the input power, the efficiency and the noise are based on the rating air volume, and
230V/50Hz. The noise is measured at 1.5m under the center of the unit in an anechoic chamber.
2. Temperature exchange efficiency (%) is based on winter condition.
3. Mitsubishi Electric measures figures in the chart according to Japan Industrial Standard (JIS B 8628), therefore
the characteristic curves are measured by chamber method.
SPECIFICATIONS
VL-220CZGV-E
Heat recovery ventilating system
water-resistant paper sensible heat exchanger
Galvanized steel sheet
Noncombustibility polyethylene foam
EC motor
200mm diameter centrifugal fan
Non-woven fabrics filter (Gravitational method 82% , EN779:2012 : G3 )
Synthetic resin
Styrene foam
Shall be between 0℃ and 40℃, 80%RH or less
0℃ to -5℃ : Intermittent operation 24 min ON, 6 min OFF.
-5℃ or less : Continuous supply air stopped
Heat recovery ventilation/ Bypass ventilation, Fan speed 1,2,3,4
（When the optional motorized damper (P-133DUE-E) is used, bypass ventilation mode can be
switched.）
31kg
220-240V/50Hz, 220V/60Hz
Fan Speed 4
0.60
80
230
64
164
82.0
31.0
10MΩ or more
AC 1000V 1 minute
0.8
DATE
5-Nov-2015
Heat recovery mode
Fan Speed 3
Fan Speed 2
0.29
35
165
46
84
84.0
25.0
※Specification may be subject to change without notice.
TYPE
Heat Recovery Ventilator LOSSNAY
MODEL
VL-220CZGV-E
N15SGGD0004A
NUMBER
SIGN
Fan Speed 1
0.18
0.11
18.5
8.5
120
65
33
18
44
13
85.0
86.0
19.0
14.0
1/5

Advertisement

loading

Related Manuals for Mitsubishi Electric VL-220CZGV-E

Summary of Contents for Mitsubishi Electric VL-220CZGV-E

  • Page 1 230V/50Hz. The noise is measured at 1.5m under the center of the unit in an anechoic chamber. 2. Temperature exchange efficiency (%) is based on winter condition. 3. Mitsubishi Electric measures figures in the chart according to Japan Industrial Standard (JIS B 8628), therefore the characteristic curves are measured by chamber method.
  • Page 2 8. Please note a clear working space is required around the installed product to allow the cover to be removed and provide sufficient access for maintenance such as filter change. 9. The product must be installed indoors. OUTLINE DRAWINGS ※Specification may be subject to change without notice. DATE TYPE Heat Recovery Ventilator LOSSNAY MODEL VL-220CZGV-E 5-Nov-2015 N15SGGD0004A NUMBER...

  • Page 3: Wiring Diagrams

    17. Please understand that expenses incurred in recovery work shall be borne by the contractor. 18. Select proper circuit breaker according to the electrical current information in the chart below. WIRING DIAGRAMS ※Specification may be subject to change without notice. DATE TYPE Heat Recovery Ventilator LOSSNAY MODEL VL-220CZGV-E 5-Nov-2015 N15SGGD0004A NUMBER...

  • Page 4: Safty Notes

    4. A filter maintenance sign is indicated on the remote controller. (To use the function, change the initial setting according to the Instllation Manual for VL-220CZGV-E) 5. The default fan speed value can be adjusted slightly. Use the PZ-61DR-E remote controller to reset the speed. After the unit is installed, when if the air volume is slightly lower or bigger than the desired airflow, it is possible to make fine adjustments.
  • Page 5 (Even while the supply air fan has stopped, the Lossnay unit sometimes operates periodically to measure the outdoor air temperature) SAFTY NOTES ※Specification may be subject to change without notice. DATE TYPE Heat Recovery Ventilator LOSSNAY MODEL VL-220CZGV-E 5-Nov-2015 N15SGGD0004A NUMBER...

  • Page 6: Specifications

    MODEL P-133DUE-E SIGN ■Characteristic table Electrical power supply 220V 50Hz 230V 50Hz 240V 50Hz 220V 60Hz Runnning current 0.014 0.014 0.015 0.012 Input power Pressure loss RA2：12 [Pa] RA3：15 (220m /h at the time) Weight [kg] Apply duct diameter [mm] φ100，φ125，φ150 ■Pressure loss characteristic (L/s) Air volume...

  • Page 7: Outline Drawings

    ■Outline drawings ■Wiring diagrams ・Connect the connector of P-133DUE-E connection 　cord to CN7 on the PCB of VL-220CZGV-E. ・Connect the ground wire of the damper to 　VL-220CZGV-E. ■Mounting bracket fixing method ■Accessories ※Specification may be subject to change without notice.
  • Page 8 ■Standard installation examples P-133DUE-E ■General information 1. The damper is for installation between Lossnay and the return air (RA) side duct, and switches the air duct between the heat exchanger and bypass ventilation. Do not use it for any other purpose (commercial use, etc.). The incorrect operation may be a cause of a malfunction.
