Hans Grohe Aqittura M91 210 1jet sBox SodaSystem 76806 Series Instructions For Use/Assembly Instructions
Hide thumbs
Also See for Aqittura M91 210 1jet sBox SodaSystem 76806 Series:
- Instructions for use/assembly instructions (36 pages)
Advertisement
Quick Links
DE Gebrauchsanleitung / Montageanleitung
FR Mode d'emploi / Instructions de montage
EN Instructions for use / Assembly instructions
IT Istruzioni per l'uso / Istruzioni per Installazione
ES Modo de empleo / Instrucciones de montaje
NL Gebruiksaanwijzing / Handleiding
DK Brugsanvisning / Monteringsvejledning
PL Instrukcja obsługi / Instrukcja montażu
CS Návod k použití / Montážní návod
FI Käyttöohje / Asennusohje
SV Bruksanvisning / Monteringsanvisning
LT Vartotojo instrukcija / Montavimo instrukcijos
HR Upute za uporabu / Uputstva za instalaciju
ET Kasutusjuhend / Paigaldusjuhend
LV Lietošanas pamācība / Montāžas instrukcija
NO Bruksanvisning / Montasjeveiledning
HU Használati útmutató / Szerelési útmutató
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18

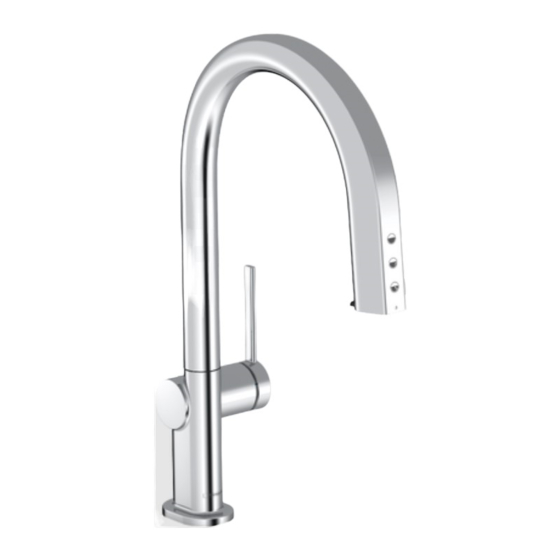

Aqittura M91
210 1jet sBox SodaSystem
76806XXX
76807XXX
76808XXX
76836XXX
Aqittura M91
210 1jet sBox
76833XXX
1/2
Advertisement
Related Manuals for Hans Grohe Aqittura M91 210 1jet sBox SodaSystem 76806 Series
Summary of Contents for Hans Grohe Aqittura M91 210 1jet sBox SodaSystem 76806 Series
- Page 1 DE Gebrauchsanleitung / Montageanleitung FR Mode d'emploi / Instructions de montage EN Instructions for use / Assembly instructions IT Istruzioni per l'uso / Istruzioni per Installazione ES Modo de empleo / Instrucciones de montaje NL Gebruiksaanwijzing / Handleiding DK Brugsanvisning / Monteringsvejledning PL Instrukcja obsługi / Instrukcja montażu CS Návod k použití / Montážní návod FI Käyttöohje / Asennusohje SV Bruksanvisning / Monteringsanvisning LT Vartotojo instrukcija / Montavimo instrukcijos Aqittura M91 HR Upute za uporabu / Uputstva za instalaciju 210 1jet sBox SodaSystem 76806XXX ET Kasutusjuhend / Paigaldusjuhend 76807XXX 76808XXX LV Lietošanas pamācība / Montāžas instrukcija 76836XXX Aqittura M91 NO Bruksanvisning / Montasjeveiledning 210 1jet sBox...
- Page 2 English Setting portioned water output Safety Notes (see page 29) Gloves should be worn during installation to prevent crushing and cutting • Possible for different water types and volumes. injuries. • It is possible to set an individual output volume up to max. 1100 ml for each of The hot and cold supplies must be of equal pressures. the three water types. Installation Instructions • If the desired volume was exceeded by mistake, stop the teaching procedure by • Prior to installation, inspect the product for transport damages. After it has been waiting for approx. 10 s and then restart it. installed, no transport or surface damage will be honoured. Retrieving portioned water output • The pipes and the fixture must be installed, flushed and tested as per the (see page 29) applicable standards. • The plumbing codes applicable in the respective countries must be observed. • A suitable water volume for the desired water volume must be taught before- hand. • During initial start-up and after servicing, air in the fittings can cause noise. After • The water output can be interrupted at any time by pressing any button. switching the jet on and off about 15 times, the noise will stop. Environmental Protection Technical Data Operating pressure: max. 1 MPa The packaging materials can be recycled. Please do not throw the packaging into household waste, but recycle it.
- Page 3 (3 Nm) SW 8 mm SW 19 mm (4 Nm) SW 8 mm SW 19 mm SW 19 mm (4 Nm) (4 Nm) 150° 110° 60°...
- Page 4 150° 75° 75° 105° 45° 19 x 15° 105° 45° 110° 55° 55° 110° 85° 25° 19 x 15° 85° 25°...
- Page 5 60° 30° 30° 60° 0° 60° 19 x 15° 60° 0° SW 22 mm SW 22 mm SW 19 mm (4 Nm) SW 22 mm SW 17 mm SW 22 mm Armaturenfett Grease 滑油 SW 17 mm (8 Nm)
- Page 6 max. ± 20°...
- Page 7 max. ± 20° 43333000 max. ± 20° Aqittura M91 SodaBase 76835000...
- Page 8 Aqittura M91 210 1jet sBox SodaSystem 76806XXX 76807XXX 76808XXX 76836XXX Aqittura M91 210 1jet sBox 76833XXX 150° Ø 34 max. 500 G3/8 Ø G3/8...
- Page 9 0,60 0,55 0,50 0,45 0,40 0,35 0,30 0,25 0,20 0,15 0,10 0,05 0,00 Q = l/min 9 12 15 18 21 24 27 30 Q = l/sec SW 8 mm SW 8 mm...
- Page 10 www.hansgrohe.com/ www.hansgrohe.com/ www.hansgrohe.com/ www.hansgrohe.com/ cleaning-recommendation cleaning-recommendation cleaning-recommendation cleaning-recommendation Reinigungsempfehlung / Garantie / Kontakt Puhdistussuositus / Takuu / Kosketus Recommandation pour le nettoyage / Garanties / Contact Rengöringsrekommendationer / Garanti / Contacto Cleaning recommendation / Warranty / Contact Valymo rekomendacijos / Garantija / Kontaktai Raccomandazione di pulizia / Garanzia / Contatto Preporuke za čišćenje / Garancija / Kontakt Recomendaciones para la limpieza / Garantía / Contacto Puhastussoovitused / Garantii / Kontakt Aanbevelingen inzake reiniging / Garantie / Contact Tīrīšanas ieteikumi / Garantija / Kontakti Rengøringsvejledning / Garanti / Kontakt Anbefaling for rengjøring / Garanti / Kontakt Zalecenie dotyczące pielęgnacji / Gwarancja / Kontakt Tisztítási tanácsok / Garancia / érintkezés Doporučení k čistění / Záruka / Kontakt SW 8 mm SW 8 mm...
- Page 12 Bedienung Ovládání Instructions de service Käyttö Operation Hantering Procedura Eksploatacija Manejo Kasutamine Bediening Lietošana Brugsanvisning Betjening Obsługa Përdorimi https://www.hansgrohe.com/smart-living/app max. 760 mm...
- Page 13 1000 ml 1000 ml 10 s 1000 ml 1000 ml...
- Page 14 12 0 4 5 0 5 6 8 6 0 0 4 5 5...
- Page 16 43333000 60 °C 10 °C 0,3 MPa SW 2,5 mm 50°C 55°C 43°C 60°C 38°C 36°C SW 2,5 mm (3,5 Nm)
- Page 17 Aqittura M91 210 1jet sBox SodaSystem 76806XXX 76807XXX 98423000 76808XXX (8x1,5) 76836XXX Aqittura M91 210 1jet sBox 76833XXX 96507000 94698XXX (450 mm) 93754000 (1850 mm) 94512000 98516000 96456000 98475000 93736XXX (13x1,5) 43333000 98430000 (13x1,5) 93737XXX 93748000 93750000 96099000 98446000 (M5x5) 94513000 98211000 (21x2,5) 98391000 (29x2)
- Page 18 Hansgrohe · Auestraße 5 – 9 · D-77761 Schiltach · Telefon +49 (0) 78 36/51-1282 · Telefax +49 (0) 7836/511440 E-Mail: info@hansgrohe.com · Internet: www.hansgrohe.com...
