Inside the HVU cabinet
Fig. 11: Protective earth logo located on the inside of
the HVU close to the common ground.

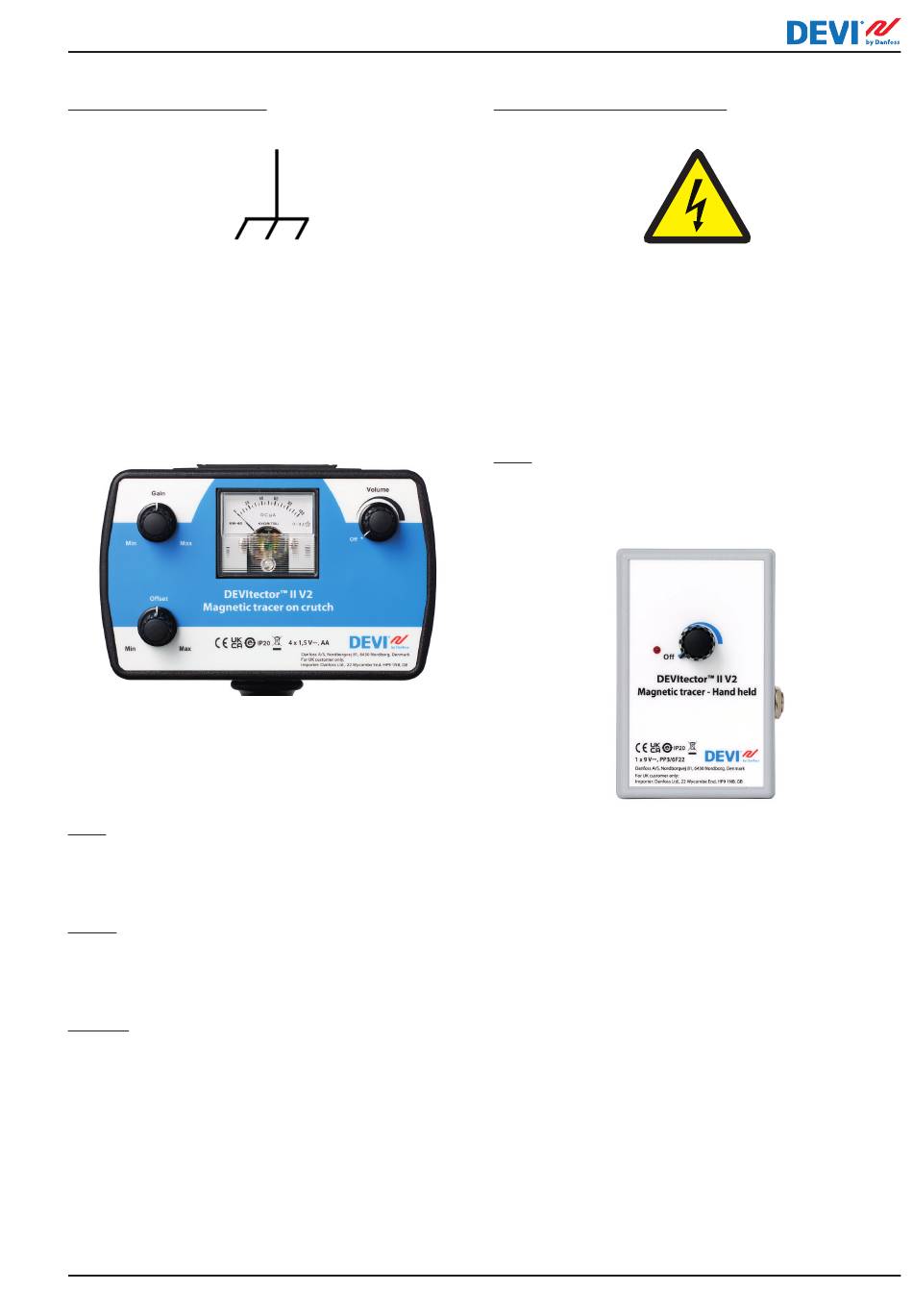

User Interface of Magnetic tracer on crutch

Fig. 13: Control panel of the large Magnetic tracer on
crutch unit.
Control items are explained below.
Gain:
Controls the amplification of the sensor signal as
shown on the meter. Turn clockwise to increase, and
counterclockwise to decrease amplification.
Offset:
The regulator "zero balance" allows in some cases to
compensate for induction of a signal reflected by the
pointer indicator.
Volume:
Controls the acoustic amplification of the
sensor signal. Turn clockwise to increase, and
counterclockwise to decrease amplification.
BC421332622232en-010101
DEVItector™ II V2
High voltage Outlet Cables
Fig. 12: High voltage Outlet Cables marking.

User interface of Magnetic tracer - Hand held

Gain:
Controls the amplification of the sensor signal as
shown on the meter. Turn clockwise to increase, and
counterclockwise to decrease amplification.
Fig. 14: Control panel of the small Magnetic tracer - Hand
held unit.

Tracers safety

Both Tracer units are battery powered and contains
only safe voltage. Can only be used together with
DEVItector™ burner unit while in trace mode.
HIGH VOLTAGE
10 kV~ / 400 V⎓
