Attach Multi-Grip to Uprights
1. Lay the uprights on the ground facing upwards. Leave space between them for the Multi-Grip Bar.
2. Lay the Multi-Grip Bar on the ground (Figure 7) with the bar facing up between the uprights.
3. Position the Multi-Grip Bar (9) so that the holes align with the top hole of both uprights (Figure 7).
Using the 4" hex head bolts (10) 5/8" washers (5), and 5/8" lock nuts (6), attach the Multi-Grip Bar
(9) to the upright (Figure 7), (hand tighten nuts onto bolts, they will be removed later to attach
upper linkage arms).
4. Using the 3-1/2" hex head bolts (7) 5/8" washers (5), and 5/8" lock nuts (6), fully tighten the bolts
through the third hole of the upright.

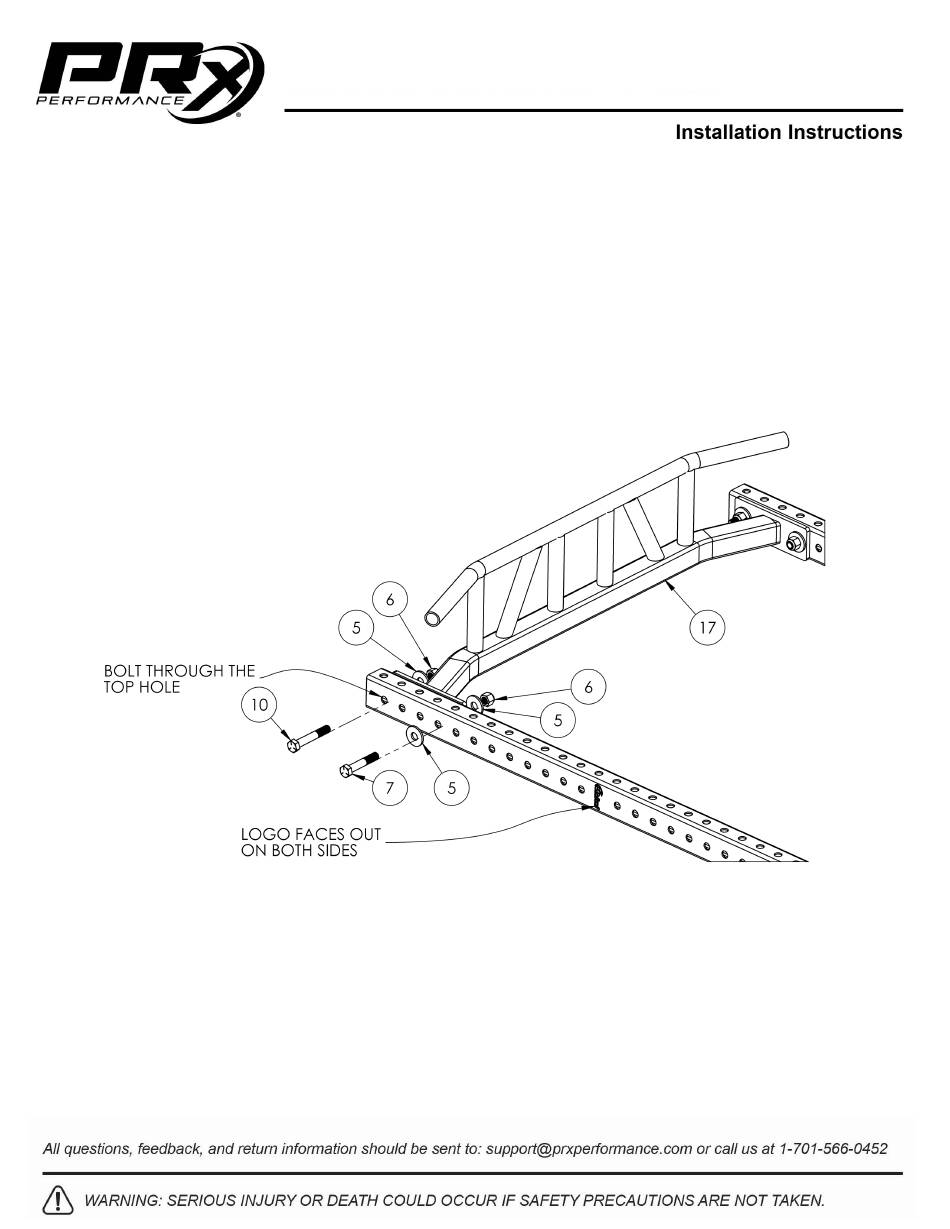

Figure 7: Attaching the Multi-Grip Bar to the Uprights
