B-Series Camera Setup Guide
Version 1.0, Mar-2022

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the B Series and is the answer not in the manual?

Questions and answers

Related Manuals for Omron B Series

Summary of Contents for Omron B Series

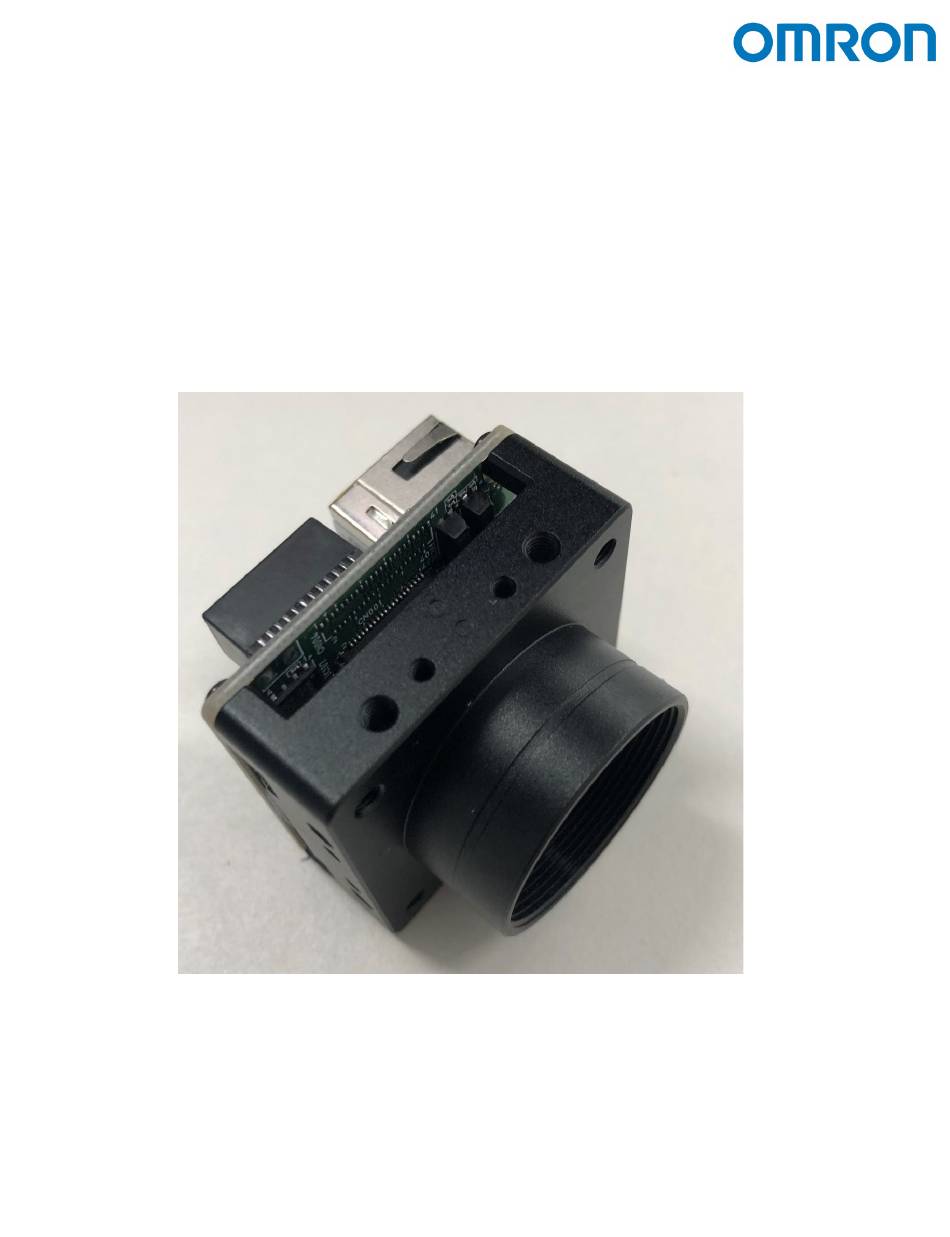

  • Page 1 B-Series Camera Setup Guide Version 1.0, Mar-2022...

  • Page 2: How To Use The Guide

    Additionally, by hovering the mouse over the left hand side of a section title, a triangular icon will appear that can be clicked to expand or collapse that particular section. 3. Double click on the icon to open embedded documents. Omron Automation | © 2022 Omron. All Rights Reserved. | omron.automation.com...

  • Page 3: Table Of Contents

    Download and Install the SDK Software ....................14 Set up PC IP Settings .......................... 15 Launch the B-Series Software ......................16 Camera Configuration .......................... 17 Acquire an Image ..........................17 Omron Automation | © 2022 Omron. All Rights Reserved. | omron.automation.com...

  • Page 4: Guide Objective And Terminology

    Ensure that your mounting screws do not exceed the allowable depths of 4mm for the M4 holes and 3.5mm for the M2 holes. Refer to the specific diagram in the manual for your part number. Omron Automation | © 2022 Omron. All Rights Reserved. | omron.automation.com...

  • Page 5: Install A Lens

    The training “How to Select a Lens” may help ion the calculations. To attach the lens screw the lens on to the camera. Torque should be “hand tight”. Omron Automation | © 2022 Omron. All Rights Reserved. | omron.automation.com...
  • Page 6 Omron Automation | © 2022 Omron. All Rights Reserved. | omron.automation.com...

  • Page 7: Connect The Ethernet Cable And I/O Cable

    In order to connect a B-Series Camera to a PC, an Ethernet cable is required. There is also an optional I/O cable. 1. To attach the Ethernet cable, press it in to the RJ-45 jack. Omron Automation | © 2022 Omron. All Rights Reserved. | omron.automation.com...
  • Page 8 If you have a POE compliant B-Series camera (STC-BBSxxxxPOE-BC) i. To your PC, if you have a POE NIC card in your PC ii. To a POE injector. Recommended injector = Omron V330-AP1. The injector should be complaint with IEEE802.3af. Make connections as specified in the documentation for the POE injector.
  • Page 9 To a POE switch. The switch should be complaint with IEEE802.3af. Make connections as specified in the documentation for the POE switch. Omron Automation | © 2022 Omron. All Rights Reserved. | omron.automation.com...
  • Page 10 Omron Automation | © 2022 Omron. All Rights Reserved. | omron.automation.com...
  • Page 11 If you have a non-POE camera (STC-BBSxxxxGE-BC) i. To your PC ii. To your Ethernet switch Omron Automation | © 2022 Omron. All Rights Reserved. | omron.automation.com...
  • Page 12 Warning: The POE units and the non-POE units have different interface specifications. Please read the manual carefully. 4. Wire the other end of the I/O cable, per the Camera manual. Omron Automation | © 2022 Omron. All Rights Reserved. | omron.automation.com...

  • Page 13: Connect The Power Supply

    Use a 12V DC power supply with a minimum rating of 5W ii. Recommended power supply = S8VK-G01512 iii. Ensure that the power supply AC cable is disconnected iv. Connect per the B-Series camera manual. Omron Automation | © 2022 Omron. All Rights Reserved. | omron.automation.com...

  • Page 14: Download And Install The Sdk Software

    1. Down load the SDK software, using the below link: SentechSDK(v1.1.2_Update5).zip (C 2. Install the SentechSDK software as follows: a. Unzip the SentechSDK(version).zip folder b. Run the SentechSDKInstaller.exe file Omron Automation | © 2022 Omron. All Rights Reserved. | omron.automation.com...

  • Page 15: Set Up Pc Ip Settings

    Set up PC IP Settings 1. The best IP setting for the B – Series camera is “Obtain an IP address automatically” Omron Automation | © 2022 Omron. All Rights Reserved. | omron.automation.com...

  • Page 16: Launch The B-Series Software

    3. Click the start icon on the top left. 4. Right click on the viewing area and select Zoom -> Fit to the Window 5. You should now see the camera video. Omron Automation | © 2022 Omron. All Rights Reserved. | omron.automation.com...

  • Page 17: Camera Configuration

    1. Configure the camera settings as need, using the below attached directions. Machine Vision Acquire an Image 1. Select File -> Save Still Image … 2. Select the file location, file name and format. Omron Automation | © 2022 Omron. All Rights Reserved. | omron.automation.com...
