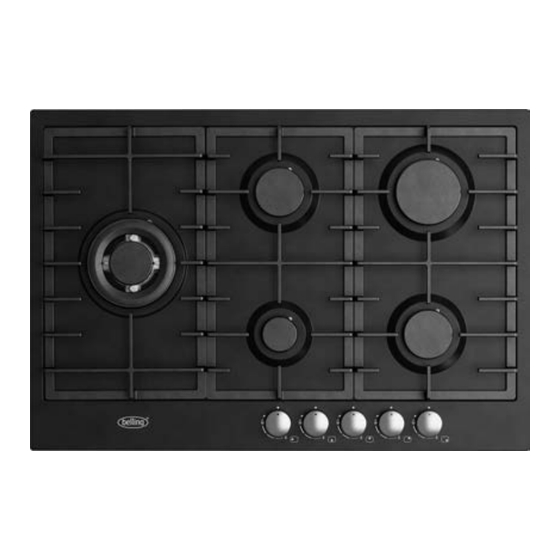

- Page 1 BCT60CSS/BCT60GCBK BCT75CSS/BCT75GCBK BCT90CSS/BCT90GCBK Gas Cooktops INSTRUCTION MANUAL PLEASE READ THE INSTRUCTION MANUAL CAREFULLY BEFORE USING THE UNIT. www.belling.com.au...
-
Page 2: Product Details
For future reference we suggest that you staple a copy of your purchase receipt here and complete the below so the information is always at hand. Depending on the Belling product purchased you may require a qualified electrician, gas installer or plumber. Below is a handy place to store these details... -
Page 3: General Notice
GENERAL NOTICE We invite you to read this instruction booklet carefully, before installing and using the equipment. It is very important that you keep this booklet together with the equipment for any future consultation. If this equipment should be sold or transferred to another person, make sure that the new user receives the booklet, so that they can learn how to operate the appliance and read the corresponding notice. -
Page 4: Instructions For The User
INSTRUCTIONS FOR THE USER It is necessary that all the operations regarding the installation, adjustment and adaptation to the type of gas available are carried out by authorised personnel, in conformity with the regulations in force. The specific instructions are described in the booklet section intended for the installer. - Page 5 INSTRUCTIONS FOR THE USER 1 Burner 3 Injector 2 Flame safeguard sensor 4 Ignition spark plug If you have a problem with the cooktop, check the table below. You may be able to solve the problem and this will save you from paying for a service call.
-
Page 6: Instructions For The Installer
INSTRUCTIONS FOR THE USER CLEANING Wash with warm soapy water and rinse with clean water. Where the stainless steel has become extremely dirty Before any operation, disconnect the appliance from with signs of surface discolouration (due to periods of the electrical supply. neglect or misuse) use a stainless steel cleaner Don’t use a steam cleaner for the cleaning the hob. -
Page 7: Installation Room
INSTRUCTIONS FOR THE INSTALLER Adjacent walls, cupboards and protection for guarantee an adequate ventilation, with the lower combustible materials. air entering with a cross section of at least 200cm and the higher air exiting with a cross section of at Ensure that the appliance is installed in least 60 cm accordance with clauses 6.2.5 and 6.10.1.1 of AS/... - Page 8 INSTRUCTIONS FOR THE INSTALLER configured by the component maker for use with sealing washersupplied. Natural Gas. The appliance installer is not required The ½” parallel thread connects to the manifold, and to make an adjustment to obtain the correct outlet the sealing washer is placed between the manifold pressure setting.
-
Page 9: Testing Appliance Operation
INSTRUCTIONS FOR THE INSTALLER Once these checks have been completed, if the Adjusting the burners regulator still fails to perform in a satisfactory The lowest flame point must always be properly manner it should be replaced. adjusted and the flame must remain on even if there is an abrupt shift from the maximum to the Electrical connection minimum position. - Page 10 MAXIMUM MINIMUM...
- Page 11 Electrical Supply Gas Connection Cord BCT60GCSS (**) MODEL: BCT60GCBK (**) Depth of cooktop casing from benchtop surface : 44 mm Gas Connection Electrical Supply Cord MODEL: BCT75GCSS BCT75GCBK Depth of cooktop casing from benchtop surface : 44 mm Gas Connection Electrical Supply Cord MODEL: BCT90GCSS...
-
Page 12: Wiring Diagram
TECHNICAL CHARACTERISTIC TABLES TAPE BY NORMAL INJECTOR NOMINAL BURNERS PASS PRESSURE DIAMETER HEAT INPUT DIAMETER (MJ/h) N° DESCRIPTION 1/100 mm 1/100 mm Universal LPG 2.75 RAPID Natural 1.00 Adjust. 11.5 Universal LPG 2.75 SEMI-RAPID Natural 1.00 Adjust. Universal LPG 2.75 AUXILIARY Natural 1.00... - Page 13 INSTRUCTIONS FOR USING THE MINI TRIVET The mini-trivet included with this cooktop is to be used for cooking vessels of diameter 120mm or smaller Incorrect fitment Correct fitment Examples of positioning of mini-trivet BCT60GCSS MODEL: BCT60GCBK MODEL: BCT75GCSS BCT75GCBK MODEL: BCT90GCSS BCT90GCBK...
- Page 14 INSTRUCTIONS FOR USING THE WOK TRIVET The cast iron wok trivet included with this cooktop is to be used for cooking only the wok burner. Correct fitment Examples of positioning cast iron wok trivet...
- Page 15 NOTES...
-
Page 16: Warranty Information
WARRANTY INFORMATION Congratulations on your new purchase and thank you for choosing Belling. Our dedication to quality and reliability allows us to cover Belling cooking appliances under a domestic warranty for 3 years that includes all parts and labour for even more peace of mind.
