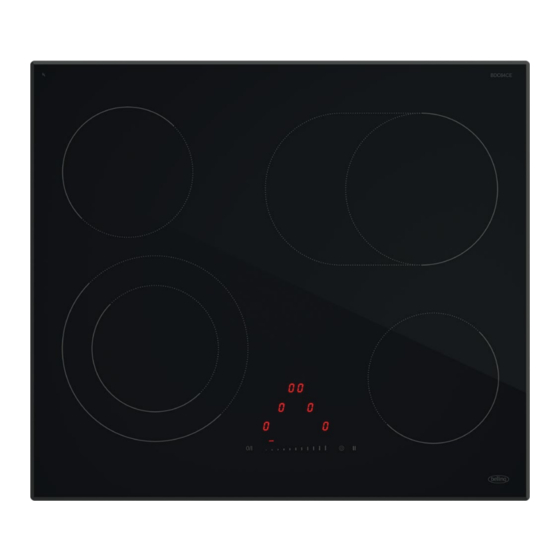

- Page 1 BDC64CE 60cm 4 Zone Ceramic Cooktop - Touch Control INSTRUCTION MANUAL PLEASE READ THE INSTRUCTION MANUAL CAREFULLY BEFORE USING THE UNIT. www.belling.com.au www.belling.co.nz...
-
Page 3: Table Of Contents
SUMMARY SAFETY ............................. 4 ......................4 RECAUTIONS BEFORE USING ........................5 SING THE APPLIANCE ..............6 RECAUTIONS TO PREVENT DAMAGE TO THE APPLIANCE ..................7 RECAUTIONS IN CASE OF APPLIANCE FAILURE ........................7 THER PROTECTIONS DESCRIPTION OF THE APPLIANCE ....................8 ...................... -
Page 4: Safety
SAFETY Precautions before using • Unpack all the materials. • The installation and connecting of the appliance have to be done by approved specialists. The manufacturer cannot be responsible for damage caused by building-in or connecting errors. • To be used, the appliance must be well-equipped and installed in a kitchen unit and an adapted and approved work surface. -
Page 5: Using The Appliance
Using the appliance • Switch the heating zones off after using. • Keep an eye on the cooking using grease or oils: that may quickly ignite. • Be careful not to burn yourself while or after using the appliance. • Make sure no cable of any fixed or moving appliance contacts with the glass or the hot saucepan. -
Page 6: Precautions To Prevent Damage To The Appliance
Precautions to prevent damage to the appliance • Raw pan bottoms or damaged saucepans (not enamelled cast iron pots,) may damage the ceramic glass. • Sand or other abrasive materials may damage ceramic glass. • Avoid dropping objects, even little ones, on the vitroceramic. •... -
Page 7: Precautions In Case Of Appliance Failure
Precautions in case of appliance failure • If a defect is noticed, switch off the appliance and turn off the electrical supplying. • If the ceramic glass is cracked or fissured, you must unplug the appliance and contact the after sales service. •... -
Page 8: Description Of The Appliance
DESCRIPTION OF THE APPLIANCE Technical characteristics Type BDC64CE Total power 7000 W Front left heating zone Ø 220 / 150 mm 2200 / 1000 W Nominal power Ø 155 mm Rear left heating zone 1200 W Nominal power 275 x 180 mm... -
Page 9: Control Panel
Control panel Control light timer Timer display Power display Control light extension Control light cooking zone Control light on/off Control light Pause/Recall On/off key Booster selection zone “SLIDER” and Extension Pause/Recall timer setting zone zone USE OF THE APPLIANCE Display Display Designation Function... -
Page 10: Starting-Up And Appliance Management
STARTING-UP AND APPLIANCE MANAGEMENT Before the first use Clean your hob with a damp cloth, and then dry the surface thoroughly. Do not use detergent which risks causing blue-tinted colour on the glass surface. Sensitive touch Your ceramic hob is equipped with electronic controls with sensitive touch keys. When your finger presses the key, the corresponding command is activated. -
Page 11: Residual Heat Indication
Residual heat indication After switching off a heating zone or switching off the hob, the heating zones are still hot and [ H ] will be indictaed on the display. The symbol [ H ] disappears when the heating zones are cool enough to touch without danger. When the residual heat indicators [ H ] are on, don’t touch the heating zones and don’t put any heat sensitive objects on them. -
Page 12: Automatic Cooking
• Egg timer function: Example for 29 minutes: Control panel Display Action press display [ 0/I ] zone co ntrol lights are on Activate the hob press display [ CL ] [ 00 ] Select« Timer » slide on the “SLIDER“ to [ 9 ] 0 fixed ] [ 9 blinking ] Set the units Confirm the units... -
Page 13: "Keep Warm" Function
“Keep warm” Function This function allows a zone to reach and maintain automatically a temperature of 70°C. This will avoid liquids overflowing and fast burning at the bottom of the pan. • To engage, to start the function « Keep warm » : Action Control panel Display... -
Page 14: Cooking Advices
COOKING ADVICES Examples of cooking power setting (the values below are indicative) 1 to 2 Melting Sauces, butter, chocolate, gelatine Reheating Dishes prepared beforehand 2 to 3 Simmering Rice, pudding, sugar syrup Defrosting Dried vegetables, fish, frozen products 3 to 4 Steam Vegetables, fish, meat 4 to 5... -
Page 15: Environment Preservation
One or all cooking zones cut-off: • The safety system activated • You forgot to turn off a cooking zone for an extended period of time • One or more touch keys are covered. • The pan is empty and its bottom overheated. •... -
Page 16: Installation Instructions
H (mm) D (mm) A (mm) B (mm) X (mm) BDC64CE 50 min. • Ensure that there is a distance of 50 mm between the cutout and the wall or sides. • The hobs are classified as “Y” class for heat protection. Ideally the hob should be installed with plenty of space on either side. -
Page 17: Electrical Connection
• Materials which are often used to make work tops expand on contact with water. To protect the cut-out edge, apply a coat of varnish or special sealant. Particular care must be given to applying the adhesive joint supplied with the hob to prevent any leakage into the supporting furniture. - Page 18 • The cable must not be bent or compressed. • The cable must not be accessible after installation Ceramic Hob BDC64CE Cooking Zones 4 Zones Supply Voltage 220-240V~ 50 / 60Hz Installed Electric Power 7000W Product Size D×W×H(mm)
- Page 19 5 years from the date the product is purchased as a brand- new product from a retailer located in Australia / New Zealand. b) In the case of Belling Design products used for purposes other than personal, domestic or household purposes (including business or commercial use), a period of 90 days from the date the product is purchased as a brand-new product from a retailer located in Australia / New Zealand.
- Page 20 b) The product requires repairs due to damage resulting from accident, misuse, incorrect installation, insect or vermin infestation, improper liquid spillage, cleaning or maintenance, unauthorised modification, use on an incorrect voltage, power surges and dips, voltage supply problems, tampering or unauthorised repairs by any persons, use of defective or incompatible accessories or exposure to abnormally corrosive conditions, events independent of human control which occurred after the goods left the control of Glen Dimplex;...
- Page 21 d) If required by us, provide us (or any person nominated by us) with access to the premises at which the product is located at times nominated by us (so that we can inspect the product). 5. Warranty claims If you make a valid claim under this warranty and none of the exclusions set out in section 2 apply, we will, at our election, either repair the product or replace the product with a product of identical specification (or where the product is superseded or no longer in stock, with a product of as close a specification as possible).
- Page 22 NOTES ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ...
- Page 23 NOTES ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ...
- Page 24 READ THE INSTRUCTION BOOKLET BEFORE INSTALLING AND USING THE APPLIANCE. The manufacturer will not be responsible for any damage to property or to persons caused by incorrect installation or improper use of the appliance. The manufacturer is not responsible for any inaccuracies, due to printing or transcription errors, contained in this manual.
