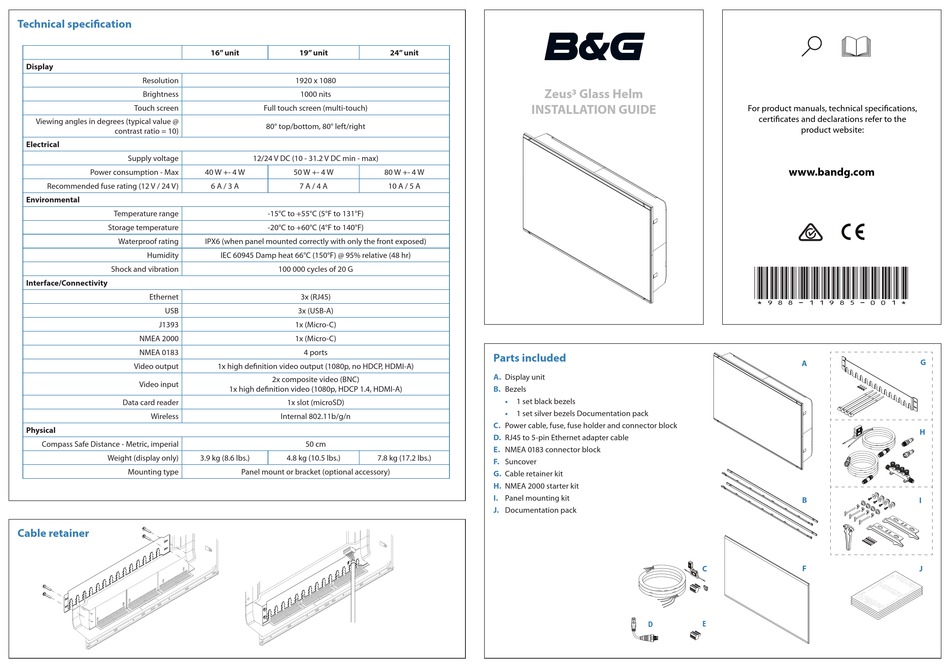

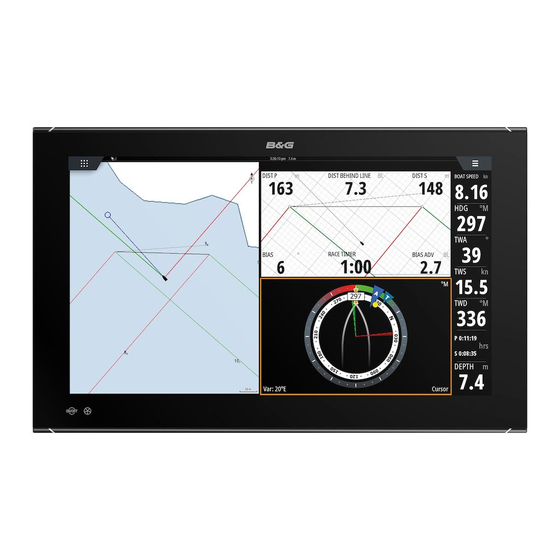

B&G Zeus3 Installation Manual

Technical specification
Display
Resolution
Brightness
Touch screen
Viewing angles in degrees (typical value @
contrast ratio = 10)
Electrical
Supply voltage
Power consumption - Max
Recommended fuse rating (12 V / 24 V)
Environmental
Temperature range
Storage temperature
Waterproof rating
Humidity
Shock and vibration
Interface/Connectivity
Ethernet
USB
J1393
NMEA 2000
NMEA 0183
Video output
Video input
Data card reader
Wireless
Physical
Compass Safe Distance - Metric, imperial
Weight (display only)
Mounting type
Cable retainer
16" unit 19" unit
1920 x 1080
1000 nits
Full touch screen (multi-touch)
80° top/bottom, 80° left/right
12/24 V DC (10 - 31.2 V DC min - max)
40 W +- 4 W 50 W +- 4 W
6 A / 3 A 7 A / 4 A
-15°C to +55°C (5°F to 131°F)
-20°C to +60°C (4°F to 140°F)
IPX6 (when panel mounted correctly with only the front exposed)
IEC 60945 Damp heat 66°C (150°F) @ 95% relative (48 hr)
100 000 cycles of 20 G
3x (RJ45)
3x (USB-A)
1x (Micro-C)
1x (Micro-C)
4 ports
1x high definition video output (1080p, no HDCP, HDMI-A)
2x composite video (BNC)
1x high definition video (1080p, HDCP 1.4, HDMI-A)
1x slot (microSD)
Internal 802.11b/g/n
50 cm
3.9 kg (8.6 lbs.) 4.8 kg (10.5 lbs.) 7.8 kg (17.2 lbs.)
Panel mount or bracket (optional accessory)
24" unit
Zeus3 Glass Helm
INSTALLATION GUIDE
80 W +- 4 W
10 A / 5 A
Parts included
A. Display unit
B. Bezels
• 1 set black bezels
•
1 set silver bezels Documentation pack
C.
Power cable, fuse, fuse holder and connector block
D.
RJ45 to 5-pin Ethernet adapter cable
E.
NMEA 0183 connector block
F. Suncover
G. Cable retainer kit
H. NMEA 2000 starter kit
I. Panel mounting kit
J. Documentation pack
For product manuals, technical specifications,
certificates and declarations refer to the
product website:
www.bandg.com
*988-11985-001*
A
B
C F
D E
G
H
I
J
