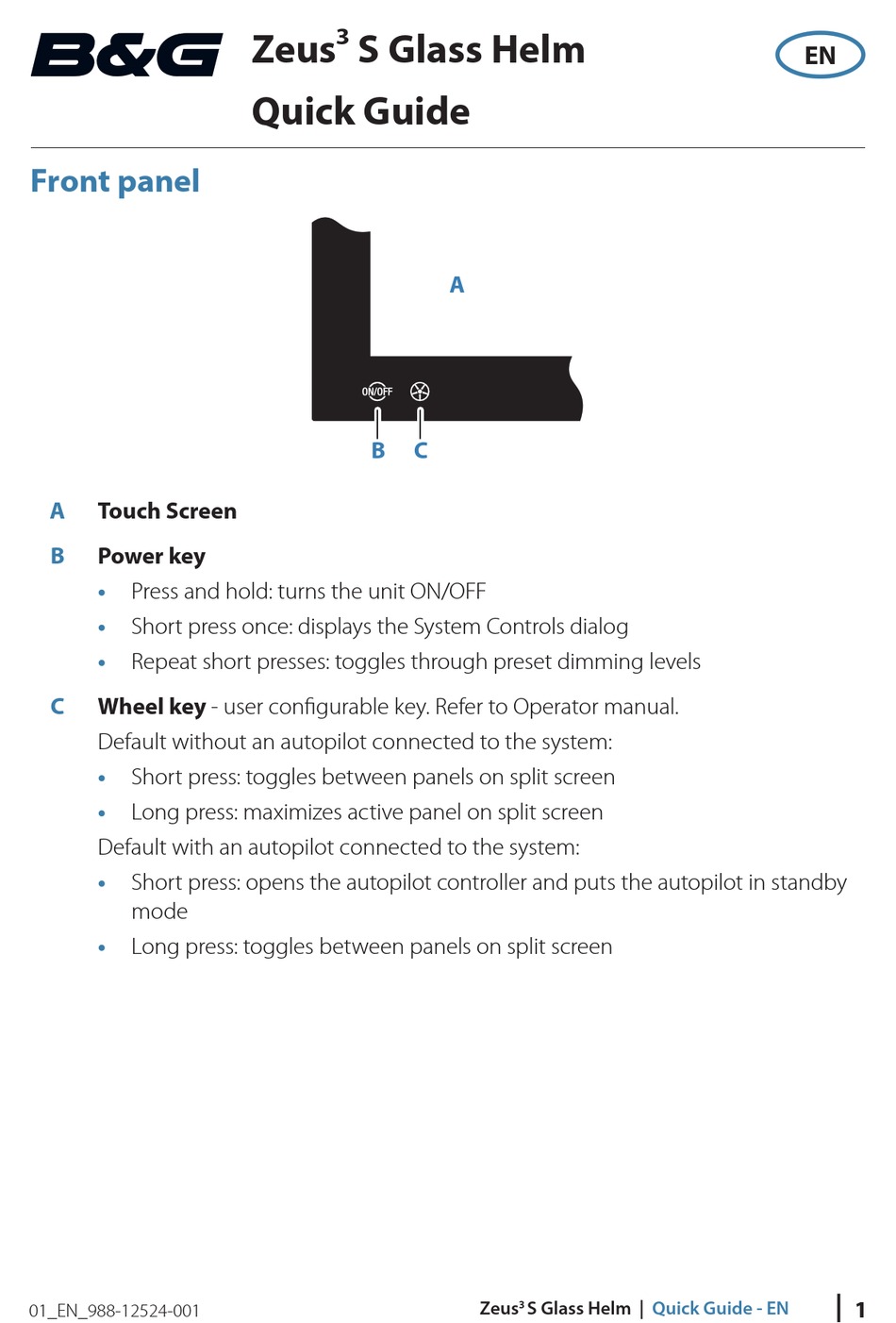

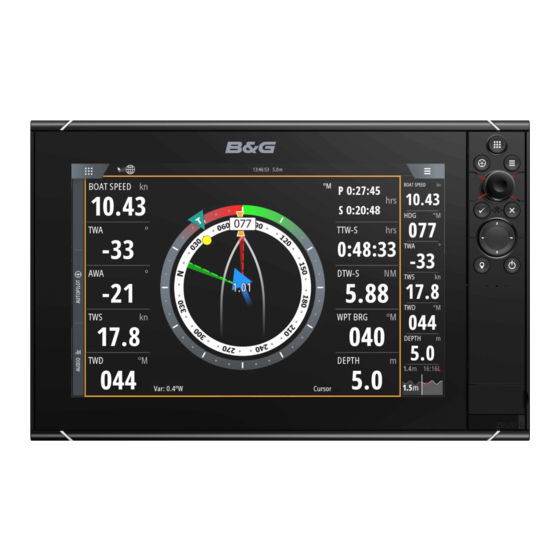

Front panel
A
Touch Screen
B
Power key
•
Press and hold: turns the unit ON/OFF
•
Short press once: displays the System Controls dialog
•
Repeat short presses: toggles through preset dimming levels
C
Wheel key - user configurable key. Refer to Operator manual.
Default without an autopilot connected to the system:
•
Short press: toggles between panels on split screen
•
Long press: maximizes active panel on split screen
Default with an autopilot connected to the system:
•
Short press: opens the autopilot controller and puts the autopilot in standby
mode
•
Long press: toggles between panels on split screen
01_EN_988-12524-001
Zeus3 S Glass Helm
Quick Guide
B
C
A
Zeus
S Glass Helm |
3
EN
Quick Guide - EN
|
1
Advertisement
Table of Contents
Related Manuals for B&G Zeus3 S Glass Helm
Summary of Contents for B&G Zeus3 S Glass Helm
- Page 1 Zeus3 S Glass Helm Quick Guide Front panel Touch Screen Power key • Press and hold: turns the unit ON/OFF • Short press once: displays the System Controls dialog • Repeat short presses: toggles through preset dimming levels Wheel key - user configurable key. Refer to Operator manual.
- Page 2 Home page Application buttons Settings button Tools Favorites Close button Man Over Board (MOB) button Power button The MOB mark To create a MOB mark: press the MOB button. To stop displaying navigational information to the MOB waypoint: cancel the navigation from the menu.
- Page 3 Edit an existing favorite page or configure a new page by dragging panel icons into or out from the preview area. Save the changes by tapping the Save button. System Controls dialog Used for quick access to system settings. Activate the dialog by: •...
- Page 4 Charts • Zoom the chart by using spread or pinch gestures or by using the zoom buttons. • Move the view in any direction by panning the chart. • Display information about a chart item by tapping the item. Waypoints To create a waypoint: select the new waypoint option in the menu.
- Page 5 WindPlot panel Wind direction and wind speed. TimePlot panels Two predefined layouts. Tap left/right panel arrow to switch between layouts. Autopilot • Activate the autopilot controller from the Control bar. • Select an autopilot mode by pressing the mode button from the Control bar.
