Techlogix TL-NS24R2S-POE Manual

1g network switch with 24 rj45 & 2 sfp - 30w poe+

TL-NS24R2S-POE

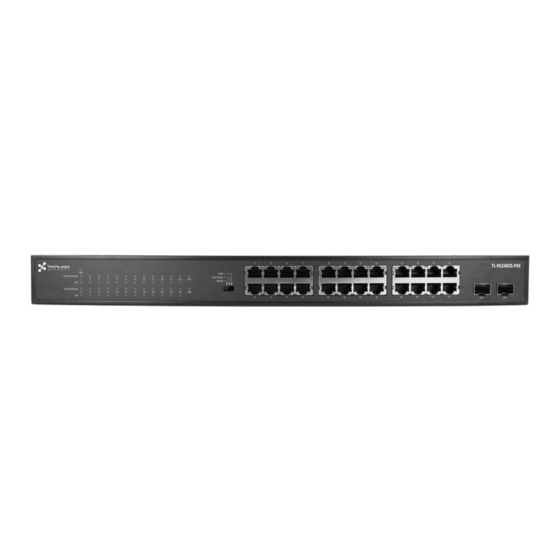

1G Network Switch with 24 RJ45 & 2 SFP - 30W PoE+

The TL-NS24R2S-POE passes both data and electrical power to a number of PoE-

compatible devices via standard twisted pair cables. Equipped with 24 Gigabit Ethernet

ports, this switch can power wireless LAN access points and bridges, VoIP phones, IP video

cameras and more while delivering network speeds up to 1,000 Mbps.

The TL-NS24R2S-POE supports the IEEE 802.3at protocol and can inject up to 30 watts

of power per port with a total power budget of 370W. IEEE802.3af- or IEEE802.3at-

compliant devices attached to the switch need no additional power to help avoid the time

and expense of electrical rewiring and minimize the unsightly clutter of power supplies and

adapters on ceilings and walls. Any mix of PoE and non-PoE devices is supported, and

thanks to its short-circuit, overload and high-voltage protection function, your equipment

is well-protected.

Equipped with 24 auto-sensing 10/100/1000 Mbps RJ45 Gigabit Ethernet ports, the

TL-NS24R2S-POE offers plenty of performance for your computers, servers and other

networking devices. In addition, two small form-factor pluggable (SFP) GBIC module slots

provide fiber connectivity for greater distances. These are not shared combo-ports but true

Gigabit ports, pushing the total available bandwidth up to 52G.
