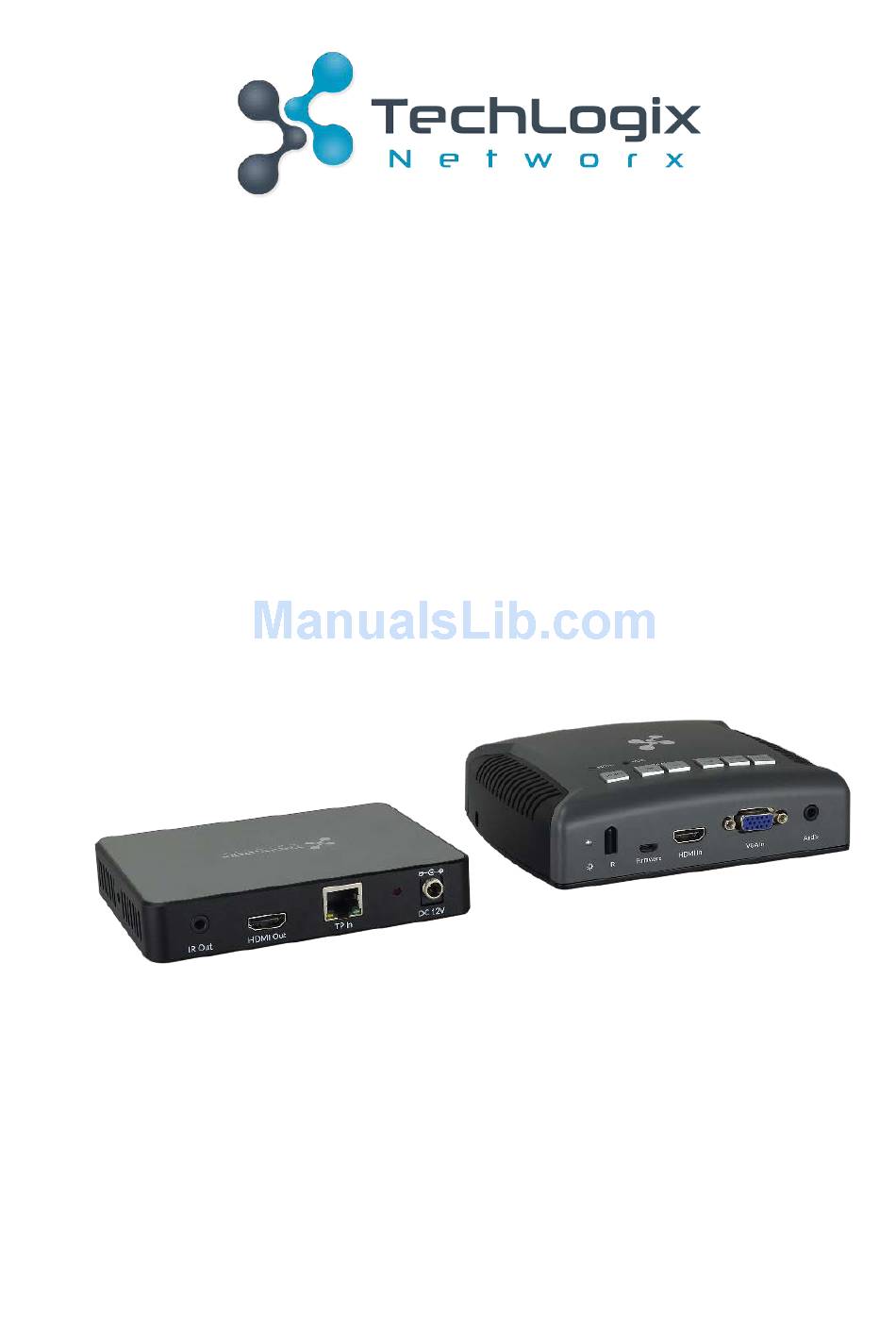

Page 1: User Manual
User Manual TL-SMP-HDV Collaboration Hub All Rights Reserved Version: TL-SMP-HDV_170104... -
Page 2: Fcc Statement
TL-SMP-HDV User Manual Preface Read this user manual carefully before using this product. Pictures shown in this manual is for reference only, different model and specifications are subject to real product. This manual is only for operation instruction only, not for any maintenance usage. -
Page 3: Safety Precautions
TL-SMP-HDV User Manual SAFETY PRECAUTIONS To insure the best from the product, please read all instructions carefully before using the device. Save this manual for further reference. l Unpack the equipment carefully and save the original box and packing material for... -
Page 4: Table Of Contents
TL-SMP-HDV User Manual Contents 1. Introduction ......................... 1 1.1 Introduction to TL-SMP-HDV ................1 1.2 Features ......................1 1.3 Package List ......................2 2. Panel Description ......................3 2.1 Transmitter ......................3 2.2 Receiver ......................5 3. System Connection ...................... 6 3.1 Usage Precautions .................... -
Page 5: Introduction
1. Introduction 1.1 Introduction to TL-SMP-HDV The TL-SMP-HDV is a Collaboration Hub consists of Transmitter and Receiver. HDBaseT technology is used to transmit high-resolution 1080p/4K signal from Transmitter to the Receiver over CAT5e/6a/7 cable at a distance of up to 70/40m. -
Page 6: Package List
TL-SMP-HDV User Manual 1.3 Package List l 1 x Transmitter l 1 x Receiver l 1 x IR Emitter l 8 x Rubber feet l 1 x Iron Plate (mounted in the bottom of Transmitter) l 2 x Mounting Ears with 2 screws (for Receiver) -
Page 7: Panel Description
TL-SMP-HDV User Manual 2. Panel Description 2.1 Transmitter Bottom Side Name Description ① Power LED Red when powered on. ② Sensor Built-in IR Receive the IR control signal sent from IR remote. Micro USB port, used for firmware update. ③... - Page 8 TL-SMP-HDV User Manual function. OFF: Customized button based on IR control. Press it to turn off display device via built-in CEC function. Customized button based on IR control. Press it to turn up the volume of display device via built-in CEC function.
-
Page 9: Receiver
TL-SMP-HDV User Manual 2.2 Receiver Name Description Connect with IR Emitter to send infrared signal to control ① IR Out display device. ② HDMI Out HDMI output port, connect to display device. Connect with the TP Out socket on the Transmitter via ③... -
Page 10: System Connection
TL-SMP-HDV User Manual 3. System Connection 3.1 Usage Precautions Verify all components included with the product are present before installation System should be installed in a clean environment and has a prop temperature and humidity. If the product will be permanently mounted to a surface, attach the included mounting ears with the supplied screws. - Page 11 TL-SMP-HDV User Manual Turn off power and disconnect the audio/video equipment by following the manufacturer’s instructions. Connect a HDMI signal cable between the HDMI source (such as DVD) and the HDMI In port on Transmitter. Connect a VGA signal cable between the VGA source and the VGA In port on Transmitter.
-
Page 12: Cec Control
TL-SMP-HDV User Manual 4. CEC Control The Transmitter features six buttons, including SOURCE, ON, OFF, UP, DOWN, MUTE, and they are can be used to control display device via built-in CEC function. Source Input Switching: Press the button SOURCE to switch cyclically the input source devices between HDMI and VGA. -
Page 13: Ir Control
TL-SMP-HDV User Manual 5. IR Control The Transmitter features five customized buttons, including ON, OFF, UP, DOWN, MUTE, and they can be customized for replacing the IR remote to control display device. Procedure of Button Customization: Long-press one of five buttons (such as ON) on Transmitter needed to be customized for more than 5 seconds into IR learning status until the power LED blinks orange and keep on. -
Page 14: Specification
TL-SMP-HDV User Manual 6. Specification Transmitter Video: Video Input 1 HDMI; 1 VGA Video Input Connector 1 female HDMI; 1 female VGA (15-pin) Video Output 1 HDBaseT Video Output Connector 1 RJ45 HDMI Video Resolution Up to 4Kx2K @30Hz 4:4:4... - Page 15 TL-SMP-HDV User Manual Control ： Control Port 1 IR Out Control Connector 1 3.5mm stereo jack General Temperature -10 ~ +55℃ Humidity 10% ~ 90% Power Supply DC12V 2A Max Power Consumption Dimension (W*H*D) 130mm x 24mm x 102mm Weight 270g www.tlnetworx.com...
-
Page 16: Panel Drawing
TL-SMP-HDV User Manual 7. Panel Drawing 7.1 Transmitter 120 mm 42 mm 7.2 Receiver 130 mm www.tlnetworx.com... -
Page 17: Troubleshooting & Maintenance
TL-SM3x1-HDV User Manual 8. Troubleshooting & Maintenance Problems Causes Solutions quality Try another high quality Output image with connecting cable cable. snowflake Make sure the connection Fail or loose connection is good Check with oscilloscope or No signal at the input / multimeter if there is any output end signal at the input/ output... -
Page 18: After-Sales Service
TL-SM3x1-HDV User Manual 9. After-sales Service If there appear some problems when running the device, please check and deal with the problems reference to this user manual. Any transport costs are borne by the users during the warranty. 1) Product Limited Warranty: We warrant that our products will be free from defects in materials and workmanship for three years.
