Page 1: User Manual

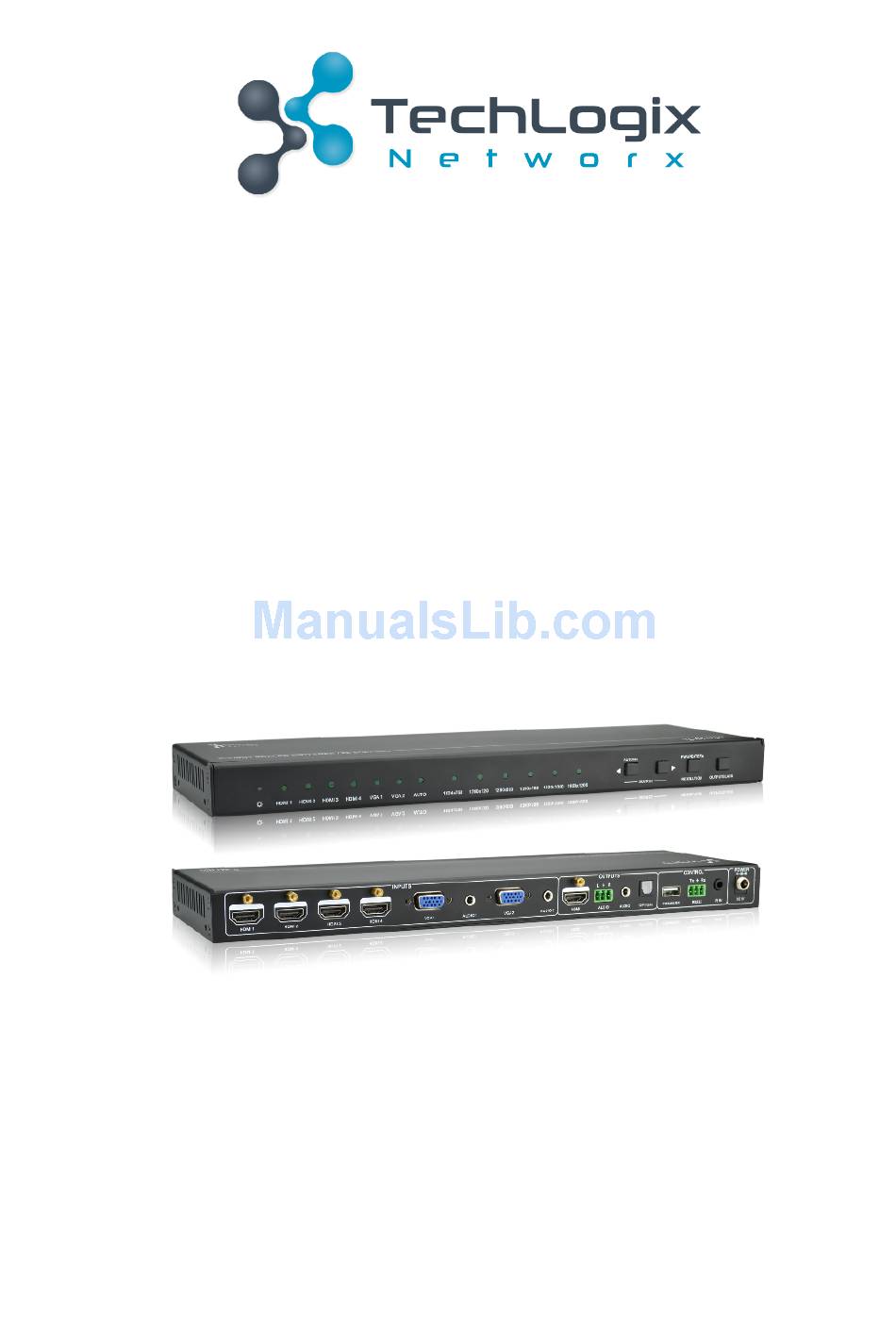

User Manual TL-6X1-HDV Compact Scaler Switcher 6x1 All Rights Reserved Version: TL-6X1-HDV_160711... -
Page 2: Fcc Statement
TL-6X1-HDV User Manual Preface Read this user manual carefully before using this product. Pictures shown in this manual are for reference only, different model and specifications are subject to real product. This manual is only for operation instruction only, not for any maintenance usage. -
Page 3: Safety Precautions
TL-6X1-HDV User Manual SAFETY PRECAUTIONS To insure the best from the product, please read all instructions carefully before using the device. Save this manual for further reference. l Unpack the equipment carefully and save the original box and packing material for... -
Page 4: Table Of Contents
TL-6X1-HDV User Manual Contents 1. Introduction ......................... 1 1.1 Introduction to TL-6X1-HDV ................1 1.2 Features ......................1 1.3 Package List ......................2 2. Panel Description ......................3 2.1 Front Panel ......................3 2.2 Rear Panel ......................4 3. System Connection ...................... 5 3.1 Usage Precautions .................... -
Page 5: Introduction
1. Introduction 1.1 Introduction to the TL-6X1-HDV The TL-6X1-HDV is a compact 6x1 switcher unit with 6 video inputs (4 HDMI, 2 VGA), 2 auxiliary audio inputs (switched following VGA), 1 HDMI output and 3 audio outputs (1 dual-mono analog audio, 1 3.5mm stereo audio, 1 optical audio). -
Page 6: Package List
TL-6X1-HDV User Manual 1.3 Package List l 1 x TL-6X1-HDV l 2 x Mounting ears (separate from TL-6X1-HDV) l 4 x Screws l 4 x Plastic cushions l 1 x Power adapter (DC 5V 3A) l 2 x 3-pin Pluggable terminal blocks (pitch:3.81mm) -
Page 7: Panel Description
TL-6X1-HDV User Manual 2. Panel Description 2.1 Front Panel AUTO/3s FW UPDATE/7s HDMI 1 HDMI 2 HDMI 3 HDMI 4 VGA 1 VGA 2 AUTO 1024x768 1280x720 1280x800 1360x768 1920x1080 1920x1200 SOURCE RESOLUTION OUTPUT BLACK Name Description Indicator for power status Off when no power. -
Page 8: Rear Panel
FIRMWARE: Type-A USB port for updating firmware. RS232: Serial port, 3-pin pluggable terminal block, connect with ③ Control control terminal (e.g. a PC) to control TL-6X1-HDV. IR IN: connect to an IR Receiver, to receive IR signal sent by corresponding IR remote. ④... -
Page 9: System Connection
Step1. Connect HDMI/DVI sources (e.g. DVD) to HDMI input ports of TL-6X1-HDV with HDMI cables. Step2. Connect VGA sources (e.g. DV Camera) to VGA input ports of TL-6X1-HDV with VGA cables. Step3. Connect sources to the AUDIO input ports of TL-6X1-HDV with audio cables. -
Page 10: Application
TL-6X1-HDV User Manual 3.4 Application TL-6X1-HDV has a many applications such as conference rooms, training rooms, command & control centers and corporate board rooms. www.tlnetworx.com... -
Page 11: System Operations
If the last displayed signal is still available, TL-6X1-HDV will output that signal. If not, the unit will detect all the input signals with priority from HDMI1 to VGA2. The first signal detected will be selected. -
Page 12: Rs232 Control
Connect a source device to HDMI3, it will be selected automatically. l Remove the signal from HDMI3, TL-6X1-HDV will search from HDMI1 to VGA2. It will detect that HDMI2 is available, HDMI2 will be selected automatically. l Remove power from the TL-6X1-HDV, then reboot. As the unit is in auto-switching mode, HDMI2 will be selected. -
Page 13: Rs232 Communication Commands
TL-6X1-HDV User Manual Parameter Configuration area Monitoring area, indicates whether the command sent works. Command Sending area Please set the parameters of COM number, baud rate, data bit, stop bit and the parity bit correctly, only then will you be able to send commands in the Command Sending Area. - Page 14 TL-6X1-HDV User Manual 50706% Switch to VGA 2 input Switch to VGA 2 50785% Enable auto-switching Auto Switching 50786% Disable auto-switching Manual Switching Resolution Select Commands for VGA Input 50619% Change the resolution to 1360X 768 Resolution: 1360x768 Change the resolution to1920X1200...
- Page 15 TL-6X1-HDV User Manual Sound Mode: xx Sound Mode: xx (xx= 50615% Set the audio mode for VGA input standard/ music/ movie/ sports/ user) Embedded Audio Output: 50648% Enable HDMI embedded audio output enable Embedded Audio Output: 50649% Disable HDMI embedded audio output...
- Page 16 TL-6X1-HDV User Manual EDID:user 50787% Set the EDID date of all input ports: user Output black:enable 50653% Switch off audio&video output Output black:disable 50654% Switch on audio&videio output Switch to VGA2 Inquire Commands 50631% Check the input source Input: xx...
- Page 17 Step1. Copy the file(the file must be named EDID.bin) to the root directory of a USB flash disk. Step2. Plug the USB flash disk to the TL-6X1-HDV Firmware port on its rear panel. Step3. Send command 50769% to read EDID data from U flash disk, then, send command 50787% to update EDID.
-
Page 18: Ir Control
The “MERGE.bin” file is provided/ authorized. Step2. Plug the USB flash disk to TL-6X1-HDV FIRMWARE port on its rear panel. Step3. Press the button “RESOLUTION/FW UPDATE” for 7 seconds or more to update the firmware automatically. -
Page 19: Specification
TL-6X1-HDV User Manual 5. Specification I/O Connections HDM Inputs Four(4) Type A receptacle VGA Inputs Two(2) HD-15 female receptacle Audio Inputs Two(2) 3.5mm TRS jack HDMI Output One(1) Type A receptacle One(1) 3-pin captive screw connector, One(1) Audio Outputs 3.5mm TRS jack, One(1) optical jack IR Input One(1) 3.5mm TRS jack... - Page 20 TL-6X1-HDV User Manual Response > 10KΩ Analog Audio Input Impedance 50Ω Analog Audio Output Impedance Maximum Passive HDMI Distance 15m(49ft) IR Carrier Frequency Range 33-55KHz at 5V Chassis and Environmental Enclosure Painted aluminum 350mm x 28mm x 110mm (13.78in x 1.10in x Dimensions (W x H x D) 4.33in)
- Page 21 TL-6X1-HDV User Manual Note: TL-6X1-HDV supports 4k&1080p 3D HDMI signal, please use quality HDMI cables compliant with HDMI1.4 for reliable transmission when connecting. www.tlnetworx.com...
- Page 22 TL-6X1-HDV User Manual Supported Input Resolutions Format Resolution 800x600@60Hz, 800x600@72Hz, 800x600@75Hz, 1024x768@42Hz, 1024x768@60Hz, 1024x768@70Hz, 1024x768@75Hz, 1024x768@85Hz, 1152x864@75Hz, 1280x768@60Hz, 1280x768@75Hz, 1280x768@85Hz, 1280x960@60Hz, 1280x960@85Hz, 1280x1024@60Hz, 1280x1024@75Hz, 1280x1024@85Hz, 1365x1024@60Hz, 1365x1024@60Hz, HDMI/DVI 1600x1024@60Hz, 1600x1200@60Hz, 1600x1200@65Hz, 1600x1200@70Hz, 1600x1200@75Hz, 1600x1200@85Hz, 1680x1050@60Hz, 1792x1344@60Hz, 1856x1392@60Hz, 1856x1392@75Hz, 1920x1080@60Hz, 1920x1200@60Hz,...
-
Page 23: Panel Drawing
TL-6X1-HDV User Manual 6. Panel Drawing AUTO/3s FW UPDATE/7s HDMI 1 HDMI 2 HDMI 3 HDMI 4 VGA 1 VGA 2 AUTO 1024x768 1280x720 1280x800 1360x768 1920x1080 1920x1200 SOURCE RESOLUTION OUTPUT BLACK 13.5 mm 350 mm www.tlnetworx.com... -
Page 24: Troubleshooting & Maintenance
TL-6X1-HDV User Manual 7. Troubleshooting & Maintenance Problems Causes Solutions Failed connection of power Make sure the power cord Power LED doesn’t cord connection is normal work or no response to Please replace the power any operation Power adapter dead... -
Page 25: After-Sales Service
TL-6X1-HDV User Manual 8. After-sales Service If there appear some problems when running the device, please check and deal with the problems referenced in this user manual. 1) Product Limited Warranty: We warrant that our products will be free from defects in materials and workmanship for three years.
