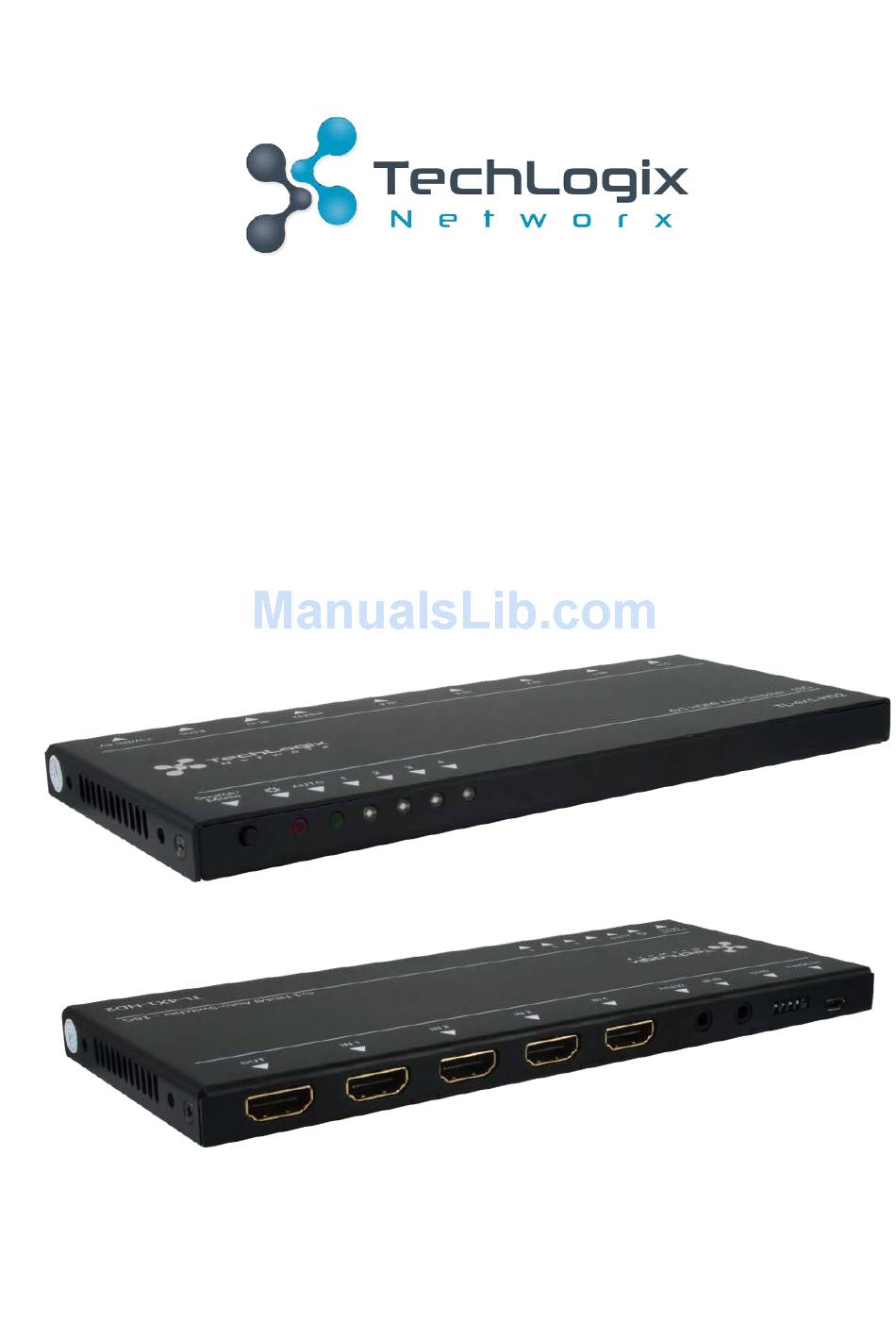

Page 1: User Manual
User Manual TL-4X1-HD2 4K HDMI 2.0 Switcher 4x1 All Rights Reserved Version: TL-4X1-HD2_170427_V1.0... -
Page 2: Fcc Statement
Trademarks Product model, TechLogix and its logo are trademarks of TechLogix Networx. Any other trademarks mentioned in this manual are acknowledged as the properties of the trademark owner. No part of this publication may be copied or reproduced without the prior written consent of TechLogix Networx. -
Page 3: Safety Precautions
TL-4X1-HD2 User Manual SAFETY PRECAUTIONS To insure the best from the product, please read all instructions carefully before using the device. Save this manual for further reference. l Unpack the equipment carefully and save the original box and packing material for... -
Page 4: Table Of Contents
TL-4X1-HD2 User Manual Contents 1. Introduction ......................... 1 1.1 Introduction to TL-4X1-HD2 ................1 1.2 Features ......................1 1.3 Package List ......................1 2. Panel Description ......................2 2.1 Front Panel ......................2 2.2 Rear Panel ......................3 3. System Connection ...................... 4 3.1 Usage Precautions .................... - Page 5 TL-4X1-HD2 User Manual 10. Troubleshooting & Maintenance ................16 11. After-sales Service ....................17 www.tlnetworx.com...
-
Page 6: Introduction
1. Introduction 1.1 Introduction to TL-4X1-HD2 TL-4X1-HD2 is an HDMI2.0 switcher accommodates 4 HDMI inputs. If select any of the inputs by “SOURCE” button on the front panel, IR Remote, or sending RS232 command, the corresponding indicator will illuminate to show real-time switching status. -
Page 7: Panel Description
TL-4X1-HD2 User Manual Panel Description 1.4 Front Panel SOURCE AUTO MODE/3s Name Description l Video source selection button, press to switch among the 4 inputs source circularly. SOURCE/ ① l Switch mode selection button, press and hold for 3 seconds... -
Page 8: Rear Panel
TL-4X1-HD2 User Manual 1.5 Rear Panel IN 1 IN 2 IN 3 IN 4 RS232 IR IN EDID FW/DC 5V Name Description HDMI output port, connect to HDMI display ① Total 4 HDMI input ports, connect with HDMI source devices. -
Page 9: System Connection
Step1. Connect HDMI source device(s) (e.g. Blue-ray DVD) to the “IN1”~ “IN4”ports of TL-4X1-HD2 with HDMI cable. Step2. Connect HDMI display (e.g. HDTV) to “OUT” port of TL-4X1-HD2 with HDMI cable. Step3. Connect an IR Receiver to the “IR IN” to control the switcher via IR Remote. -
Page 10: Application
Step5. Plug a DC 5V power adapter to the “FW/DC 5V” port. NOTE: All the ports support hot-plug. 2.4 Application TL-4X1-HD2 has a good application in various occasions, such as computer realm, monitoring, conference room, big screen displaying, television education, command & control center and smart house etc. -
Page 11: Panel Control
“AUTO” LED will light up. The auto-switching mode abides by the following principles: New input Once detecting a new input signal, TL-4X1-HD2 would switch to this new signal automatically. Power Rebooting TL-4X1-HD2 support power off memory function. If the last selected signal is still available, the switcher will still output the signal. -
Page 12: Embedded Edid Invoking
TL-4X1-HD2 User Manual 3.2 Embedded EDID invoking The rear panel boasts a 4-pin DIP switcher to invoke embedded EDID. The embedded EDID data and their corresponding DIP switcher status are shown in the below list. Status EDID 0000 Pass though (default) -
Page 13: Ir Control
TL-4X1-HD2 User Manual 4. IR Control Connect an IR receiver to the IR IN port, TL-4X1-HD2 can be controlled via the included IR Remote. As CEC function, it is able to use the IR Remote to control the source or display device. Here is a brief introduction about the IR Remote:... -
Page 14: Rs232 Control
Uninstallation: Delete all the control software files in corresponding file path. 5.2 Basic Settings Firstly, connect TL-4X1-HD2 with an input device and an output device. Then, connect it with a computer which is installed with RS232 control software. Double-click the software icon to run this software. -
Page 15: Rs232 Commands
TL-4X1-HD2 User Manual Parameter Configuration area Monitoring area, indicates Monitoring area, indicates whether the command whether the command sent works. sent works. Command Sending area Command Sending area 5.3 RS232 Commands 5.3.1 Switching Commands Function Command Feedback Example Switch to HDMI input 1. -
Page 16: Edid Customizing
TL-4X1-HD2 User Manual 5.3.2 EDID Customizing Function Command Feedback Example Query the current EDID EDIDInfo% Customize EDID. EDIDSxx% Remove all customized EDID. EDIDR% Besides the 6 embedded EDID, there are 9 EDID can be customized as need. Firstly, send the command “EDIDSxx%” (XX=ID=07~15), and then click “Load File” on the RS232 control software to load the customized EDID file (.bin). -
Page 17: Display Device Control
TL-4X1-HD2 User Manual Open the MENU SRCMenu% [CMD]: blue ray menu. Back SRCBack% [CMD]: blue ray back. Confirm (OK) SRCOk% [CMD]: blue ray OK. Exit SRCExit% [CMD]: blue ray Exit. Up direction SRCUp% [CMD]: blue ray up. Down direction SRCDown% [CMD]: blue ray down. -
Page 18: Firmware Upgrade
TL-4X1-HD2 User Manual 6. Firmware Upgrade TL-4X1-HD2 boasts a USB port for online firmware upgrade on the rear panel. Follow these steps to upgrade firmware: Step1. Connect control PC to the USB port of TL-4X1-HD2 with USB cable. Step2. Open “My Computer”, and then find the new disk named BOOTDISK. -
Page 19: Specification
TL-4X1-HD2 User Manual 7. Specification Input Signal 4 HDMI Input Connector Female Type-A HDMI Output Signal 1 HDMI Output Connector Female Type-A HDMI Control Signal 1 IR IN; 1 RS232 Control Connector 2 3.5mm mini jacks Video Signal HDMI2.0& HDCP2.2... -
Page 20: Panel Drawing
TL-4X1-HD2 User Manual 8. Panel Drawing WUH4A-H2 SOURCE MODE/3s AUTO HDMI2.0 & HDCP2.2 194 mm www.tlnetworx.com... - Page 21 TL-4X1-HD2 User Manual 9. Troubleshooting & Maintenance Problems Causes Solutions Color losing or no video signal output in HDMI The connecting cables display Check whether the cables may not be connected are connected correctly No HDMI signal output in correctly or it may be and in working condition.
- Page 22 Any transport costs are borne by the users during the warranty. 1. Product Limited Warranty: TechLogix warrants that its products will be free from defects in materials and workmanship for three years, which starts from the first day you buy this product (The purchase invoice shall prevail).
