Techlogix TL-5X1-HDV User Manual

Compact scaler switcher
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
User Manual
TL-5X1-HDV
Compact Scaler Switcher
All Rights Reserved
Version: TL-5X1-HDV_160711

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TL-5X1-HDV and is the answer not in the manual?

Questions and answers

Related Manuals for Techlogix TL-5X1-HDV

Summary of Contents for Techlogix TL-5X1-HDV

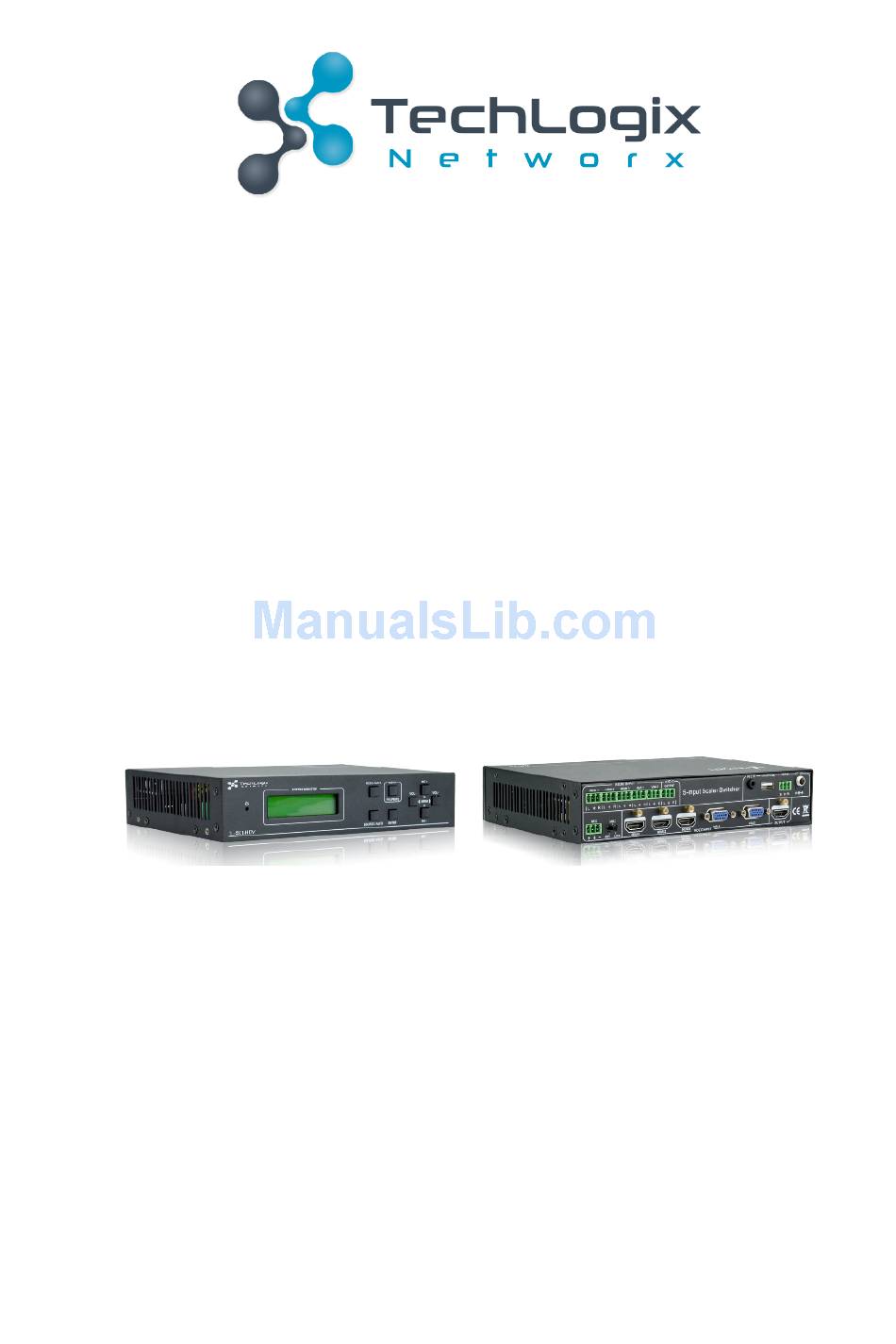

  • Page 1 User Manual TL-5X1-HDV Compact Scaler Switcher All Rights Reserved Version: TL-5X1-HDV_160711...
  • Page 2 TL-5X1-HDV User Manual Preface Read this user manual carefully before using this product. Pictures shown in this manual is for reference only, different model and specifications are subject to real product. This manual is only for operation instruction only, not for any maintenance usage.
  • Page 3 TL-5X1-HDV User Manual SAFETY PRECAUTIONS To insure the best from the product, please read all instructions carefully before using the device. Save this manual for further reference. l Unpack the equipment carefully and save the original box and packing material for...

  • Page 4: Table Of Contents

    TL-5X1-HDV User Manual Table of Contents 1. Introduction ............................. 1 1.1 Introduction to TL-5X1-HDV .................... 1 1.2 Features ..........................1 1.3 Package Contents ........................ 1 2. Product Appearance ........................3 2.1 Front Panel ..........................3 2.2 Rear Panel ..........................5 3.
  • Page 5 TL-5X1-HDV User Manual 4.5.3 Sound ........................26 4.5.4 Setup ........................27 4.6 Instructions of VGA Converting Cable ................. 27 5. Specification ..........................30 6. Panel Drawing ..........................30 7. Troubleshooting & Maintenance ....................33 8. After-sales Service ........................35 www.tlnetworx.com...

  • Page 6: Introduction

    Introduction 1.1 Introduction to TL-5X1-HDV TL-5X1-HDV is a compact mini scaler switcher with 5 video inputs (3 HDMI, 2 VGA) and 6 audio inputs (3 HDMI audio & 2 VGA audio: switched following the video; and 1 MIC audio input). The VGA input supports VGA, YPbPr and C-video, so the scaler switcher is compliant with multiple video signals.
  • Page 7 TL-5X1-HDV User Manual Ø 4 x Plastic cushions Ø 1 x Power Adapter (DC 12V) Ø 1 x IR remote Ø 1 x Warranty Card Ø 1 x Conformity Certificate Ø 1 x User Manual Notes： Please confirm if the product and the accessories are all included, if not, please contact with the dealers.

  • Page 8: Product Appearance

    TL-5X1-HDV User Manual Product Appearance 2.1 Front Panel ⑤ ⑥ ⑦ ⑧ ⑨ ① ② ③ ④ ⑩ ① Power indicator Red when powered on, green when in standby mode. ② LCD screen Shows the real-time system status. ③ SOURCE/AUTO...
  • Page 9 TL-5X1-HDV User Manual ⑥ MENU/FWUPDATE l Used as menu button, press it to enter in OSD menu. l Used as software updating button, press and hold on for 7 seconds or more to enter the software updating procedure. ⑦ VOL- l Volume down button, press it to turn down the volume l Used as direction button NEXT when in menus.

  • Page 10: Rear Panel

    USB port, connect with USB flash disk or other storage with update file to update the system firmware. ⑤ RS232 Serial control port, 3p captive screw connector, connect with a control device (such as a computer) to control TL-5X1-HDV. ⑥ 12V DC Power port, connect the 12V DC power adapter. ⑦ MIC...

  • Page 11: System Connection

    TL-5X1-HDV with audio cable accordingly. The audio of HDMI can be set as embedded or external by sending RS232 commands. Step3. Connect an HDMI display device to HDMI output port of TL-5X1-HDV with an HDMI cable. Step4. Connect speakers, headphones or amplifiers to AUDIO OUTPUT port of TL-5X1-HDV.

  • Page 12: Connection Of Microphone

    TL-5X1-HDV User Manual 3.4 Connection of Microphone TL-5X1-HDV provides one 3-level microphone input to accommodate different microphone input modes, including 48V phantom power mode, MIC mode & LINE mode. Ø 48V phantom power input When switch to “48V” (It has a LF cut, high input impedance and high sensitivity in this mode), the MIC input will offer a 48V phantom power.
  • Page 13 TL-5X1-HDV User Manual Ø LINE input When switch to “LINE” (It has a wide frequency response in this mode), the microphone input is used for connecting with line audio or wireless microphone output. There are two different connections: 1) Unbalanced connection: “+”...

  • Page 14: Application

    TL-5X1-HDV User Manual 3.5 Application TL-5X1-HDV has appropriate applications in various occasions, such as conference rooms, training rooms, command & control centers and corporate board rooms. www.tlnetworx.com...

  • Page 15: System Operations

    Once rebooting, TL-5X1-HDV will automatically enter in auto-switching mode, and then detect all inputs and memorize their connection status for future rebooting using. And if the signal last displayed is still available, then TL-5X1-HDV will output the signal. If not, there will be no signal on outputs.

  • Page 16: Software Updating

    Connect INPUT 3 with a source device, then INPUT 3 will be automatically selected. l Remove the signal from INPUT 3, TL-5X1-HDV will search for signal from INPUT 1 to INPUT 5. When it detects that input 2 is available, it will select INPUT 2 to output.

  • Page 17: Volume Adjusting

    TL-5X1-HDV User Manual 4.1.4 Volume Adjusting Not in OSD menu, press VOL -- to decrease line volume, VOL + to increase. Not in OSD menu, press MIC – to decrease MIC volume, MIC + to increase. 4.1.5 Operations in OSD Menus Press MENU button to enter in the OSD menu, and use UP, DOWN, LEFT, RIGHT button to select, press ENTER button to confirm selection.

  • Page 18: Operations Of Ir

    TL-5X1-HDV User Manual 4.2 Operations of IR 4.2.1 IR Remote With its CEC function, users are able to control the TL-5X1-HDV and source devices synchronously via one IR remote. ① Standby button The scaler switcher will enter/exit standby mode. ② Input channel selection buttons INPUT 1 is for HDMI1, INPUT 2 for HDMI2…INPUT 5 for VGA2.

  • Page 19: Operations Of Cec Function

    Using the CEC functions, a user can control an HDMI source device with basic operations (play, pause, fast forward, fast reverse, menu etc). The user is able to control the TL-5X1-HDV and an HDMI source device via the IR remote of TL-5X1-HDV.

  • Page 20: Operations Of Rs232 Control

    TL-5X1-HDV can be controlled by sending RS232 commands. Connect the RS232 port of TL-5X1-HDV and the RS232 port of control device (e.g. a PC). Install the RS232 control software to the control device, then users are able to control the TL-5X1-HDV by sending RS232 commands.
  • Page 21 TL-5X1-HDV User Manual Parameter Configuration area Monitoring area, indicates whether the command sent works. Command Sending area Please set the parameters of COM number, baud rate, data bit, stop bit and the parity bit correctly, and then you are able to send commands in Command Sending Area.

  • Page 22: Rs232 Communication Commands

    TL-5X1-HDV User Manual 4.4.3 RS232 Communication Commands Communication protocol: RS232 Communication Protocol Baud rate: 9600 Data bit: 8 Stop bit: 1 Parity bit: none Command Function Feedback Example Switch Commands 50701% Switch to HDMI 1 input Switch to HDMI 1...
  • Page 23 TL-5X1-HDV User Manual Command Function Feedback Example 50695% Disable Mic precedence Mic precedence: disable 50696% Check Mic precedence status Mic precedence: XXXX 50724% MIC volume up MIC Volume: xx 50725% MIC volume down MIC Volume: xx 508xx% Set MIC volume...
  • Page 24 TL-5X1-HDV User Manual Command Function Feedback Example Change the resolution to1920X1200 50620% Resolution: 1920x1200 WUXGA Change the resolution to1600X1200 50621% Resolution: 1600x1200 UXGA Setup Commands 50604% Lock the front panel buttons Front Panel lock 50605% Unlock the front panel buttons Front Panel Unlock Set the volume to xx.
  • Page 25 TL-5X1-HDV User Manual Command Function Feedback Example 50762% Display mute icon of LINE audio LINE Mute Icon: enable 50763% Don’t display mute icon of MIC audio MIC Mute Icon: disable 50764% Display mute icon of MIC audio MIC Mute Icon: enable...
  • Page 26 TL-5X1-HDV User Manual Command Function Feedback Example 50617% Reset to factory defaults Factory Reset Menu Commands 50609% OK for OSD selection Key: ok 50610% LEFT button Key: left 50611% RIGHT button Key: right 50612% UP button Key: up 50613% DOWN button...
  • Page 27 TL-5X1-HDV User Manual Command Function Feedback Example Check whether the LINE audio is mute 50751% LINE Mute/Unmute or not Check whether the MIC audio is mute 50752% MIC Mute/Unmute or not 50753% Check the freeze status Freeze: enable/disable 50754% Check the panel locked status...
  • Page 28 TL-5X1-HDV User Manual Command Function Feedback Example 50902% Stop CEC cmd: stop 50903% Menu CEC cmd: menu 50904% Retreat CEC cmd: rev 50905% Forward CEC cmd: fwd 50906% CEC cmd: up 50907% Down CEC cmd: down 50908% Left CEC cmd: left...

  • Page 29: Operations In Osd Menu

    TL-5X1-HDV User Manual 4.5 Operations in OSD Menu The TL-5X1-HDV provides a powerful OSD operation menu, contains 4 parts: optional settings, image settings, audio settings and system setting. Press the MENU button on the front panel (or MENU button on IR remote or send command 50616%) to enter the OSD menu to access settings through the OSD menu.

  • Page 30: Picture

    TL-5X1-HDV User Manual the video source is still the same). 2. Second, switch off the present input (e.g. switch to another input). 3. Third, switch to INPUT4/INPUT5 again. HDMI1 Audio Select: switch between Embedded and Line to choose the desired audio input for HDMI1.

  • Page 31: Sound

    TL-5X1-HDV User Manual Color Temperature: Includes Cool, Medium, Warm and User. In User mode, you will be able to set values for Red, Green and Blue (RGB). Aspect Ratio: Includes Auto, 4:3, 16:9, Zoom1, Zoom2, Just Scan, Panorama, and Point To Point.

  • Page 32: Setup

    VERSION: Displays software version. 4.6 Instructions of VGA Conversion Cable As VGA source supports YPbPr and C-video source, the TL-5X1-HDV includes 2 VGA conversion cables compliant with these signals. When the need arises to select these signals as an input source, please switch to channel INPUT 4 (or INPUT 5), and then set the signal type in OSD.
  • Page 33 TL-5X1-HDV User Manual l Connect with Component Video (YPbPr) Source A. Operation Examples: 1. Via front panel buttons & OSD Press MENU button on front panel to enter in OSD, and then enter in OPTION setting menu: set “INPUT 4 Select” to YPbPr1, and “INPUT 5 Select” to YPbPr2.
  • Page 34 TL-5X1-HDV User Manual l Connect with Composite Video (C-VIDEO) Source A. Operation Examples: 1. Via front panel buttons & OSD Press the MENU button on the front panel to enter OSD, and then enter OPTION setting menu: set “INPUT 4 Select” to AV1, and “INPUT 5 Select” to AV2.

  • Page 35: Specification

    TL-5X1-HDV User Manual Specification I/O Connections HDM Inputs Three(3) Type A receptacle VGA Inputs Two(2) HD-15 female receptacle Embedded Audio Inputs Five(5) 3-pin captive screw connectors MIC Input One(1) 3-pin captive screw connector HDMI Output One(1) Type A receptacle Audio Output...
  • Page 36 TL-5X1-HDV User Manual Audio Performance HDMI Embedded Audio PCM, Dolby Digital, DTS, DTS-HD 3 Dual-mono stereo audio for HDMI External Audio Signal 2 Dual-mono stereo audio for VGA 1 MIC input Stereo Channel Separation >80dB @ 1kHz Frequency Response 20Hz~20K Hz Common Mode Rejection >90 dB at 20 Hz ~ 20 kHz...

  • Page 37: Panel Drawing

    TL-5X1-HDV User Manual Other Standard Warranty 3 Year Indicator 1 Power Installation guide, Power adapter, Mounting ears(2 ea), Mounting screws(8 ea), RS232 cable, VGA to YPbPr Included Items cables(2 ea), Plastic cushions (4 ea), Pluggable terminal blacks(7 ea), IR receiver, IR remote...

  • Page 38: Troubleshooting & Maintenance

    TL-5X1-HDV User Manual Troubleshooting & Maintenance Problems Causes Solutions Try another high quality Bad quality output cable cable. Output image is ‘snowy’ Reset the cable on the Loose connection output and the display Check with oscilloscope or No signal at the input /...
  • Page 39 TL-5X1-HDV User Manual Wrong RS232 Type in correct RS232 communication communication parameters parameters. Cannot control the device Switch the TX and RX by control device (e.g. a Communication polarity connections on the PC) through RS232 port incorrect. switcher Send it to authorized Broken RS232 port dealer for checking.

  • Page 40: After-Sales Service

    TL-5X1-HDV User Manual After-sales Service If there appear some problems when running the device, please check and deal with the problems referenced in this user manual. 1) Product Limited Warranty: We warrant that our products will be free from defects in materials and workmanship for three years.
