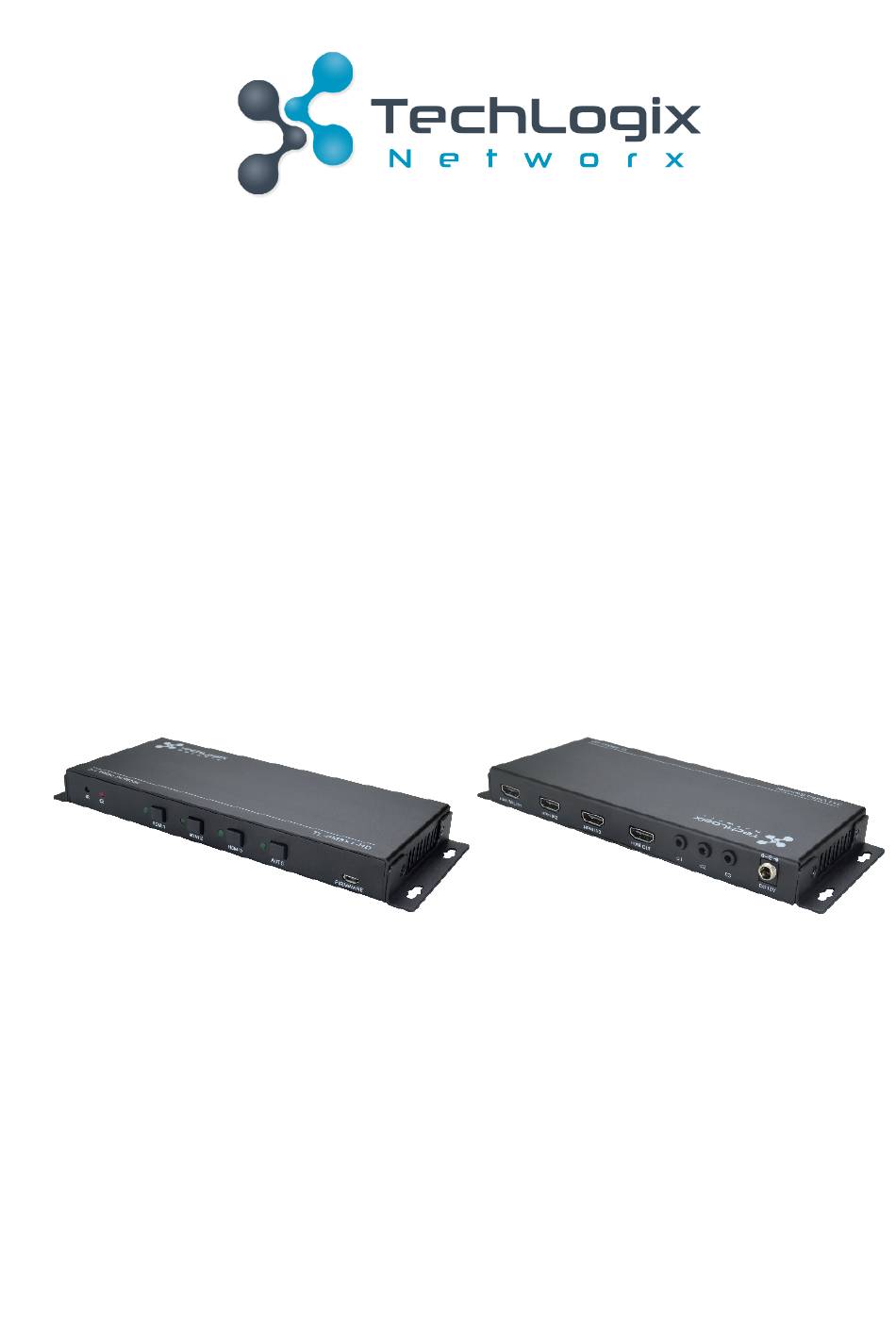

- Page 1 User Manual TL-SM3X1-HD 3x1 Video Switching System All Rights Reserved Version: TL-SM3X1-HD_160925...
- Page 2 TL-SM3X1-HD User Manual Preface Read this user manual carefully before using this product. Pictures shown in this manual are for reference only; the actual product may vary. This manual is only for operation instruction only and not for any maintenance or repair.
- Page 3 TL-SM3X1-HD User Manual SAFETY PRECAUTIONS To insure proper operation, please read all instructions carefully before using the device. Save this manual for further reference. l Unpack the equipment carefully and save the original box and packing material for possible future shipment l Follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
-
Page 4: Table Of Contents
TL-SM3X1-HD User Manual Contents 1. Introduction ............................. 1 1.1 Introduction to TL-SM3X1-HD ..................1 1.2 Features ..........................1 1.3 Package List .......................... 2 2. Panel Description ........................... 3 2.1 Front Panel ........................... 3 2.2 Rear Panel ..........................4 2.3 Example Table Inserts ......................4 3. -
Page 5: Introduction
TL-SM3X1-HD User Manual 1. Introduction 1.1 Introduction to TL-SM3X1-HD The TL-SM3X1-HD is a 3x1 video switcher with three HDMI inputs and one HDMI output. The unit supports HDMI video resolutions up to 4K@30, as well as multichannel audio. The TL-SM3X1-HD supports two operating modes: auto-switch mode and manual switch mode. -
Page 6: Package List
TL-SM3X1-HD User Manual 1.3 Package List l 1 x TL-SM3X1-HD switcher l 1 x IR Remote l 1 x 3.5mm audio cable (3m) (optional) l 1 x Power Adapter (DC 12V 1A) l 2 x Mounting rails (with 8 screws) -
Page 7: Panel Description
TL-SM3X1-HD User Manual 2. Panel Description 2.1 Front Panel HDMI 1 HDMI 2 HDMI 3 AUTO FIRMWARE Name Description Built-in IR ① Receives IR control signals sent from a remote control Receiver ② Power LED Illuminates red when properly powered on... -
Page 8: Rear Panel
TL-SM3X1-HD User Manual 2.2 Rear Panel HDMI/MHL IN 1 HDMI IN 2 HDMI IN 3 HDMI OUT DC12V Name Description HDMI input port 1 ① HDMI/MHL IN 1 Note: Supports both HDMI and MHL connections ② HDMI IN 2 HDMI input port 2 ③... - Page 9 TL-SM3X1-HD User Manual Name Description Button: Selects the corresponding input on the TL- ① SHOW ME SM3X1-HD ② ON/OFF Button: Select to power on/off a connected display ③ HDMI input port Local table connection for sources ④ HDMI output port...
-
Page 10: System Connection
TL-SM3X1-HD User Manual 3. System Connection 3.1 Usage Precautions 1) System should be installed in a clean environment that has a proper temperature and humidity. 2) All of the power switches, plugs, sockets and power cords should be installed properly. -
Page 11: Connection Procedure
If the TL-SM3X1-HD will be permanently mounted to a surface, attach the included Mounting rails with the supplied screws. If the TL-SM3X1-HD will be sitting on a shelf, attach the included rubber feet to the bottom of the unit. Turn off power and disconnect the audio/video equipment by following the manufacturer’s instructions. - Page 12 Power on attached audio/video devices. Important notice: Do not attempt to disassemble or alter the TL-SM3X1-HD housing. There are no user-serviceable parts inside the unit. Doing so will void your warranty. To minimize the possibility of equipment damage from electrostatic discharge (ESD), all source and destination equipment must be powered off during installation.
-
Page 13: System Operations
Press AUTO to enter into auto-switching mode. The auto-switching mode abides by the following principles: Ø New input When a new signal (or connection) is detected, the TL-SM3X1-HD switches to this new signal automatically. Ø Rebooting device The TL-SM3X1-HD will save the last configuration before losing power. If the last... -
Page 14: Ir Remote
TL-SM3X1-HD User Manual 4.2 IR Remote The built-in IR receiver on the front panel will receive IR control signals sent by a remote control (included). ① OFF Powers off the connected display using CEC commands ② ON Powers on the connected display using CEC commands ③... -
Page 15: Specification
TL-SM3X1-HD User Manual 5. Specification Input/output 1 HDMI/MHL Video Input 2 HDMI Video Input Connector 3 female HDMI Input Video Signal HDMI Video Output 1 HDMI Video Output Connector 1 female HDMI Output Video Signal HDMI HDMI output video support HDMI 1.4 & HDCP 1.4;... -
Page 16: Panel Drawing
TL-SM3X1-HD User Manual 6. Panel Drawing HDMI/MHL IN 1 HDMI IN 2 HDMI IN 3 HDMI OUT DC12V 3x1 Video Switcher TL-SM3X1-HD 201.5 mm HDMI 1 HDMI 2 HDMI 3 AUTO FIRMWARE www.tlnetworx.com... -
Page 17: Troubleshooting & Maintenance
Static becomes stronger Check unit and power when connecting the Bad grounding supply ground connection video connectors If your problem persists after following the above troubleshooting steps, please contact your authorized reseller or TechLogix technical support. www.tlnetworx.com... -
Page 18: After-Sales Service
No certificate or invoice as the proof of warranty l Damage caused by force majeure l Non-authorized service 3) Technical Support: When contacting TechLogix support, please have the following information available: l Product part number l Installation and sale date l Detailed failure information www.tlnetworx.com...
