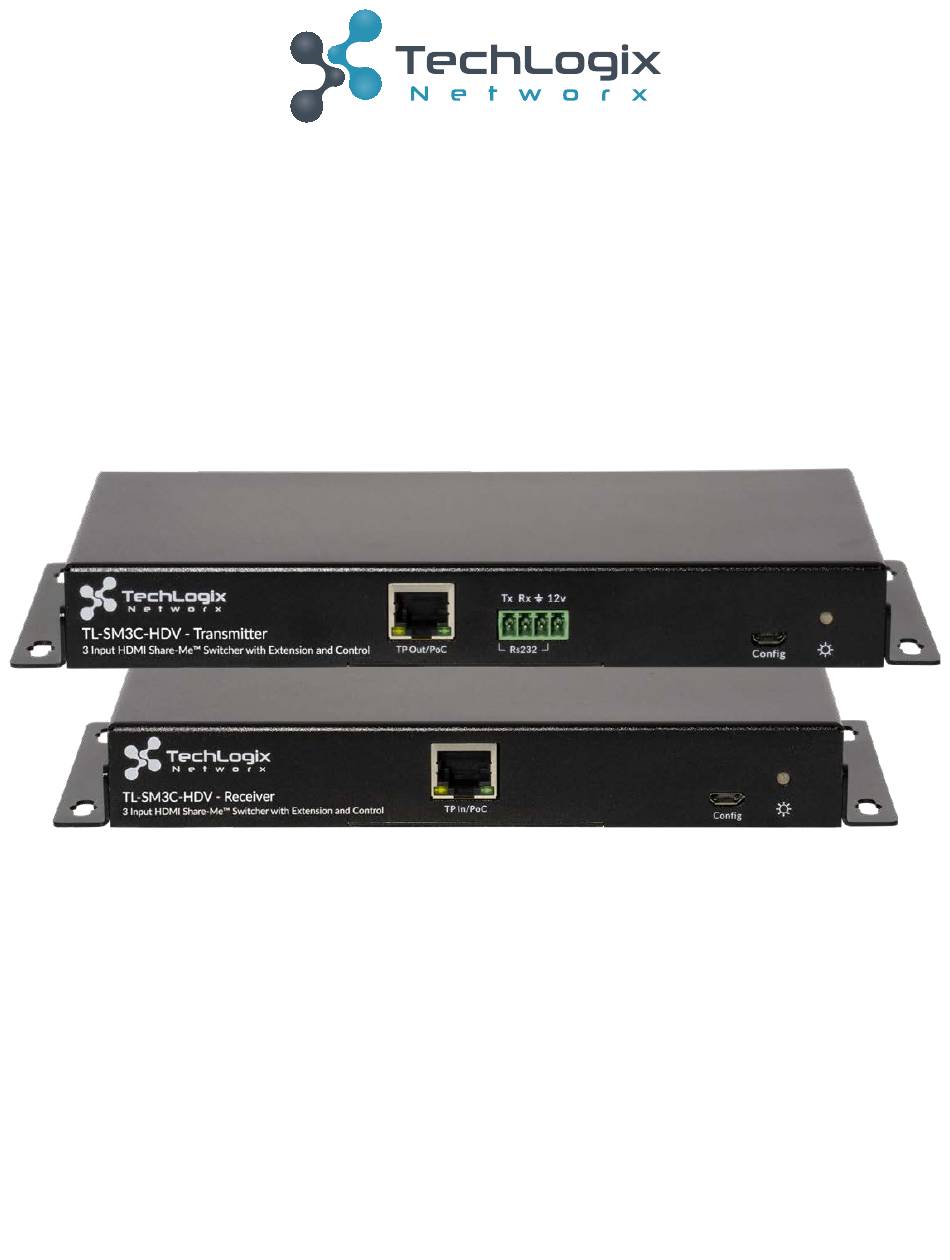

- Page 1 Installation Guide TL-SM3C-HDV Three Input HDMI Share-Me™ Switcher with Extension and Control www.tlnetworx.com | +1-608-960-7242 All Rights Reserved Version: 190219...
-
Page 2: Preface
190219 TL-SM3C-HDV Installation Guide Preface Read this user manual carefully before using this product. Pictures shown in this manual are for reference only; the actual product may vary. This manual is only for operation instructions and not for any maintenance or repair. -
Page 3: Safety Precautions
190219 TL-SM3C-HDV Installation Guide Safety Precautions • To insure proper operation, please read all instructions carefully before using the device. Save this manual for further reference. • Unpack the equipment carefully and save the original box and packing material for possible future shipment. -
Page 4: Table Of Contents
TL-SM3C-HDV Transmitter ........ -
Page 5: Introduction
The TL-SM3C-HDV transmitter features two HDMI inputs and one VGA input with video support up to 4K/30 plus multichannel audio, three control inputs for the TL-SMG series Share-Me™ grommet inserts, and auto-switch mode and manual switch mode. -
Page 6: Included In Each Set
190219 TL-SM3C-HDV Installation Guide Included in Each Set • 1 ea TL-SM3C-HDV Transmitter • 1 ea TL-SM3C-HDV Receiver • 2 ea 3.5mm audio cable (2m) • 1 ea 3-pin to DE-9 RS232 Cable • 1 ea 4-pin Removable Terminal Block •... -
Page 7: Input/Output Overview
Audio In Connect to analog audio source Share-Me™ Control 1 Dry contact closure control port for use with compatible TechLogix table inserts Share-Me™ Control 2 Dry contact closure control port for use with compatible TechLogix table inserts Share-Me™ Control 3... -
Page 8: Tl-Sm3C-Hdv Receiver
190219 TL-SM3C-HDV Installation Guide TL-SM3C-HDV Receiver TL-SM3C-HDV - Receiver 3 Input HDMI Share-Me™ Switcher with Extension and Control Display Control DC 24v Relay 1 Relay 2 HDMI / CEC Out RS232 IR Out Audio Out Letter Name Description TP In/PoC... -
Page 9: System Connection
If the TL-SM3C-HDV will be permanently mounted to a surface, attach the included mounting rails with the supplied screws. If the TL-SM3C-HDV will be sitting on a shelf, attach the included rubber feet to the bottom of the unit. Turn off power and disconnect the audio/video equipment by following the manufacturer’s instructions. -
Page 10: Example System Diagram
190219 TL-SM3C-HDV Installation Guide Example System Diagram 1 & l a y r e e i e l r & ( P o &... -
Page 11: Web-Based Configuration
190219 TL-SM3C-HDV Installation Guide Web-based Configuration All control, video, and network configuration settings are handled in the web-based configuration tool. Connect the TCP/IP port of the Receiver to Ethernet port of PC with twisted pair, and then modify the PC’s static IP network segment to be the same as the TL-SM3C-HD’s. -
Page 12: Av Settings
In addition to selecting the active input, there are settings to determine whether to manually switch inputs via the TechLogix table inserts or third party control or to auto-switch based on active video sensing. The two basic rules of auto-switching are: When a new signal (or connection) is detected, the TL-SM3C-HDV switches to this new signal automatically. -
Page 13: Vga Audio
This setting enables analog audio input conversion for the VGA input. This setting is On by default. EDID The default EDID setting is 1920x1080@60Hz with Stereo Audio. If using the TL-SM3C-HDV with a 4K display, it is highly recommended to use one of the 3840x2160 presets to ensure signal bandwidth compatibility. -
Page 14: Display Control - Rs232
RS232 commands work well without needing to wait for the system to automatically turn off the display. If the TL-SMG-4C will be used with the TL-SM3C-HDV, enter the RS232 commands for Volume + (up), Volume - (down), and Mute in their respective fields. -
Page 15: Display Control - Ir
If the display requires two button presses for power off, click the 2x checkbox. The Display Off Delay Time is the time between the two off commands; the default is 5 seconds. If the TL-SMG-4C will be used with the TL-SM3C-HDV, repeat the IR learning process for Mute, Volume - (down), Volume + (up), and Input Switch. -
Page 16: General Settings
The General Settings configuration page sets the delay time in seconds (0-10800) between no video signal presence and shutting off the system, defines the operation of the relays and sets the activation time when in momementary mode, allows turning off all displays on the LAN, and resets the TL-SM3C-HDV to factory default. -
Page 17: Network
190219 TL-SM3C-HDV Installation Guide Network The Network configuration page allows the user to define whether the TL-SM3C-HDV has a static or dynamic IP address as well as enabling Telnet communication for control of the switcher. -
Page 18: Password
190219 TL-SM3C-HDV Installation Guide Password The Password section of the Display Control configuration is the easiest section to work with. Enter a new password in the New Password field, then retype it into the Confirm New Password field. The password must be at least 5 characters. -
Page 19: Rs232 And Telnet Commands
190219 TL-SM3C-HDV Installation Guide RS232 and Telnet Commands Switching and Display Control Command Function Feedback Example /HDMIx; #HDMIx. Switch to HDMIx. x = 1 or 2 /VGA; #VGA. Switch to VGA. /TVOff; IR/Rx RS232/CEC TV off System off /TVOn; IR/Rx RS232/CEC... -
Page 20: Rs232 Output Configuration
190219 TL-SM3C-HDV Installation Guide RS232 Output Configuration Command Function Feedback Example /SetVolMute:%s; #SetVolMute:%s. Set the RS232 string (%s) for Volume mute /SetVolSub:%s; #SetVolSub:%s. Set the RS232 string (%s) for Volume down /SetVolAdd:%s; #SetVolAdd:%s. Set the RS232 string (%s) for Volume up /SetOff:%s;... -
Page 21: Firmware Updates
Connect a PC (any operating system) to the Service port using the USB type A to a micro USB type B cable. Reconnect power to the receiver. The TL-SM3C-HDV receiver should show up on the computer as a removable drive. The power LED for the receiver should be dark. -
Page 22: Web Gui Update Procedure
Connect the TCP/IP port of the Receiver to Ethernet port of PC with twisted pair, and then modify the PC’s static IP network segment to be the same as the TL-SM3C-HDV’s. For example, the IP address of PC can be modified to 192.168.0.42. - Page 23 10. After a minute or so, the firmware upgrade window will clear and show a Done...rebooting message. 11. Close the web browser. 12. Disconnect power from the TL-SM3C-HDV receiver. 13. Reinstall the product per the “Connection Procedure” on page 5.
-
Page 24: Technical Specifications
190219 TL-SM3C-HDV Installation Guide Technical Specifications Transmitter Inputs and Output Video Inputs 2 HDMI 1 VGA Video Input Connectors 2 female HDMI 1 female VGA (15-pin) Input Video Signal HDMI, VGA Audio Input (with VGA) 1 stereo analog audio Input Audio Signal... -
Page 25: Environmental Characteristics
190219 TL-SM3C-HDV Installation Guide Supported Video, Audio, and Control Maximum Video Compatibility 70 m: Deep Color 36/30/24 Bit at 1080p 40 m: Deep Color 48 Bit at 1080p, 3D, and 4k x 2k (UHD) up to 30 Hz: RGB, YCbCr 4:4:4, YCbCr 4:2:2;... - Page 26 190219 TL-SM3C-HDV Installation Guide Other Warranty 3 years Included Accessories 1 ea Power Supply with US power cable, 2 ea mounting kits, 3 ea 6’ SMC cables, 8 ea rubber bumper feet, 3 ea 3-pin terminal blocks, 1 ea 4-pin terminal block, 1 ea IR emitter, 1 ea RS232 cable for...
