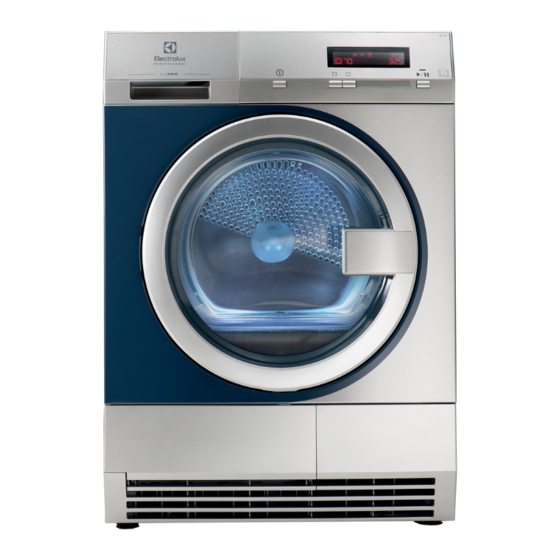

  • Page 1 User Manual Tumble Dryer TE1120P 136947533-A-252022 Original Instructions.
  • Page 2: Table Of Contents

    14. ENVIRONMENTAL CONCERNS..............21 WE’RE THINKING OF YOU Thank you for purchasing an Electrolux Professional appliance. You’ve chosen a product that brings with it decades of professional experience and innovation. Ingenious and stylish, it has been designed with you in mind. So whenever you use it, you can be safe in the knowledge that you’ll get great results every time.
  • Page 3: Safety Information

    ENGLISH SAFETY INFORMATION Before beginning the installation and use of this appliance, carefully read the supplied instructions. The manufacturer is not responsible for any injuries or damage that are the result of incorrect installation or usage. Always keep the instructions in a safe and accessible location for future reference.
  • Page 4 1.2 Installation This appliance is for commercial use only. • Remove all the packaging. • Do not install or use a damaged appliance. • Follow the installation instructions supplied with the • appliance. Always take care when moving the appliance as it is •...
  • Page 5 ENGLISH When the appliance is in its permanent position, check if • it is levelled correctly with the aid of a spirit level. If it is not, adjust the feet accordingly. Make sure that the appliance is disconnected from the •...
  • Page 6 Do not use multi-plug adapters and extension cables. • Do not pull the mains cable to disconnect the appliance. • Always pull the mains plug. Do not touch the mains cable or the mains plug with • wet hands. If the mains power supply cable is damaged, it must be •...
  • Page 7 ENGLISH Fabric softeners, or similar products, should only be • used as specified by the product manufacturer’s instructions. Remove all objects from items that could be a source of • fire ignition such as lighters or matches. WARNING: Never stop a tumble dryer before the end of •...
  • Page 8 To replace the internal lighting, contact the Authorised • Service Centre. 1.6 Care and cleaning WARNING! Risk of injury or damage to the appliance. Do not use water spray and steam to clean the • appliance. Clean the appliance with a moist soft cloth. Use only •...
  • Page 9: Product Description

    ENGLISH 2. PRODUCT DESCRIPTION Water container Adjustable feet Control panel Condenser door Internal light Condenser cover Appliance door Locks for condenser cover Filter Rating plate Button for condenser door Airflow slots For ease of loading laundry or ease of installation the door is reversible.
  • Page 10: Accessories

    3. ACCESSORIES 3.1 Stacking kit water container must stay in the appliance. The installed hose must be on the height from minimum of 50 cm to maximum of 1 m from floor level. The hose cannot be in loop. Decrease the length of the hose if necessary.
  • Page 11: Control Panel

    ENGLISH 3.4 Coin operated machine If the appliance is set in a public place, it can be connected to a coin operated machine. Coin meter is distributed and installed only by the authorized Electrolux service. 4. CONTROL PANEL Display ON/OFF button with the Auto Off function Start/Pause button Program buttons...
  • Page 12: Programme Table

    Symbol on the display Symbol description normal/medium temperature level easy care temperature level drying temperature easy care drying temperature drain the water container indicator: clean filter indicator: do the check of the heat exchanger indicator: drying phase indicator: cooling phase indicator: crease guard phase indicator:...
  • Page 13: Before First Use

    ENGLISH 7. BEFORE FIRST USE Before you use the appliance to dry • Start a 1 hour programme with moist items: laundry. • Clean the tumble dryer drum with a moist cloth. 8. DAILY USE 8.1 Preparing the laundry • Always set the programme suitable for the type of laundry.
  • Page 14: Hints And Tips

    8.4 Auto Off function 2. Push the Start/Pause button. The appliance starts and the LED above To decrease the energy consumption, the the button stops flashing and stays on. Auto Off function turns the appliance off automatically: 8.7 Program change •...
  • Page 15: Care And Cleaning

    ENGLISH 10. CARE AND CLEANING 10.1 Cleaning the filter At the end of each cycle the symbol Filter is on the display and you must clean the filter. The symbol flashes on the display - the filter is missing. The tumble dryer cannot start.
  • Page 16: Condenser Door

    10.3 Cleaning the condenser Condenser flashes on If the symbol the display, the condenser and its compartment must be cleaned. To clean the condenser and its compartment: 1. Open the door. 2. Move the release button on the bottom of the door to open the condenser door.
  • Page 17 ENGLISH Use a standard neutral soap detergent to clean the inner surface of the drum and drum lifters. Dry the cleaned surfaces with a soft cloth. CAUTION! Do not use abrasive materials or steel wool to clean the drum. 10.5 Cleaning the control panel 6.
  • Page 18: Troubleshooting

    11. TROUBLESHOOTING Possible cause Remedy Problem The tumble dryer is not connec- Connect in at mains socket. ted to mains supply. Check fuse in fuse box (domestic installation). The loading door is opened. Close the loading door. ON/OFF button was not ON/OFF button.
  • Page 19: Technical Data

    ENGLISH Possible cause Remedy Problem You try to change the programme Turn the tumble dryer off and on. or the option after the start of the Make the new selection. cycle. Err (Error) on the display. The option you try to activate is Turn the tumble dryer off and on.
  • Page 20: Product Information Sheet In Reference To E.u. Regulation 1369/2017

    (REGULATION (EU) No. 392/2012). 13. PRODUCT INFORMATION SHEET IN REFERENCE TO E.U. REGULATION 1369/2017 Product Information Sheet Trade Mark Electrolux Professional Model TE1120P PNC916098136 Rated capacity in kg Air vented or condenser tumble dryer...
  • Page 21: Environmental Concerns

    ENGLISH Energy consumption of the standard cotton programme at 4,77 full load in kWh Energy consumption of the standard cotton programme at 2,53 partial load in kWh Power consumption of the off-mode in W 0,12 Power consumption in left-on mode in W 0,12 Duration of the left on mode in minutes The 'standard cotton programme' used at full and partial...
