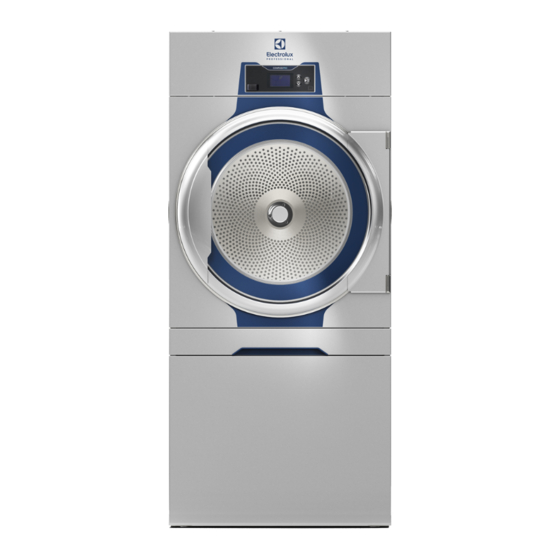

- Page 1 User manual Tumble dryer TD6–14 Type N2... 438909980/GB, IE Original instructions 2022.11.18...
-
Page 3: Table Of Contents
Contents Contents 1 Safety Precautions ..........................5 Additional safety precautions for gas heated tumble dryer .............7 General information ........................7 Commercial use only........................7 Ergonomics certification ......................7 Symbols............................8 2 Warranty terms and exclusions......................9 3 Operating panel ..........................10 4 Program description .......................... 11 General........................... 11 Program description ......................... -
Page 5: Safety Precautions
User manual 1 Safety Precautions • Servicing shall be carried out only by authorized personnel. • Only authorized spare parts, accessories and consumables shall be used. • The machine is not to be used if industrial chemicals have been used for cleaning. •... - Page 6 User manual • Oil-affected items can ignite spontaneously, especially when exposed to heat sources such as in a tumble dryer. The items become warm, causing an oxidation reaction in the oil. Oxidation creates heat. If the heat cannot escape, the items can become hot enough to catch fire.
-
Page 7: Additional Safety Precautions For Gas Heated Tumble Dryer
User manual 1.1 Additional safety precautions for gas heated tumble dryer • Before installation, check that the local distribution conditions, nature of gas and pres- sure and the adjustment of the appliance are compatible. • The machine is not to be installed in rooms containing cleaning machines with per- chloroethylene, TRICHLOROETHYLENE or CHLOROFLUOROCONTAINING HY- DROCARBONS as cleaning agents. -
Page 8: Symbols
User manual In case several machines are managed by the same operator the repetitive movements will increase and as a conse- quence of this the related biomechanical risk will increase exponentially. The possible postural risks are the interaction with the user interface, display and buttons. Follow the below recommendations to avoid, as much as possible, operators acquiring bodily injury. -
Page 9: Warranty Terms And Exclusions
Warranty will be applicable where the customer has used only genuine spare parts and has performed maintenance in accordance with Electrolux Professional user and maintenance documentation made available in paper or elec- tronic format. Electrolux Professional strongly recommends using Electrolux Professional approved cleaning, rinse and descaling agents to obtain optimal results and maintain product efficiency over time. -
Page 10: Operating Panel
User manual 3 Operating panel fig.X00727 Display Up- and down arrows that are used to scroll up and down through the menus on the display. Start- and pause button... -
Page 11: Program Description
User manual 4 Program description 4.1 General The machine is equipped with a number of programs adapted to the range of use to which the machine is intended — different markets use different programs. The following program description is a short description of some exam- ples of programs that can be used. - Page 12 User manual Automatic programs Program name Care label Program description and display symbol NORMAL TEMP Normal temperature. EXTRA DRY The program will stop automatically when the garments are extra dry. Low temperature. LOW TEMP EXTRA DRY The program will stop automatically when the garments are extra dry. NORMAL TEMP Normal temperature.
-
Page 13: Automatic Fan Control
User manual Time programs Program name Care label Description and display symbol NORMAL TEMP Normal temperature. DRIES SET TIME Different drying times can be selected. The program will stop when the time is up. Low temperature. LOW TEMP DRIES SET TIME Different drying times can be selected. -
Page 14: Handling
User manual 5 Handling 5.1 Load Note! Remove all objects from pockets and make sure there are no metal objects such as screws, pins etc. left. Metal objects might cause damage to the drum. Make sure the filter is clean. fig.X00725A... -
Page 15: How To Start The Machine
User manual Load the goods into the machine and close the door. The recommended maximum load is 14.2 kg. fig.X00735 5.2 How to start the machine Automatic programs Select program with the up- and down arrows. Start the machine by pressing Time programs Select program with the up- and down arrows. -
Page 16: When Program Has Ended
User manual Pause It is possible to pause an ongoing program. Select PAUSE and activate. For some machines it is also possible to pause directly when pressing When pressing again the program will continue. End a program It is possible to end a program after start. Select END PROGRAM and activate. - Page 17 User manual Clean the filter The filter must be cleaned after each drying cycle. fig.X00725A...
-
Page 18: Error Codes
User manual 6 Error codes A fault in the program or in the machine is indicated by an error code on the display. Some of these error codes can be solved easily without contacting service personnel. Error Text Cause/Action code 12:11 DRYING ERROR WITH RMC The RMC system (Residual moisture system) in the machine indicates that the garment is not... -
Page 19: Maintenance
User manual 7 Maintenance 7.1 General It is the responsibility of the owner of the machine/the laundry manager to make sure that maintenance is periodically performed. Check the “Maintenance manual” for a complete guide on the maintenance to be performed by the owner of the ma- chine/the laundry manager and also by qualified service personnel. - Page 20 User manual Clean the filter and filter drawer. Check that the parts are not damaged. fig.X00725A Remove any lint and dust around the machine.
-
Page 21: Machines With Heat Pump
User manual 7.4 Machines with heat pump 7.4.1 Second lint filter There are two warning messages indicating that the second filter shall be cleaned: 1. “CLEAN FIRST AND SECOND FILTER.” 2. “CLEAN FIRST AND SECOND FILTER. IF NOTICE REMAINS, CONTACT RESPONSIBLE FOR CHANGING THE SPECIAL FILTER.”... -
Page 22: Disposal Information
User manual 8 Disposal information 8.1 Disposal of appliance at end of life Before disposing of the machine, make sure to carefully check its physical condition, and in particular any parts of the structure that can give or break during scrapping. The machine’s parts must be disposed of in a differentiated way, according to their different characteristics (e.g. - Page 24 Electrolux Professional AB 341 80 Ljungby, Sweden www.electroluxprofessional.com...
