Summary of Contents for Electrolux Professional 916097782

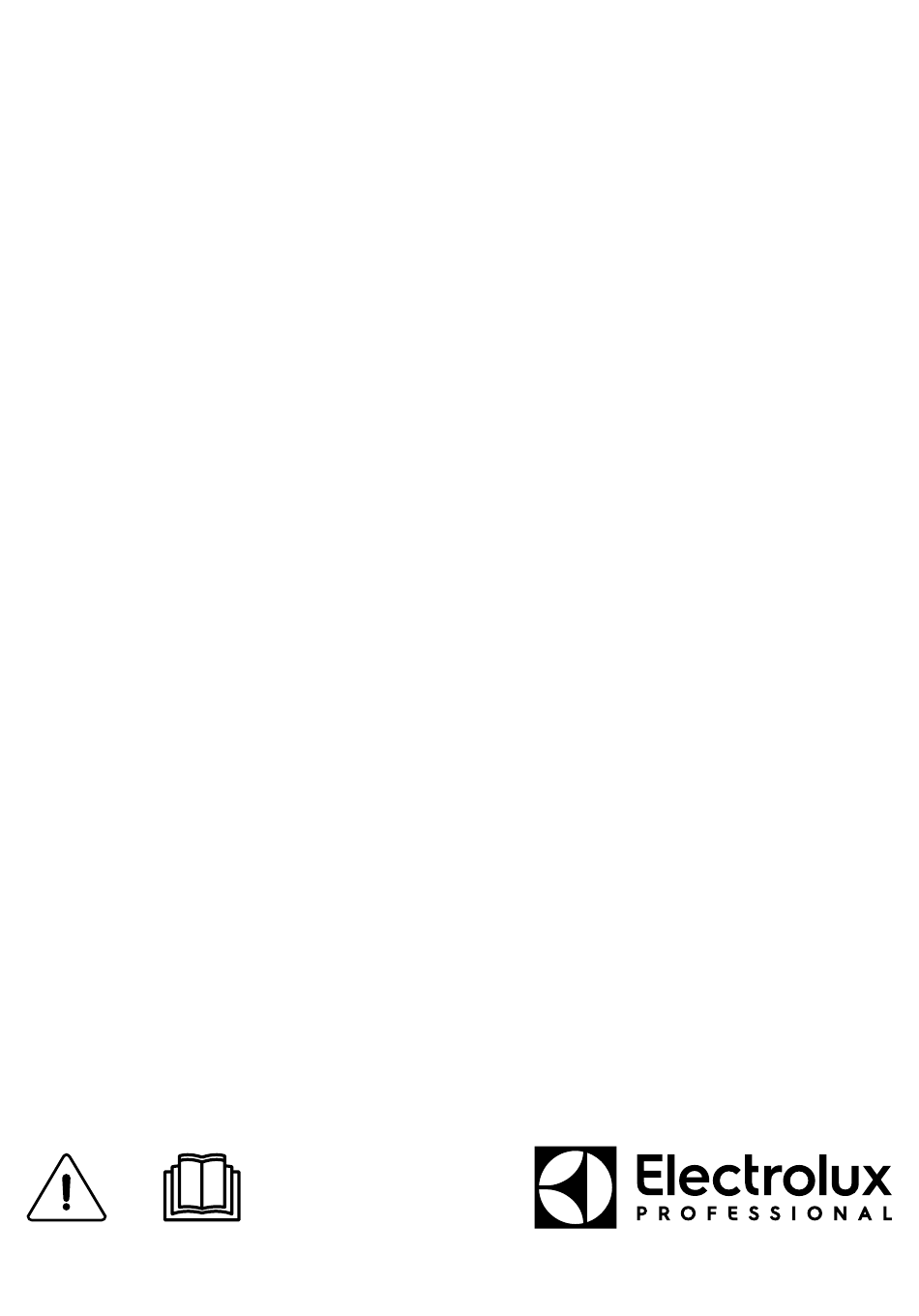

- Page 1 User manual Tumble dryer TE1120 PNC 916097782 136939842/EN Original instructions 2023.09.05...
-
Page 3: Table Of Contents
Contents Contents 1 Safety Information ..........................5 Children and vulnerable people safety ..................5 Installation..........................6 Electrical connection ........................7 Use............................8 Internal lighting ..........................9 Care and cleaning........................9 Service .............................9 Disposal............................9 2 Warranty terms and exclusions......................10 3 Product description..........................11 4 Accessories ............................12 Stacking kit..........................12 Draining kit ..........................12 Pedestal with the drawer ......................12 Coin operated machine ......................13... -
Page 5: Safety Information
User manual 1 Safety Information Before beginning the installation and use of this appliance, carefully read the supplied instructions. The manufacturer is not responsible for any injuries or damage that are the result of incorrect installation or usage. Always keep the in- structions in a safe and accessible location for future reference. -
Page 6: Installation
User manual 1.2 Installation • This appliance is for commercial use only. • Remove all the packaging. • Do not install or use a damaged appliance. • Follow the installation instructions supplied with the appliance. • Always take care when moving the appliance as it is heavy. Always use safety gloves and enclosed footwear. -
Page 7: Electrical Connection
User manual 1.3 Electrical connection Warning Risk of fire and electric shock. • The appliance must be correctly earthed. The manufacturer is not responsible for the consequences of an inadequate earthing system. • Make sure that the parameters on the rating plate are compatible with the electrical rat- ings of the mains power supply. -
Page 8: Use
User manual 1.4 Use Warning Risk of injury, electric shock, fire, burns or damage to the appliance. • Obey the maximum load volume of 8 kg (refer to the “Programs” chapter). • Do not change the specification of the appliance. •... -
Page 9: Internal Lighting
User manual 1.5 Internal lighting Warning Risk of injury. • Concerning the lamp(s) inside this product and spare part lamps sold separately: These lamps are intended to withstand extreme physical conditions in household appli- ances, such as temperature, vibration, humidity, or are intended to signal information about the operational status of the appliance. -
Page 10: Warranty Terms And Exclusions
Warranty will be applicable where the customer has used only genuine spare parts and has performed maintenance in accordance with Electrolux Professional user and maintenance documentation made available in paper or elec- tronic format. Electrolux Professional strongly recommends using Electrolux Professional approved cleaning, rinse and descaling agents to obtain optimal results and maintain product efficiency over time. -
Page 11: Product Description

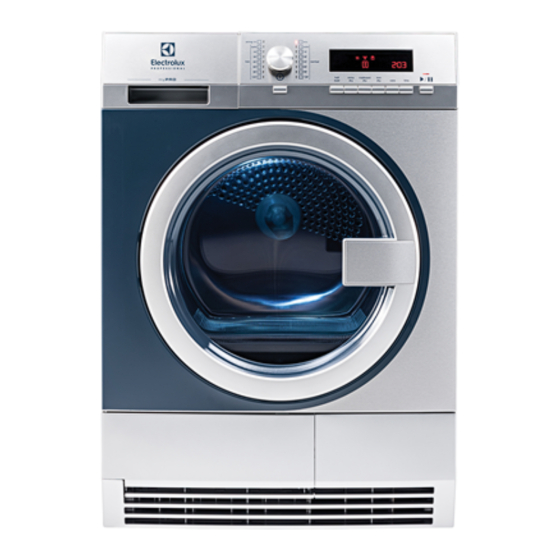

User manual 3 Product description fig.X02193 Water container Control panel Internal light Appliance door Filter Button for condenser door Airflow slots Adjustable feet Condenser door Condenser cover Locks for condenser cover Rating plate For ease of loading laundry or ease of installation the door is reversible. (See separate leaflet). -
Page 12: Accessories
User manual 4 Accessories 4.1 Stacking kit It is available from your authorized vendor. Stacking kit can be used only with the washing machines specified in the leaflet. See the leaflet attached. Read carefully the instructions supplied with the accessory. fig.X02238 4.2 Draining kit It is available from your authorized vendor (can be attached to some types of the tumble dryers). -
Page 13: Coin Operated Machine
User manual 4.4 Coin operated machine If the appliance is set in a public place, it can be connected to a coin operated machine. fig.X02241... -
Page 14: Control Panel
User manual 5 Control panel fig.X02194 Program dial Display Start/Pause button Options buttons Program indicators ON/OFF button with the Auto Off function 5.1 Display fig.X02195 Symbol on the display Symbol description Half load Dryness - extra dry Dryness - cupboard dry Dryness - iron dry Indicator: drain the water container Indicator: clean filter... -
Page 15: Coin Operated Machines
User manual 6 Coin operated machines • Insert correct amount of coins. When inserting coins, the display on the coin meter will count down to “00” and the machine will be ready to start. • Push the Start/Pause button to start the machine. -
Page 16: Programs
User manual 7 Programs There are two types of programs, automatic programs and time programs. • Automatic programs has moisture detection and will stop when selected dryness is achieved. • Time programs has no moisture detection and will stop when the preset or selected time has ended. The following table shows the available programs and a short description of those: Automatic programs Maximum load*... -
Page 17: Time
User manual 8.6 Time This allows the user to increase time of drying in steps of 5 minutes. 9 Before first use Before you use the appliance for the first time do these operations: • Clean the tumble dryer drum with a moist cloth. •... -
Page 18: Daily Use
User manual 10 Daily use 10.1 Preparing the laundry Note! Very often the clothes after washing cycle are kneaded and tangled altogether. Drying kneaded and tangled clothes is inefficient. To assure proper air flow and even drying it is recommended to shake and load one by one the clothes to the tumble dryer. -
Page 19: Turning On The Appliance
User manual 10.3 Turning on the appliance To turn on the appliance: • Push the ON/OFF button. If the appliance is on, some indications come in to the view on the display. fig.X03359 10.4 Auto Off function To decrease the energy consumption, the Auto Off function turns the appliance off automatically: •... -
Page 20: Starting A Program
User manual 10.7 Starting a program To start the program: • Touch the Start/Pause button. • The appliance starts and the LED above the button stops flashing and stays on. fig.X02215 10.8 Program change To change a program: 1. Push the ON/OFF button to turn the appliance off. 2. -
Page 21: Hints And Tips
User manual 11 Hints and tips 11.1 Ecological hints • Spin the laundry well before drying. • Do not exceed the load sizes which are specified in the programs chapter. • Clean the filter after each drying cycle. • Do not use fabric softener to wash and then dry. In the tumble dryer laundry becomes soft automatically. •... -
Page 22: Care And Cleaning
User manual 12 Care and cleaning 12.1 Cleaning the filter At the end of each cycle the symbol Filter appears on the display indicating that you must clean the filter. If the symbol Filter flashes on the display it indicates that the filter is missing. The tumble dryer cannot start. The filter collects the lint. -
Page 23: Emptying The Water Container
User manual fig.X02227 5. If necessary, clean the filter with a vacuum cleaner. Close the filter. 6. If necessary, remove lint from the filter socket and gasket. You can use a vacuum cleaner. Place the filter back in- side the filter socket. fig.X02229 12.2 Emptying the water container Empty the condensed water container after each drying cycle. -
Page 24: Cleaning The Condenser
User manual 12.3 Cleaning the condenser If the symbol Condenser flashes on the display, the condenser and its compartment must be cleaned. To clean the condenser and its compartment: 1. Open the door. 2. Slide the release button on the bottom of the door to open the condenser door. fig.X02233 3. -
Page 25: Cleaning The Humidity Sensor
User manual 7. Put the condenser back inside the bottom compartment. 8. Close the condenser cover. 9. Lock the two blockages until they snap. 10. Close the condenser door. 12.4 Cleaning the humidity sensor Caution Risk of humidity sensor damage. Do not use abrasive materials or steel wool to clean the sensor. To assure best drying results the appliance is equipped with metal humidity sensor. -
Page 26: Cleaning The Airflow Slots
User manual 12.7 Cleaning the airflow slots Use a vacuum cleaner to remove the fluff from the airflow slots. -
Page 27: Trouble Shooting
User manual 13 Trouble shooting Problem* Possible cause Remedy The tumble dryer is not connected to mains supply. Connect in at mains socket. Check fuse in fuse box (do- mestic installation). The loading door is opened. Close the loading door. The ON/OFF button was not pushed. -
Page 28: Technical Data
User manual 14 Technical data Height x Width x Depth 850 x 600 x 605 mm (maximal 648 mm) Max. depth with the appliance door open 1072 mm Max. width with the appliance door open 950 mm Adjustable height 850 mm (+ 15 mm - feet regulation) Drum volume 118 l Maximum load volume... -
Page 29: Product Information Sheet According In Reference To E.u. Regulation 1369/2017
User manual 14.1 Product information sheet according in reference to E.U. REGULATION 1369/2017 Trade Mark Electrolux Professional Model TE1120 PNC916097782 Rated capacity in kg Air vented or condenser tumble dryer Condenser Energy efficiency class Energy consumption in kWh per year, based on 160 drying cycles of the standard cotton program at full and partial load, and the consumption of the low-power modes. -
Page 30: Disposal Information
User manual 15 Disposal information 15.1 Disposal of appliance at end of life Before disposing of the machine, make sure to carefully check its physical condition, and in particular any parts of the structure that can give or break during scrapping. The machine’s parts must be disposed of in a differentiated way, according to their different characteristics (e.g. - Page 32 Electrolux Professional AB 341 80 Ljungby, Sweden www.electroluxprofessional.com...
