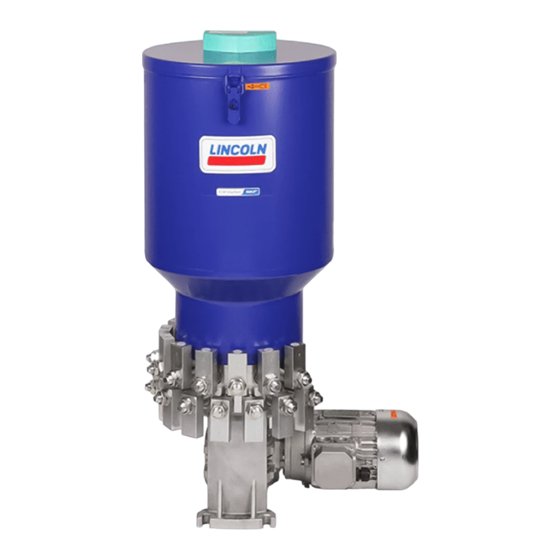

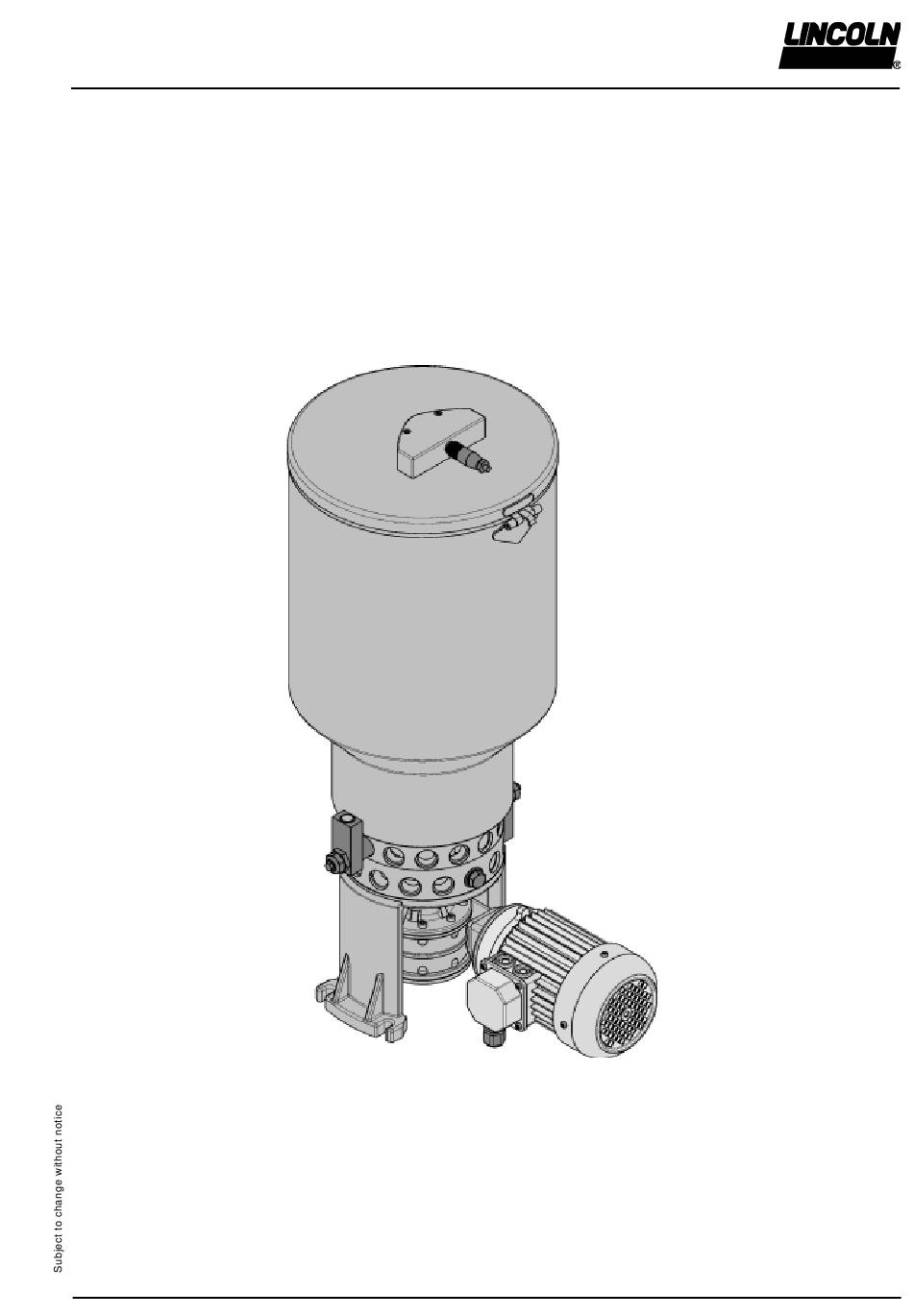

- Page 1 Owner Manual Multiline Pump Model 230 2.1A-38018-B03 Multiline Pump Model 230 4484a03 Page 1 of 22 LINCOLN GmbH & Co. KG • Postfach 1263 • D-69183 Walldorf • Tel +49 (6227) 33-0 • Fax +49 (6227) 33-259...
-
Page 2: Table Of Contents
- must be supplemented by the respective national regulati- ons concerning the prevention of accidents and protection of the environment. Page 2 of 22 LINCOLN GmbH & Co. KG • Postfach 1263 • D-69183 Walldorf • Tel +49 (6227) 33-0 • Fax +49 (6227) 33-259... -
Page 3: Safety Instructions
• Warnings directly fixed to the machine must always be observed and must be kept in completely legible condition. Page 3 of 22 LINCOLN GmbH & Co. KG • Postfach 1263 • D-69183 Walldorf • Tel +49 (6227) 33-0 • Fax +49 (6227) 33-259... -
Page 4: Appropriate Use
• If other parts are used, the manufacturer may be released from its liability for the resulting consequences. Page 4 of 22 LINCOLN GmbH & Co. KG • Postfach 1263 • D-69183 Walldorf • Tel +49 (6227) 33-0 • Fax +49 (6227) 33-259... -
Page 5: Description
500 V, 50 Hz 000 : pump without motor, however with connecting flange Page 5 of 22 LINCOLN GmbH & Co. KG • Postfach 1263 • D-69183 Walldorf • Tel +49 (6227) 33-0 • Fax +49 (6227) 33-259... -
Page 6: General
3 - Stirring paddle with scraper 6 - Worm gear motor 4485a03 Bild 2: Sectional drawing of pump model 230 Page 6 of 22 LINCOLN GmbH & Co. KG • Postfach 1263 • D-69183 Walldorf • Tel +49 (6227) 33-0 • Fax +49 (6227) 33-259... -
Page 7: Operation Of The Low Level Control For Grease Reservoir
- Ø 7 mm:....0.23 cm Adjusting range :..........25 % bis 100 % Page 7 of 22 LINCOLN GmbH & Co. KG • Postfach 1263 • D-69183 Walldorf • Tel +49 (6227) 33-0 • Fax +49 (6227) 33-259... -
Page 8: Erection And Installation
• Refer to the respective terminal diagrams in the annex and to the electrical wiring diagram Page 8 of 22 LINCOLN GmbH & Co. KG • Postfach 1263 • D-69183 Walldorf • Tel +49 (6227) 33-0 • Fax +49 (6227) 33-259... -
Page 9: Operating Instructions
* Adjust the required lubricant output at the pump elements. quate safety valve (max. opening pressure : 350 bar) * Switch the pump off. Page 9 of 22 LINCOLN GmbH & Co. KG • Postfach 1263 • D-69183 Walldorf • Tel +49 (6227) 33-0 • Fax +49 (6227) 33-259... -
Page 10: Putting Into Operation When Fluid Lubricants Are Dispensed
* After the adjustment of the output, tighten counter nut 2 (Fig. 3). Tightening torque: max. 12 Nm. Page 10 of 22 LINCOLN GmbH & Co. KG • Postfach 1263 • D-69183 Walldorf • Tel +49 (6227) 33-0 • Fax +49 (6227) 33-259... -
Page 11: Maintenance And Repair
• They are subject to a natural wear which depends on the operating time and operating pressure and must therefore be replaced. Page 11 of 22 LINCOLN GmbH & Co. KG • Postfach 1263 • D-69183 Walldorf • Tel +49 (6227) 33-0 • Fax +49 (6227) 33-259... - Page 12 4070a96 Fig. 8 - Pump element installed correctly Page 12 of 22 LINCOLN GmbH & Co. KG • Postfach 1263 • D-69183 Walldorf • Tel +49 (6227) 33-0 • Fax +49 (6227) 33-259...
- Page 13 Maintenance of the ultrasonic sensor (reser- voir “...XYBU”) • Take care that the surface of the sensor is clean. Page 13 of 22 LINCOLN GmbH & Co. KG • Postfach 1263 • D-69183 Walldorf • Tel +49 (6227) 33-0 • Fax +49 (6227) 33-259...
-
Page 14: Troubleshooting
Walldorf works or call for a specialist who will carry Abt. Zentraler Kundendienst out the repair on site. Postfach 1263 D-69183 Walldorf Page 14 of 22 LINCOLN GmbH & Co. KG • Postfach 1263 • D-69183 Walldorf • Tel +49 (6227) 33-0 • Fax +49 (6227) 33-259... -
Page 15: Component Parts Of Pump 230
Component Parts of Pump Model 230-M 100-30XYBU-.. 4486a03 Fig. 11 - Component parts of the pump model 230 Page 15 of 22 LINCOLN GmbH & Co. KG • Postfach 1263 • D-69183 Walldorf • Tel +49 (6227) 33-0 • Fax +49 (6227) 33-259... - Page 16 2 O-ring 22 x 2 1 O-ring 15.3 x 24 1 gasket 22.7 x 27 x 1.5 Page 16 of 22 LINCOLN GmbH & Co. KG • Postfach 1263 • D-69183 Walldorf • Tel +49 (6227) 33-0 • Fax +49 (6227) 33-259...
-
Page 17: Annex : Dimensioned Drawing
Dimensioned Drawing Pump P230 - MG100 - 30XYBU - ..4487a03 Fig. 16 - Dimensioned drawing for pump P230 - MG100- 30XYBU - ..Page 17 of 22 LINCOLN GmbH & Co. KG • Postfach 1263 • D-69183 Walldorf • Tel +49 (6227) 33-0 • Fax +49 (6227) 33-259... -
Page 18: Data Sheets For Motors
265/460 V ± 5%, 60Hz 480 V ± 5%, 60Hz Other voltages and/or special designs available on request Page 18 of 22 LINCOLN GmbH & Co. KG • Postfach 1263 • D-69183 Walldorf • Tel +49 (6227) 33-0 • Fax +49 (6227) 33-259... - Page 19 For motors exposed to strong temperature changes, especially when operated in humid environments, we recommend providing condensate bores or installing an auxiliary heating system for stationary periods. Page 19 of 22 LINCOLN GmbH & Co. KG • Postfach 1263 • D-69183 Walldorf • Tel +49 (6227) 33-0 • Fax +49 (6227) 33-259...
-
Page 20: Data Sheets For Ultra-Sonic Sensor
H1 is lit Supply voltage H3 is lit: green Overfill signal H3 is lit: red Page 20 of 22 LINCOLN GmbH & Co. KG • Postfach 1263 • D-69183 Walldorf • Tel +49 (6227) 33-0 • Fax +49 (6227) 33-259... - Page 21 Sensing distance S2 Full Empty Overfull Full green green Empty green Rising level Falling level Page 21 of 22 LINCOLN GmbH & Co. KG • Postfach 1263 • D-69183 Walldorf • Tel +49 (6227) 33-0 • Fax +49 (6227) 33-259...
-
Page 22: Declaration Of Manufacturer
Electric equipment of machines Part 1: General requirements Walldorf, October 17, 2002 , Dr. Ing. Z. Paluncic Page 22 of 22 LINCOLN GmbH & Co. KG • Postfach 1263 • D-69183 Walldorf • Tel +49 (6227) 33-0 • Fax +49 (6227) 33-259...
