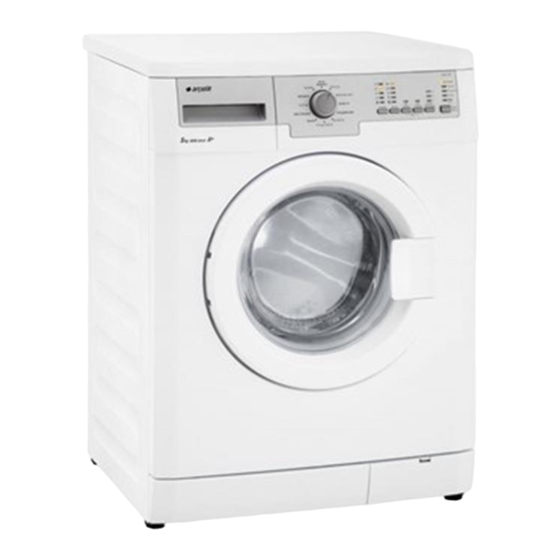

- Page 1 Washing Machine User's Manual 5083 FYE 5104 FYE...
- Page 2 Please read this user manual first! Dear Customer, We hope that you get the best results from the product which has been manufactured in state-of-the-art plants and passed through a strict quality control procedure. Therefore, please read the entire user manual carefully before using the product and keep it as a reference for future use.
-
Page 3: Table Of Contents
TABLE OF CONTENTS 1 Your washing machine Special programmes ....19 Temperature selection ... . . 19 Overview . -
Page 4: Your Washing Machine
Your washing machine Overview 1- Power cable 5- Adjustable feet 2- Top panel 6- Loading door 3- Control panel 7- Detergent drawer 4- Filter cap 8- Drain hose... -
Page 5: Technical Specifications
Technical specifications Models (EN) 5083 FYE 5104 FYE Maximum dry laundry capacity (kg) Height (cm) Width (cm) Depth (cm) Net weight (±4 kg.) 220-240 V / 50Hz Electrical input (V/Hz) Total current (A) 2000-2350 Total power (W) 1000 Spin speed (rpm max.) 1.35... -
Page 6: Important Safety Instructions
Important safety instructions • The water supply and draining hoses This section contains safety instructions must be securely fastened and remain that will help protect from risk of personal undamaged. Otherwise, there is the injury or property damage. Failure to risk of water leakage. -
Page 7: Children's Safety
Children's safety • Electrical products are dangerous for the children. Keep children away from the product when it is in use. Do not let them to tamper with the product. Use child lock to prevent children from intervening with the product. •... -
Page 8: Installation
Installation Refer to the nearest Authorised Service Removing packaging Agent for installation of the product. To reinforcement make the product ready for use, review Tilt the machine backwards to remove the information in the user manual and the packaging reinforcement. Remove the make sure that the electricity, tap water packaging reinforcement by pulling the supply and water drainage systems are... -
Page 9: Connecting Water Supply
3. Attach the plastic covers supplied in the User Manual bag into the holes on the rear panel. (P) Keep the transportation safety bolts in a safe place to reuse when the Ensure that the cold and hot water washing machine needs to be moved connections are made correctly when again in the future. -
Page 10: Adjusting The Feet
at most. • In case the hose is elevated after laying it on the floor level or close to the ground (less than 40 cm above the ground), water discharge becomes more difficult and the laundry may come out excessively wet. -
Page 11: First Use
install a 13 Amp fuse. Connect the green - yellow or green (earth) wire to the terminal in the plug • The specified voltage must be equal marked ‘E’ or with the symbol f or to your mains voltage. coloured green and yellow or green. •... -
Page 12: Disposing Of Packaging Material
II). If the anti-limescale is in tablet form, to dispose of your product. put only one tablet into compartment nr. For children's safety, cut the power II. Dry the inside of the bellow with a clean cable and break the locking mechanism piece of cloth after the programme has of the loading door so that it will be come to an end. -
Page 13: Preparation
Preparation Things to be done for energy saving Following information will help you use the product in an ecological and energy- Wash with sensitive, Washing water efficient manner. .short programmes temperature • Operate the product in the highest capacity allowed by the programme you have selected, but do not overload;... -
Page 14: Correct Load Capacity
and the washing programme desired. The machine automatically adjusts the amount of water according to the weight of the loaded laundry. Follow the information in the “Programme and consumption table”. When overloaded, machine’s washing performance will drop. Moreover, noise and vibration problems may occur. -
Page 15: Using Detergent And Softener
Using detergent and softener delicate clothes. • When washing dark coloured clothes Detergent Drawer and quilts, it is recommended to use The detergent drawer is composed of liquid detergent. three compartments: • Wash woolens with special detergent - (1) for prewash made specifically for woolens. - Page 16 tablet detergent between the laundry, close to the lower part of the drum in future washings. Use the tablet or gel detergent without selecting the prewash function. Using starch • Add liquid starch, powder starch or the dyestuff into the softener compartment as instructed on the package.
-
Page 17: Tips For Efficient Washing
Tips for efficient washing Clothes Light colours and Delicates/ Colors Dark colors whites Woolens/Silks (Recommended (Recommended (Recommended (Recommended temperature temperature temperature range temperature range range based range based based on soiling based on soiling level: on soiling level: on soiling level: level: 40-90C) cold-40C) cold-40C) -
Page 18: Operating The Product
Operating the product Control panel 1 - Programme Selection knob (Uppermost position On/Off) 2 - Programme Follow-up indicator 3 - Temperature Adjustment button 4 - Spin Speed adjustment button 5 - Auxiliary Function buttons 6 - Delayed Start button (in some models) 7 - Start / Pause button 40˚C- Blended laundry including... -
Page 19: Additional Programmes
• Hızlı+Günlük(Daily+Quick) underwear, etc.). Your laundry will be washed with vigorous washing action for Use this programme to quickly wash your a longer washing cycle. lightly soiled cotton clothes. • Sentetik (Synthetics) • Hızlı 14(Super short express) Use this programme to wash your Use this programme to quickly wash synthetic clothes (shirts, blouses, your little amount of lightly soiled cotton... -
Page 20: Spin Speed Selection
Spin speed selection Whenever a new programme is selected, the recommended spin speed of the selected programme is displayed on the spin speed indicator. To decrease the spin speed, press the Spin Speed Adjustment button. Spin speed decreases gradually. Then, depending on the model of the product, “Rinse Hold”... -
Page 21: Programme And Consumption Table
Programme and consumption table Auxiliary functions Selectable Programme temperature range °C Pamuklu 2.25 1600 • • • • • • • Cold-90 Pamuklu 1.45 1600 • • • • • • • Cold-90 Pamuklu 0.85 1600 • • • • •... -
Page 22: Auxiliary Function Selection
Auxiliary function selection one already made after the main wash. Thus, the risk for sensitive skins (babies, Use the following auxiliary functions allergic skins, etc.) to be effected by according to your daily needs. Select the minimal detergent remnants on the the desired auxiliary functions before laundry can be reduced. -
Page 23: Starting The Programme
Open the loading door, place the off. Once the Programme Selection laundry and put detergent, etc. Select knob is rotated or any button is the washing programme, temperature, pressed, indicator lights and indicators spin speed and, if required, the auxiliary will turn on again. -
Page 24: Progress Of Programme
when the machine resumes operating. Also, when the loading door is ready to be opened, Loading Door light will also Progress of programme illuminate continuously in addition to the Progress of a running programme programme step light. can be followed from the Programme Changing the speed and temperature Follow-up indicator. -
Page 25: Maintenance And Cleaning
Maintenance and cleaning Service life of the product extends and (compartment nr. II). If the anti-limescale frequently faced problems decrease if is in tablet form, put only one tablet into cleaned at regular intervals. compartment nr. II. Dry the inside of the bellow with a clean piece of cloth after the Cleaning the detergent drawer programme has come to an end. -
Page 26: Draining Remaining Water And Cleaning The Pump Filter
cleaned as they do get dirty. Temperature of the water inside the machine may rise up to 90 ºC. To avoid burning risk, filter must be cleaned after the water in the machine cools down. 2. Open the filter cap. If the filter cap is composed of two pieces, press the tab on the filter cap downwards and pull the piece out... - Page 27 while installing it into its housing. Seat the filter into its place completely. Otherwise, water may leak from the filter cap. 6. If the filter cap is composed of two pieces, close the filter cap by pressing on the tab. If it is one piece, seat the tabs in the lower part into their places first, and then press the upper part to a.
-
Page 28: Troubleshooting
Troubleshooting Programme cannot be started or selected. • Washing machine has switched to self protection mode due to a supply problem (line voltage, water pressure, etc.). >>> To cancel the programme, turn the Programme Selection knob to select another programme. Previous programme will be canceled. - Page 29 Loading door cannot be opened. • Door lock is activated because of the water level in the machine. >>> Drain the water by running the Pump or Spin programme. • Machine is heating up the water or it is at the spinning cycle. >>> Wait until the programme completes.
- Page 30 Machine does not switch to spinning step. • There might be an imbalance of laundry in the machine. >>> Automatic unbalanced load detection system might be activated due to the unbalanced distribution of the laundry in the drum. Machine does not switch to spinning step when the laundry is not evenly distributed in the drum to prevent any damage to the machine and to its surrounding environment.
- Page 31 Colour of the clothes faded. • Excessive laundry was loaded in. >>> Do not load the machine in excess. • Detergent in use is damp. >>> Keep detergents closed in an environment free of humidity and do not expose them to excessive temperatures. •...
- Page 32 Detergent residue in the detergent drawer. • Detergent is put in wet drawer. >>> Dry the detergent drawer before putting in detergent. • Detergent has gotten damp. >>> Keep detergents closed in an environment free of humidity and do not expose them to excessive temperatures. •...
- Page 33 Laundry remains wet at the end of the programme • Excessive foam might have occurred and automatic foam absorption system might have been activated due to too much detergent usage. >>> Use recommended amount of detergent. Machine does not switch to spinning step when the laundry is not evenly distributed in the drum to prevent any damage to the machine and to its surrounding environment.
