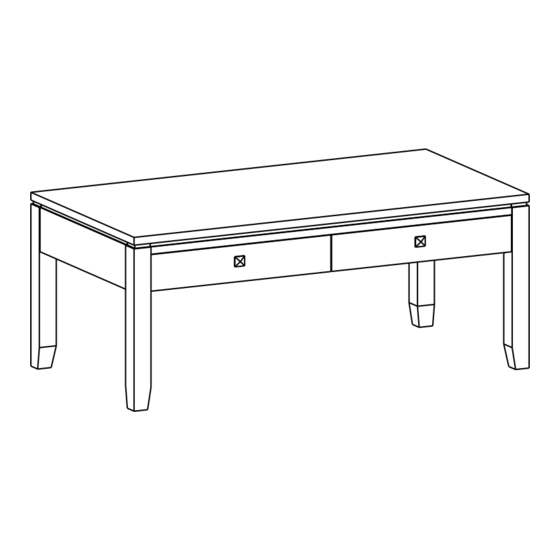

- Page 1 SIMP HOME L I F E B Y D E S I G N COSMOPOLITAN / CITY / ESSEX COFFEE TABLE MODEL # AXCRCOS01-MAH...
- Page 2 SIMP HOME L I F E B Y D E S I G N Questions, problems, assembly help, missing parts? No need to return the product, we will gladly help and ship your replacement parts free of charge Please call Customer Service at 1-866-518-0120 ext. 262 Monday to Friday between 9 am –...
-
Page 3: Safety Information
IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. SAFETY INFORMATION Identify all the parts and hardware. Do not discard of the packaging until you have checked that you have all of the parts and hardware required. Hardware package may have spare parts. -
Page 4: Care And Maintenance
IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. CARE and MAINTENANCE Perhaps the greatest environmental damage to wood furniture comes from wide swings in relative humidity (RH) in our homes. Wood absorbs and desorbs water as relative humidity rises and falls, and in doing so it swells and shrinks. -
Page 5: Pre-Assembly Information
PRE-ASSEMBLY INFORMATION MODEL # AXCRCOS01-MAH PARTS DESCRIPTION QTY 1 QTY 4 PRE-ASSEMBLY INFORMATION MODEL # AXCRCOS01-MAH HARDWARE DESCRIPTION ALLEN KEY BOLT: M6 X 70mm - QTY 8 LOCK WASHER: Ø10 / Ø6 X 1.5mm - QTY 8 WASHER: Ø16 / Ø6 X 1mm - QTY 8 ALLEN KEY QTY 8 SETS QTY 1... - Page 6 COMPONENTS – KEY DIAGRAM MODEL # AXCRCOS01-MAH...
- Page 7 ASSEMBLY MODEL # AXCRCOS01-MAH STEP 1 1. Attach Legs B to the Top A . 2. Use 8 Allen Key Bolts, 8 Lock Washers and 8 Washers 1 to fix part A and B . 3. Use Allen Key 2 to tighten allen key bolts. Do not over-tighten.
- Page 8 ASSEMBLY MODEL # AXCRCOS01-MAH STEP 2 NOTE: The screwdriver is not included in the hardware pack. 1. Attach 2 Handles 3 to part A . 2. Use Phillips Screwdriver to tighten screw. Do not over-tighten. STEP 3 Turn the wood lock ( on the bottom frame ) to be perpendicular to the frame for safety stop ( intended to keep the drawers from pulling all the way out ).
-
Page 9: Warranty
L I F E B Y D E S I G N WARRANTY Thank you for purchasing a Simpli Home – Wyndenhall – Brooklyn + Max product. These products have been made to demanding, high-quality standards and are guaranteed for domestic use against manufacturing faults for a period of 12 months from the date of purchase.
