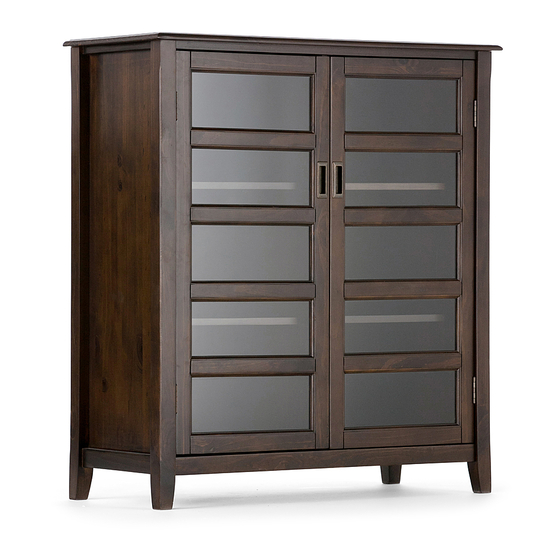

- Page 1 SIMP HOME L I F E B Y D E S I G N BURLINGTON / PORTLAND / BERKSHIRE MEDIUM STORAGE CABINET MODEL # AXCRBUR15-MAH 1/16...
- Page 2 SIMP HOME L I F E B Y D E S I G N Questions, problems, assembly help, missing parts? No need to return the product, we will gladly help and ship your replacement parts free of charge Please call Customer Service at 1-866-518-0120 ext. 262 Monday to Friday between 9 am –...
-
Page 3: Safety Information
IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. SAFETY INFORMATION CAUTION: Injuries and damage can occur from furniture tip over if product is not properly anchored to the wall. Use the Furniture Anti-Tipping Restraint provided with the product. -
Page 4: Care And Maintenance
IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. CARE and MAINTENANCE Perhaps the greatest environmental damage to wood furniture comes from wide swings in relative humidity (RH) in our homes. Wood absorbs and desorbs water as relative humidity rises and falls, and in doing so it swells and shrinks. -
Page 5: Pre-Assembly Information
PRE-ASSEMBLY INFORMATION MODEL # AXCRBUR15-MAH PARTS DESCRIPTION LEFT SIDE RIGHT SIDE QTY 1 QTY 1 QTY 1 CENTRE SUPPORT BOTTOM SHELF LEFT DOOR QTY 1 QTY 1 QTY 1 Warning Label RIGHT DOOR LEFT BACK PANEL RIGHT BACK PANEL CABINET SHELF QTY 1 QTY 1 QTY 1... - Page 6 PRE-ASSEMBLY INFORMATION MODEL # AXCRBUR15-MAH HARDWARE DESCRIPTION ALLEN KEY SCREW WOOD DOWEL M6 X 30 mm ALLEN KEY Ø8 X 30 mm QTY 18 QTY 1 QTY 4 PHILLIPS SCREW ROUND HEAD PHILLIPS SCREW M4 X 15 mm M3 X 12 mm SHELF SUPPORT QTY 24 QTY 12...
- Page 7 COMPONENTS – KEY DIAGRAM MODEL # AXCRBUR15-MAH 7/16...
- Page 8 ASSEMBLY MODEL # AXCRBUR15-MAH STEP 1 1. Insert four Dowels 2 into guide holes on Bottom Shelf C ( two dowels on each Side ). 2. Use rubber mallet to tap Dowels 2 into bottom of holes securely. 1/2 length of Dowels should be exposed.
- Page 9 ASSEMBLY MODEL # AXCRBUR15-MAH STEP 2 1. Attach Centre Support D to Bottom Shelf C using three Allen Key Screws 1 . 2. Use Allen key 3 to tighten. Do not over-tighten. Note: Prior to inserting Allen Key Screws 1 , ensure that the direction the holes for the Shelf Supports 6 on Centre Support D and the holes for the Shelf Supports 6 on the Side AL , AR are compatible.
- Page 10 ASSEMBLY MODEL # AXCRBUR15-MAH STEP 3 1. Attach Top B to Centre Support D and Side AL , AR using nine Allen Key Screws 1 ( three Screws on each part ). 2. Use Allen key 3 to tighten. Do not over-tighten. 10/16...
- Page 11 ASSEMBLY MODEL # AXCRBUR15-MAH STEP 4 Triangle ruler NOTE: The triangle ruler is not included in the hardware pack. Adjust the cabinet frame before assembling the back panels. STEP 5 Note: The back of the cabinet frame does not have pre-drilled holes to attach the back panels. Warning Label 1.
- Page 12 ASSEMBLY ASSEMBLY MODEL # AXCRBUR15-MAH MODEL # AXCRBUR15- STEP 6 First Step Last Step ( after adjust the door ) 1. Attach hinges on Doors EL , ER to Sides AL , AR using Phillips Screws 5 into pre-drill holes: - Using Phillips screwdriver to attach Screws 5 at middle hole of hinges for both top &...
- Page 13 ASSEMBLY MODEL # AXCRBUR15-MAH STEP 7 shelf level 1 shelf support anti - tipping shelf level 2 shelf level 3 1. Use four Shelf Supports 6 for each Shelf F in desired location . 2. Two Shelf Supports 6 may be used on back top of each Shelf F as a tipping restraint. 13/16...
- Page 14 FURNITURE TIP OVER RESTRAINT ASSEMBLY WARNING Serious or fatal crushing injuries can occur from furniture tip-over. If the furniture tip over restraint kit is not in the box, please contact our customer service department in order to obtain another kit before using the furniture. NOTE: The screwdriver is not STEP 8 included in the hardware pack.
- Page 15 FURNITURE TIP OVER RESTRAINT ASSEMBLY Furniture Tip Over Restraint Instructions: Attach one of the mounting brackets securely to the back edge of the furniture. Use the shorter screw. Determine where furniture is to be placed and mark location on the wall for mounting bracket screw hole approximately 2 inches below the bracket mounted to the furniture.
-
Page 16: Warranty
L I F E B Y D E S I G N WARRANTY Thank you for purchasing a Simpli Home – Wyndenhall – Brooklyn + Max product. These products have been made to demanding, high-quality standards and are guaranteed for domestic use against manufacturing faults for a period of 12 months from the date of purchase.
