Summary of Contents for Simpli Home WyndenHall brooklin+max AXCRAMH01-HIC

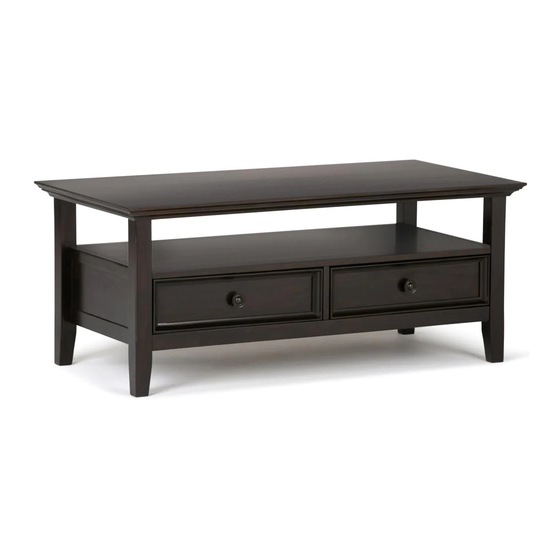

- Page 1 SIMP HOME L I F E B Y D E S I G N AMHERST / HALIFAX / WASHINGTON COFFEE TABLE MODEL # AXCRAMH01-HIC 1/14...
- Page 2 SIMP HOME L I F E B Y D E S I G N Questions, problems, assembly help, missing parts? No need to return the product, we will gladly help and ship your replacement parts free of charge Please call Customer Service at 1-866-518-0120 ext. 262 Monday to Friday between 9 am –...
-
Page 3: Safety Information
IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. SAFETY INFORMATION Identify all the parts and hardware. Do not discard of the packaging until you have checked that you have all of the parts and hardware required. Hardware package may have spare parts. -
Page 4: Care And Maintenance
IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. CARE and MAINTENANCE Perhaps the greatest environmental damage to wood furniture comes from wide swings in relative humidity (RH) in our homes. Wood absorbs and desorbs water as relative humidity rises and falls, and in doing so it swells and shrinks. -
Page 5: Pre-Assembly Information
MODEL # AXCRAMH01-HIC PRE-ASSEMBLY INFORMATION PARTS DESCRIPTION LEFT SIDE RIGHT SIDE QTY 1 QTY 1 QTY 1 BOTTOM FRAME TOP SHELF DRAWER FRONT QTY 1 QTY 1 QTY 2 LEFT DRAWER SIDE RIGHT DRAWER SIDE DRAWER BACK QTY 2 QTY 2 QTY 2 BACK PANEL DRAWER BOTTOM... -
Page 6: Hardware Description
PRE-ASSEMBLY INFORMATION MODEL # AXCRAMH01-HIC HARDWARE DESCRIPTION ALLEN KEY SCREW CAM LOCK PIN ALLEN KEY M6 X 30 mm CAM LOCK QTY 1 QTY 23 QTY 21 SETS Required - Flathead screwdriver PHILLIPS SCREW HANDLE Phillips screwdriver M4 X 30 mm M4 X 25 mm Not Included QTY 2... - Page 7 COMPONENTS – KEY DIAGRAM MODEL # AXCRAMH01-HIC 7/14...
- Page 8 ASSEMBLY MODEL # AXCRAMH01-HIC STEP 1 1. Attach 4 Cam Lock Pins 2 into pre-drilled holes at the back of Drawer Front E . 2. Align Cam Lock Pins with Drawer Sides’s guide holes before attach the Cam Lock Pins into Drawer Sides FL , FR . 3.
- Page 9 ASSEMBLY MODEL # AXCRAMH01-HIC STEP 3 1. Align Drawer Back G with Drawer Bottom H and press firmly into slot . 2. Attach back using 2 Allen Key Screws 1 through guide holes on each side. 3. Use Allen Key 3 to tighten. Do not over tighten. STEP 4 NOTE: The screwdriver is not included in the hardware pack.
- Page 10 ASSEMBLY MODEL # AXCRAMH01-HIC STEP 5 1. Attach 3 Cam Lock Pins 2 into pre-drilled holes at bottom of Top Shelf D . 2. Align Cam Lock Pins with guide holes on Divider J . 3. Insert 3 Cam Locks 2 into guide holes on Divider J . 4.
- Page 11 ASSEMBLY MODEL # AXCRAMH01-HIC STEP 6 1. Attach 5 Cam Lock Pins 2 into pre-drilled holes on each Side AL , AR . 2. Align Cam Lock Pins with guide holes on Top Shelf D and Back Panel I . 3.
- Page 12 ASSEMBLY MODEL # AXCRAMH01-HIC STEP 7 1. Insert 6 Allen Key Screws 1 into guide holes on Sides AL , AR into Top B ( 3 Screws / each Side ). 2. Use Allen Key 3 to tighten. Do not over tighten . 3.
- Page 13 ASSEMBLY MODEL # AXCRAMH01-HIC STEP 8 1. Use a Phillips screwdriver to attach Handles 5 to Back I . STEP 9 1. Insert assembled drawers into glides on assembled table. 13/14...
-
Page 14: Warranty
L I F E B Y D E S I G N WARRANTY Thank you for purchasing a Simpli Home – Wyndenhall – Brooklyn + Max product. These products have been made to demanding, high-quality standards and are guaranteed for domestic use against manufacturing faults for a period of 12 months from the date of purchase.
