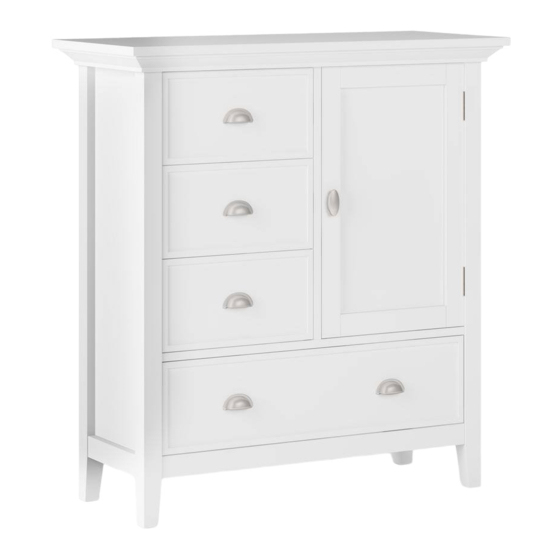

- Page 1 S IMP HOME ® REDMOND / MANSFIELD / STANWICK MEDIUM STORAGE CABINET MODEL # AXCRED15-WH 1/22...
- Page 2 S IMP HOME ® Questions, problems, assembly help, missing parts? No need to return the product, we will gladly help and ship your replacement parts free of charge Please call Customer Service at 1-866-518-0120 ext. 262 Monday to Friday between 9 am –4 pm EST or go to www.simpli-home.com/parts request In order to assist you in a timely manner, please have the following...
-
Page 3: Safety Information
IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. SAFETY INFORMATION CAUTION: Injuries and damage can occur from furniture tip over if product is not properly anchored to the wall. Use the Furniture Anti-Tipping Restraint provided with the product. -
Page 4: Care And Maintenance
IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. CARE and MAINTENANCE Perhaps the greatest environmental damage to wood furniture comes from wide swings in relative humidity (RH) in our homes. Wood absorbs and desorbs water as relative humidity rises and falls, and in doing so it swells and shrinks. -
Page 5: Pre-Assembly Information
PRE-ASSEMBLY INFORMATION MODEL # AXCRED15-WH PART DESCRIPTION RIGHT SIDE LEFT SIDE QTY 1 QTY 1 QTY 1 BOTTOM DIVIDER DOOR QTY 1 QTY 1 QTY 1 Warning Label CABINET SHELF LEFT BACK PANEL RIGHT BACK PANEL QTY 1 QTY 1... - Page 6 PRE-ASSEMBLY INFORMATION MODEL # AXCRED15-WH PART DESCRIPTION TOP SHELF LARGE DRAWER FRONT SMALL DRAWER FRONT QTY 1 QTY 1 QTY 3 SMALL DRAWER BACK LEFT DRAWER SIDE RIGHT DRAWER SIDE QTY 3 QTY 4 QTY 4 LARGE DRAWER BACK SMALL DRAWER BOTTOM...
- Page 7 PRE-ASSEMBLY INFORMATION MODEL # AXCRED15-WH HARDWARE DESCRIPTION ALLEN KEY SCREW M6 X 30mm ALLEN KEY SHELF SUPPORT QTY 34 QTY 1 QTY 6 PHILLIPS SCREW PHILLIPS SCREW PHILLIPS SCREW ROUND HEAD M3 X 12mm M3 X 15mm M4 X 15mm...
- Page 8 COMPONENTS-KEY DIAGRAM MODEL # AXCRED15-WH 8/22...
- Page 9 ASSEMBLY MODEL # AXCRED15-WH STEP-1 1. Attach four Cam Lock Pins 9 to back of Small Drawer Front I . 2. Align Cam Lock Pins with pre-drilled holes and attach Drawer Sides KL , KR . 3. Insert two Cam Lock 9 into pre-drilled holes on each Drawer Side KL , KR .
- Page 10 ASSEMBLY MODEL # AXCRED15-WH STEP-3 1. Align Small Drawer Back L with Small Drawer Bottom N and press firmly into slot. 2. Attach Small Drawer Back L using two Allen Key Screws 1 through pre-drilled holes on each Side KL , KR .
- Page 11 ASSEMBLY MODEL # AXCRED15-WH STEP-5 1. Attach five Cam Lock Pins 9 to back of Large Drawer Front J . 2. Align Cam Lock Pins with pre-drilled holes and attach Drawer Sides KL , KR . 3. Insert two Cam Lock 9 into pre-drilled holes on each Drawer Side KL , KR .
- Page 12 ASSEMBLY MODEL # AXCRED15-WH STEP-7 NOTE: The screwdriver is not included in the hardware pack. 1. Align Cam Lock Pins with pre-drilled holes and attach Drawer Bottom Support P . 2. Insert one Cam Lock 9 into pre-drilled holes on Drawer Bottom Support P .
- Page 13 ASSEMBLY MODEL # AXCRED15-WH STEP-8 NOTE: The screwdriver is not included in the hardware pack. 1. Use phillips screwdriver to attach two Handles 10 to Large Drawer Front J . 13/22...
- Page 14 ASSEMBLY MODEL # AXCRED15-WH STEP-9 1. Attach Divider D to Top Shelf H using three Allen Key Screws 1 . 2. Use Allen Key 2 to tighten. Do not over-tighten. STEP-10 1. Attach three Cam Lock Pins 9 to back of Left Side A 2.
- Page 15 ASSEMBLY MODEL # AXCRED15-WH STEP-11 1. Repeat Step-10 for The Right Side A 15/22...
- Page 16 ASSEMBLY MODEL # AXCRED15-WH STEP-12 1. Attach Top B to Side A and Divider D using nine Allen Key Screws 1 (three screws on each Side and Divider). 2. Use Allen Key 2 to tighten screws. Do not over-tighten. 16/22...
- Page 17 ASSEMBLY MODEL # AXCRED15-WH STEP-13 NOTE: The screwdriver is not included in the hardware pack. Note: Warning Label 1. Attach Back Panels GL , GR to back frame of cabinet using nineteen Phillips Screws Round Head 6 through pre-drilled holes.
- Page 18 ASSEMBLY MODEL # AXCRED15-WH STEP-14 NOTE: The screwdriver is not included in the hardware pack. 1. Attach hinges on Door E to Rihgt Side A using Phillips Screws 4 into guide holes. 2. Attach Magnet Plates 7 to bottom corner of Door E using Phillips Screws 5 into guide holes on Door E .
- Page 19 ASSEMBLY MODEL # AXCRED15-WH STEP-15 1. Use four Shelf Supports 3 for each Cabinet Shelf F in desired location. 2. Two Shelf Supports 3 may be used on back top of each Cabinet Shelf F as a tipping restraint. 3. Insert assembled drawer into glides on assembled medium storage.
- Page 20 FURNITURE TIP OVER RESTRAINT ASSEMBLY WARNING Serious or fatal crushing injuries can occur from furniture tip-over. If the furniture tip over restraint kit is not in the box, please contact our customer service department in order to obtain another kit before using the furniture. NOTE: The screwdriver is not STEP-16 included in the hardware pack.
- Page 21 FURNITURE TIP OVER RESTRAINT ASSEMBLY Furniture Tip Over Restraint Instructions: Attach one of the mounting brackets securely to the back edge of the furniture. Use the shorter screw. Determine where furniture is to be placed and mark location on the wall for mounting bracket screw hole approximately 2 inches below the bracket mounted to the furniture.
-
Page 22: Warranty
S IMP HOME ® WARRANTY Thank you for purchasing a Simpli Home – Wyndenhall – Brooklyn + Max product. These products have been made to demanding, high-quality standards and are guaranteed for domestic use against manufacturing faults for a period of 12 months from the date of purchase. This warranty does not affect your statutory rights.
