Unitech PA768 Quick Start Manual

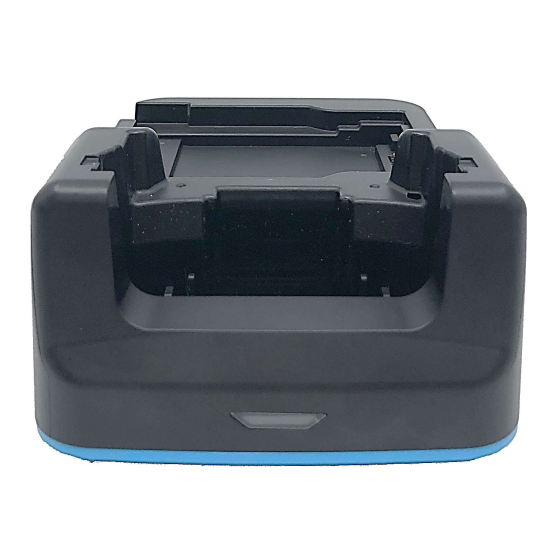

PA768 Single Slot Cradle
Quick Start Guide

How to Use PA768 Single Slot Cradle

There are two options to charge PA768 terminal:
1. Charge PA768 with bumper, hand strap or
gun grip.
2. Charge PA768 without bumper after installing
the detachable cover.

How to Remove the Detachable Cover

Grab the two edges on top of the detachable
cover and bent inward, then hold and pull up
the cover to remove it.

Package

Please make sure the following contents are in the
PA768 single slot cradle gift box.
If something is missing or damaged, please contact
your Unitech representative.
The Package Contents
• PA768 Single Slot Cradle
• Detachable cover for PA768 without bumper
• 5V/6A <3-pin> power supply
Optional Accessories
• 3-Pin Power Cord (UK) (PN#1550-602689G)
• Power Cord (EU) (PN#1550-602333G)
• Power Cord(US) (PN#1010-601551G)
V1.1

How to Install the Detachable Part

Insert the detachable cover into the cradle until you
hear a click sound.
WARNING!
There is a risk of fire and burns if the battery is handled improperly.
DO NOT disassemble, crush, puncture, short external contacts,
or dispose the battery pack in fire or water.
DO NOT attempt to open or service the battery.
Dispose used batteries according to local recycling guidelines in your area.
CAUTION!
To ensure the unit working properly, please keep all connectors away
from the contaminants such as dust, grease, mud, and water.
Negligence may cause the unit to lose communication, short circuit, or
overheated. If the connector is damaged, please ensure the connector
is fully repaired before using the unit to avoid short circuiting.
