Unitech EA320 Quick Start Manual

How to use the gun grip
Step 1 : Push up /down the release buttons on the both
sides to unlock / lock the terminal on the gun grip.
Notice : Please remove the hand strap on EA320 before
using the gun grip.
Release button up
(unlock position)
Release button down
(lock position)
How to use the gun grip
Step 2 : Push up the release buttons to unlock position
and then slide the terminal into the gun grip.
Push down the release buttons to lock position.
EA320 Gun Grip / Charging Cradle

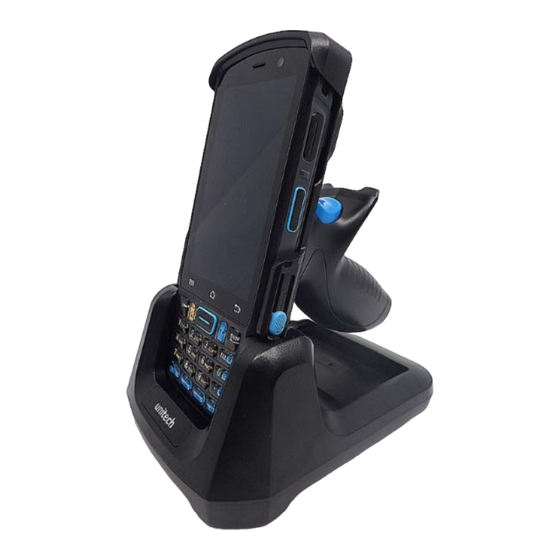

How to use the charging cradle
￭
When the battery is charging :
Connect to the power : Logo light is on.
Battery Charging : Red light is on.
Battery Fully Charged :Green light is on.
Fully Charged
Quick Start Guide
V1.0
Charging
